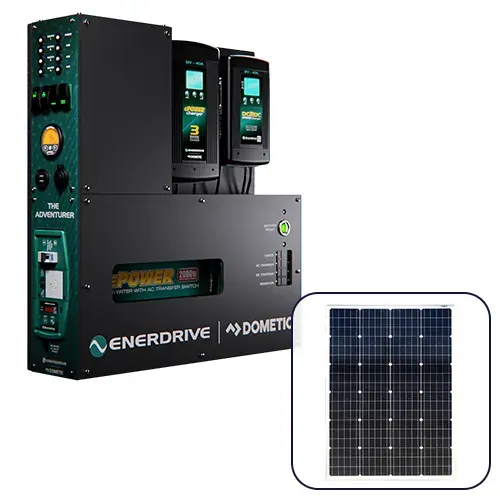

Enerdrive 4WD Canopy Adventurer System with ePRO Plus Battery Monitor, Driver Side Installation

Description

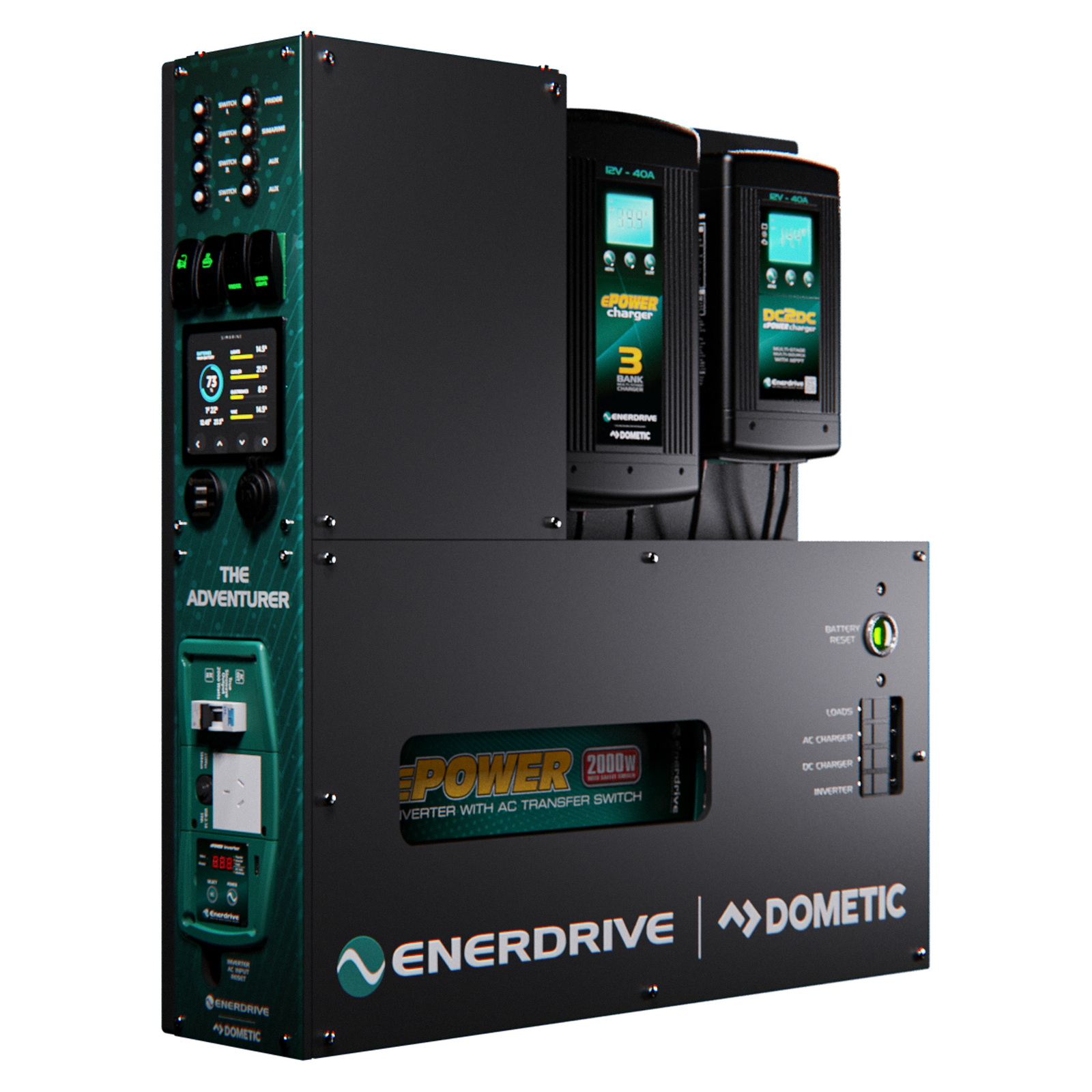

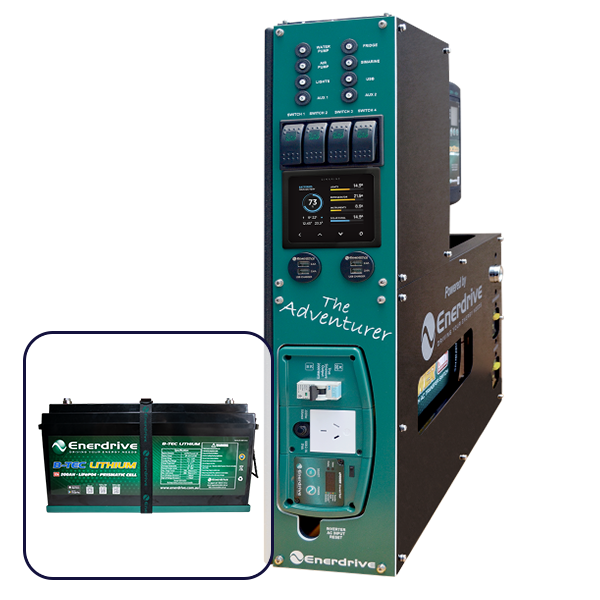

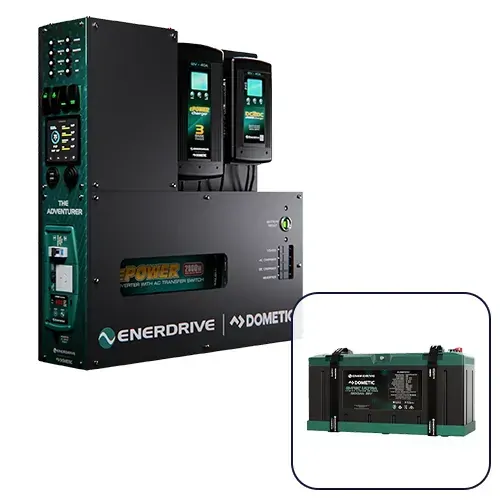

Enerdrive 4WD Canopy Adventurer System with 40A DC2DC + 40A AC Charger, With Lithium Battery Add On Option

Currently included FREE is a Enerdrive 150W Mono Crystalline Squat Fixed Solar Panel

Enerdrive have created three compact power solutions to operate all of the electrical equipment that is located in 4WD canopies, including a simple fridge or lights setup to a full on power station. There are three models in this range: The Explorer, The Traveller and The Adventurer, all of which can be paired with any brand or model of battery including Wet Sealed, AGM, Gel and Lithium!

All systems are pre-wired by Enerdrive where possible so the only cabling required at installation time is load outputs, battery connection, & vehicle/solar/tank inputs All systems are built into a unique compact box arrangement and designed to mount on either the front or rear bulkheads of the vehicles canopy.

The systems are available in either passenger side or drivers side installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium. Enerdrive are proud to bring to market this innovative design that can be installed by the canopy manufacturer or end user in a neat one piece installation.

The Enerdrive power systems now come with a Battery Cable with in line fuse for easy connection to your battery. This cable will be hardwired to the system as part of production.

Power system included Battery Cable Specifications:

• Explorer and Traveller System - 1m positive and negative cable (35mm2) with 100A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
• Adventurer System - 1m positive and negative cable (70mm2) with 250A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.

Included:

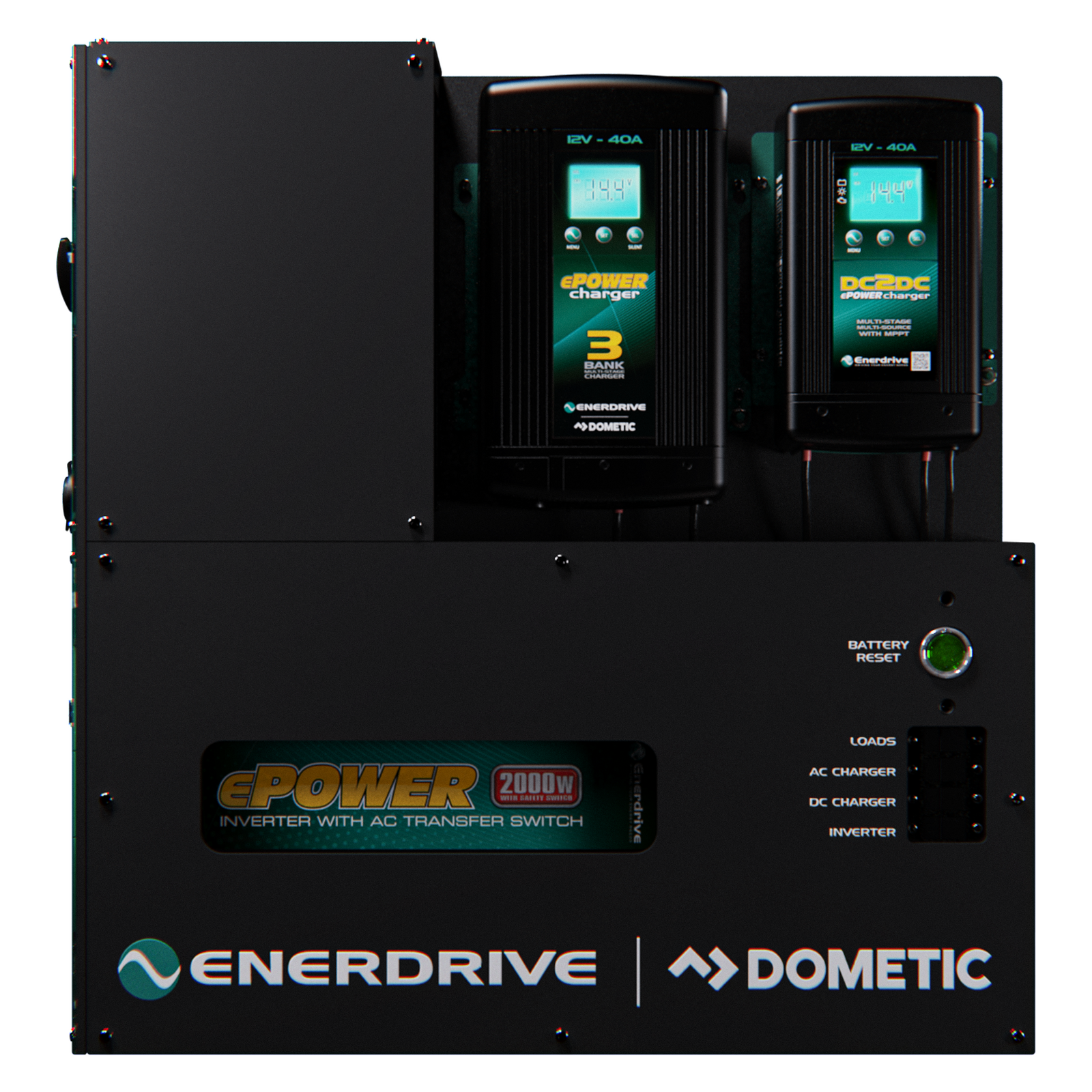

• Enerdrive ePOWER 12V 40A DC to DC Battery Charger - EN3DC40+

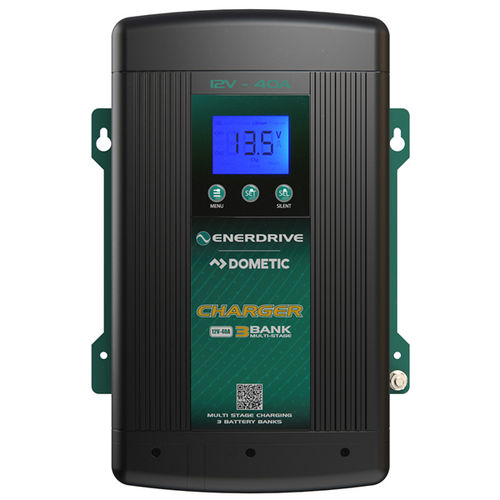

• Enerdrive ePOWER 12V 40A Battery Charger - EN31240

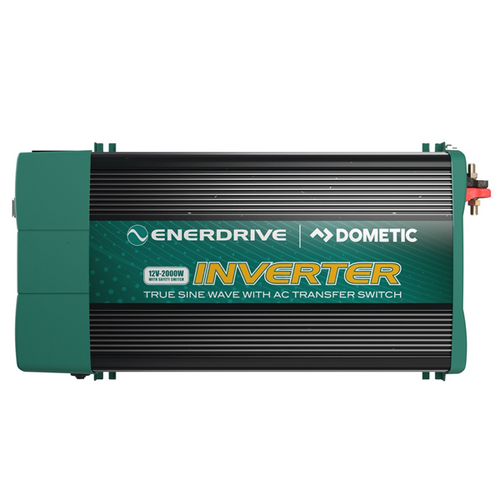

• Enerdrive ePOWER 2000W AC Transfer Inverter - EN1120S-X

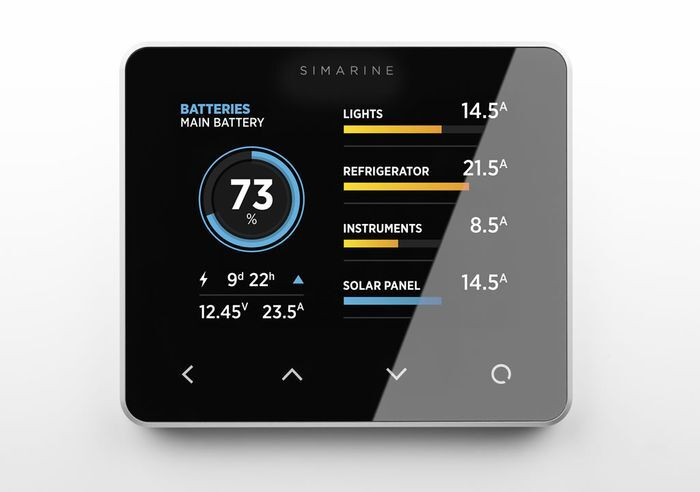

• 1 x Battery Monitor (customer has the choice between an ePRO PLUS Battery Monitor - EN55050, Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module) MYG-SI-1
• 1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse
• 4x Pre-wired Circuit Breakers for main power equipment

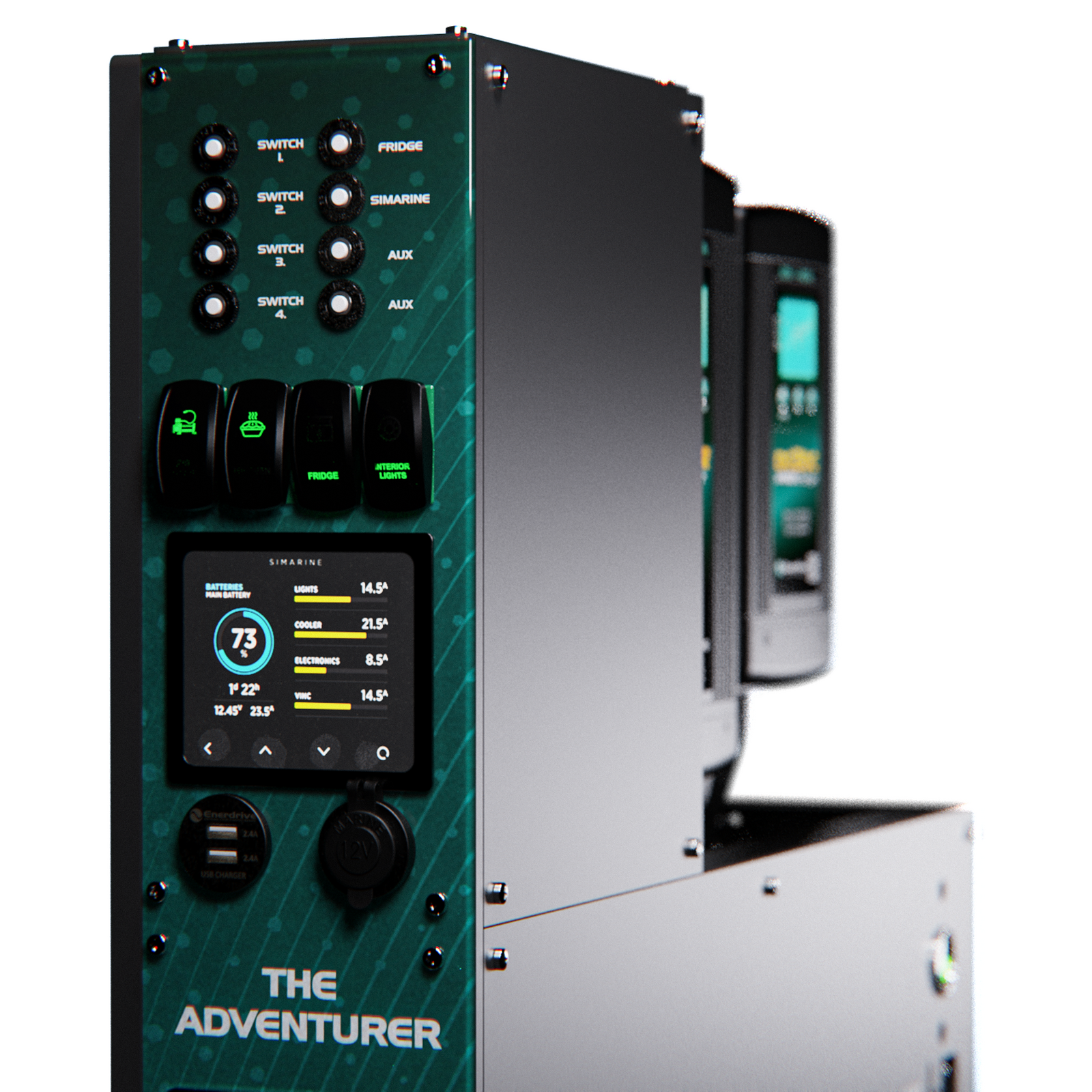

• 4 x Contura switches for Lights & Auxiliary loads
• 4 x additional Circuits Breakers for Air/Water Pumps and more

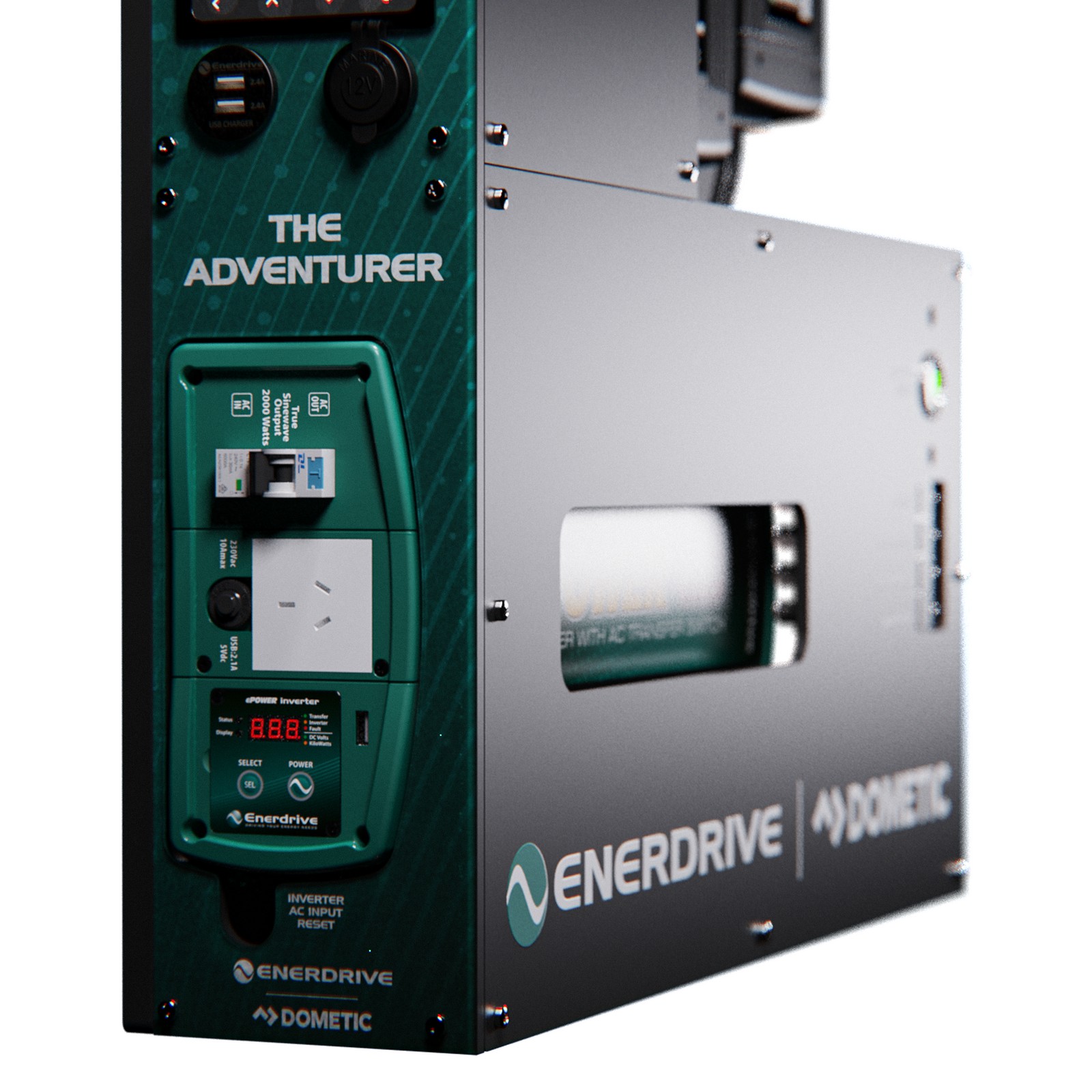

• Main System & Inverter Hi-Amp Circuit Breakers

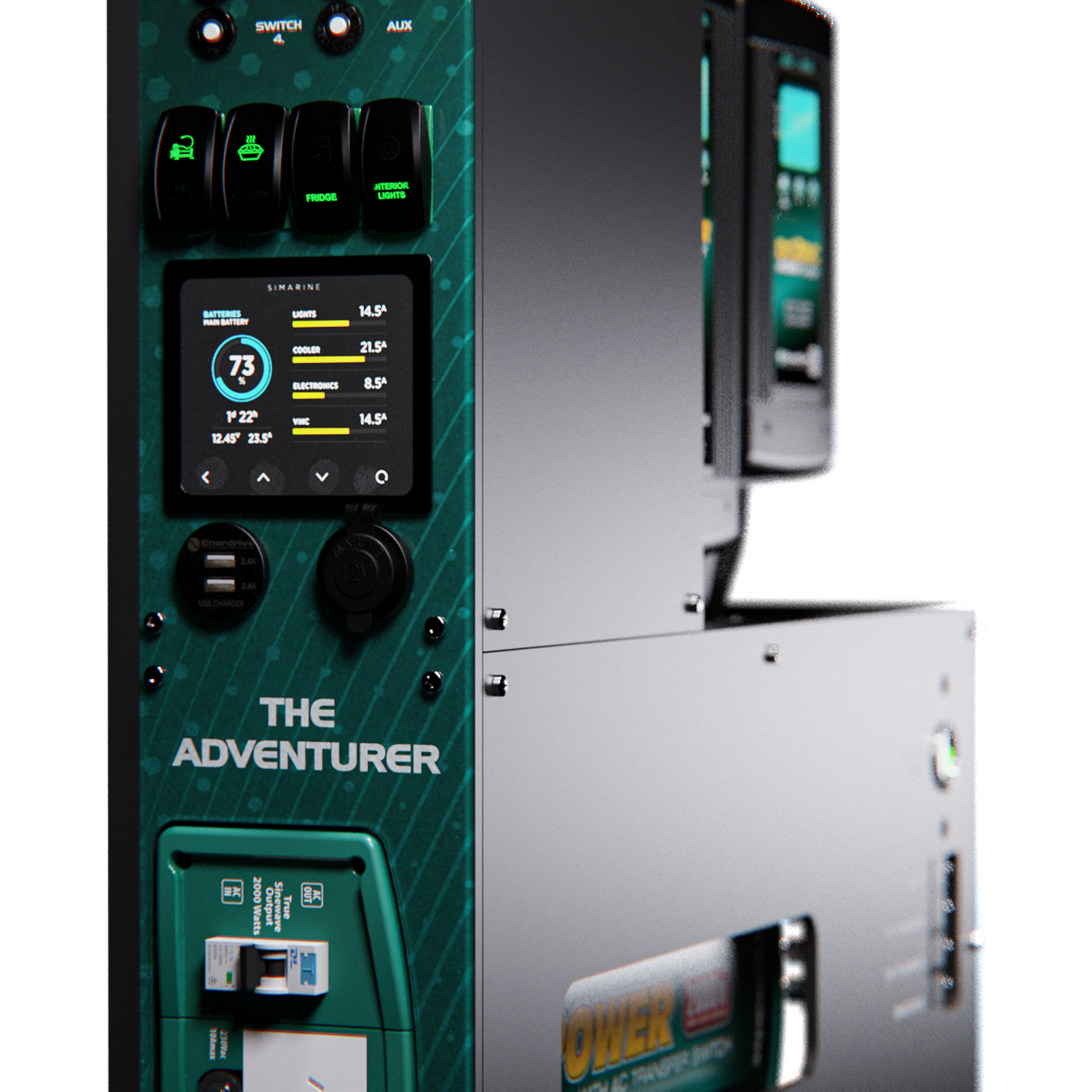

• 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
• Customers can choose between two colours for the front switch panel of the system. Green or Black. Please specify this special instruction at time of your order.
• Battery Reset button for kick starting your flat battery from the DC2DC Charger
• Optional Water/Fuel Tank module also available. (K-ADVENTURER-02 & 03)

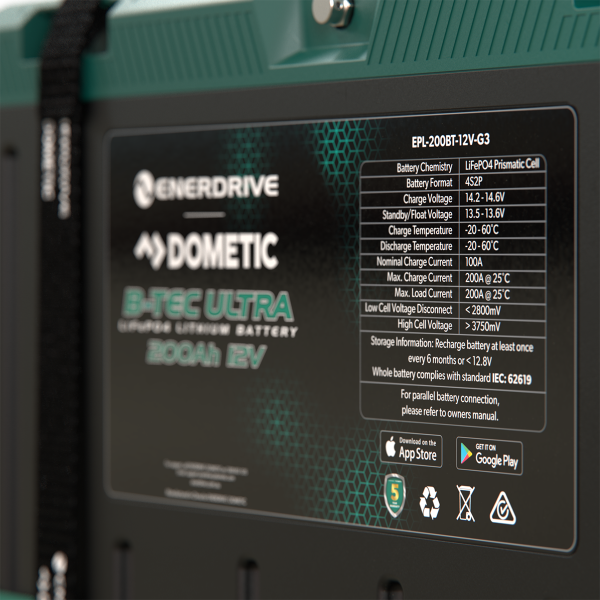

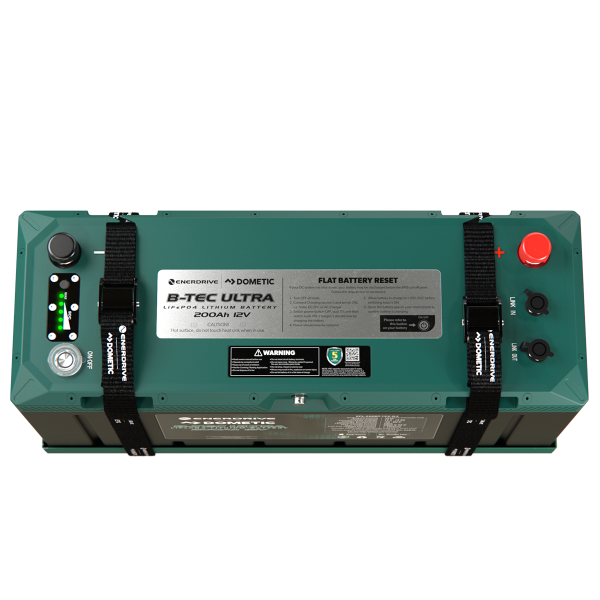

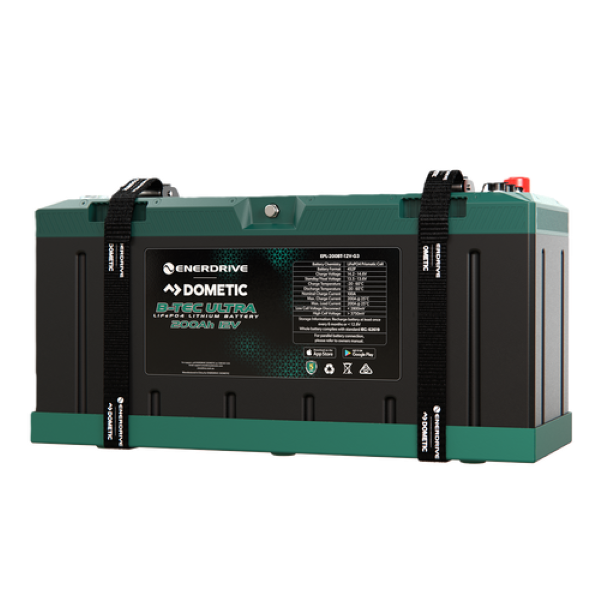

*Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
