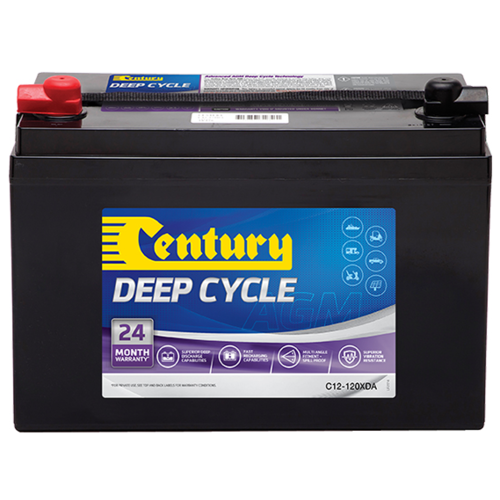

Century 12V 120Ah AGM Deep Cycle Battery, C12-120XDA
SKU: C12-120XDA Learn More»
Description
Century 12V 120Ah AGM Deep Cycle Battery, C12-120XDA
Century AGM Deep Cycle Batteries are the ultimate in deep cycle battery performance, designed to provide longer life and dependable deep cycling capability in the harshest of operating conditions and environments.
The Century Deep Cycle AGM range utilises Absorbed Glass Mat (AGM) technology which absorbs the liquid electrolyte within highly porous glass fibre mat separators. This eliminates loose electrolyte whilst the sealed maintenance free design prevents acid leaks and the need for on-going maintenance. Extra strong grid designs, superior active paste material and robust internal components ensure lower self discharge, superior vibration resistance, longer cycle life and improved recharge capabilities.
Century Deep Cycle AGM batteries are ideal for use in applications where fast recharge, and superior deep cycle capabilities are required, such as recreational vehicles and accessories, dual battery systems, golf carts, electric wheel chairs, mobility scooters and marine systems.
Features:
- Spill proof - ideal for 90° side mount applications
- Fast recharging capabilities and long cycle life
- Maintenance free design
Specifications:
- Cells: 6
- Voltage: 12
- Capacity: 120Ah@20hr-rate to 1.75v per cell @ 25°C
- Operating Temperature Range: Discharge: 20°C - 60°C | Charge: 0°C - 50°C | Storage: -20°C - 60°C
- Normal Operating Temperature Range: 25°C ± 5°C
- Float Charging Voltage: 13.6 to 13.8 VDC/unit Average at 25°C
- Self Discharge: Century AGM batteries can be stored for more that 6 months at 25°C. Self-discharge rate less than 3% per month at 25°C. Please charge batteries before using.
- Weight: Approx. 32.0 kg
- Max. Discharge Current: 1200A (5 sec)
- Internal Resistance: Approx. 4mΩ
- Terminal: M8 Insert
- Container Material: A.B.S. (UL94-HB)
- Recommended Max. Charging - Current Limit: 36A
- Equalisation & Cycle Service: 14.6 to 14.8VDC/unit Average at 25°C
- Dimensions (L x W x H x TH): 328mm x 172mm x 222mm x 222mm
Note: Warranty void if mounted bonnet
.png)
Specifications
SKU C12-120XDA
Brand Century
GTIN 9313857331212
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 120
Battery Length (mm) 328
Battery Width (mm) 172
Battery Height (mm) 222
Battery Weight (kg) 32
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
