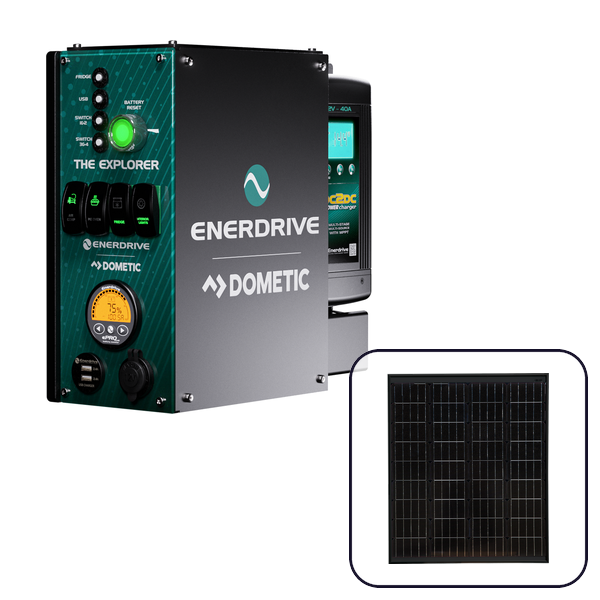

Enerdrive 4WD Canopy Explorer System with ePRO Plus Battery Monitor, Driver Side Installation
SKU: K-EXPLORER Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Description
Enerdrive 4WD Canopy Explorer System with 40A DC2DC Charger, With Lithium Battery Add On Option
Currently included FREE is an Enerdrive 16mm Cable Kit (Inc 70A Fuse) Start Battery to DC to DC Charger (Vehicle Mounted), 5 Metres
.png)
Enerdrive have created three compact power solutions to operate all of the electrical equipment that is located in 4WD canopies, including a simple fridge or lights setup to a full on power station. There are three models in this range: The Explorer, The Traveller and The Adventurer, all of which can be paired with any brand or model of battery including Wet Sealed, AGM, Gel and Lithium!
All systems are pre-wired by Enerdrive where possible so the only cabling required at installation time is load outputs, battery connection, & vehicle/solar/tank inputs. All systems are built into a unique compact box arrangement and designed to mount on either the front or rear bulkheads of the vehicles canopy.
The systems are available in either passenger side, drivers side or roof mount installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium. Enerdrive are proud to bring to market this innovative design that can be installed by the canopy manufacturer or end user in a neat one piece installation.
The Enerdrive power systems now come with a Battery Cable with in line fuse for easy connection to your battery. This cable will be hardwired to the system as part of production.
Power system included Battery Cable Specifications:
- Explorer and Traveller System - 1m positive and negative cable (35mm2) with 100A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
- Adventurer System - 1m positive and negative cable (70mm2) with 250A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
Included :
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger - EN3DC40+
- 1 x Battery Monitor (customer has the choice between an ePRO PLUS Battery Monitor - EN55050, Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module) MYG-SI-1
- 4x Pre-wired Circuit Breakers for main power equipment
- 4 x Contura switches for Lights & Auxiliary loads
- Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse
- 1 x Fridge 50A Anderson Plug connection
- 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
- Customers can choose between two colours for the front switch panel of the system. Green or Black. Please specify this special instruction at time of your order.
- Battery Reset button for kick starting your flat battery from the DC2DC Charger
Installation Options: Passenger Side, Driver Side or Roof Mount (NOTE: This is demonstration models ONLY)
.png)
Wiring Diagram - ePRO PLUS Battery Monitor
Wiring Diagram - Simarine Battery Monitoring
Wiring Diagram - Simarine & Quad Shunt module
|
Items Included |
The Explorer |
|---|---|
|
ePOWER DC2DC 40+ Charger (Vehicle/Solar) |
* |
|
ePRO Plus Battery Monitor |
K-EXPLORER-01 |
|
Simarine LCD Battery WIFI Monitoring System |
K-EXPLORER-02 K-EXPLORER-03 |
|
4x Pre-Wired Circuit Breakers for Main Power Equipment |
* |
|
4 x Contura Switches |
* |
|
Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse |
* |
|
Pre-wired Fridge 50A Anderson Plug connection |
* |
|
Twin USB 2.4A Hi Amp Sockets |
* |
|
Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order) |
Optional |
|
Battery Reset Button |
* |
|
Individual Load/Charge Module for Simarine. (#SI-SCQ50) |
K-EXPLORER-03 |
|
Water/Fuel Tank Module for Simarine. (#SI-ST107) |
K-EXPLORER-02 (Optional) K-EXPLORER-03 (Optional) |
|
Dimensions |
440L x 155W x 330Hmm |
|
Weight |
7kg |
| (*) Indicates Standard Fitment | |
*Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
Specifications
SKU K-EXPLORER
Brand Enerdrive
GTIN 9342616029527
Product Category Power Systems
Voltage 12V
Dimensions (L x W x H) 455 x 155 x 330 mm
Weight (kg) 7
NOTE: see full product specifications & further product info in the Description section on this page.
