Renogy 12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
SKU: RBT12100LFP Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

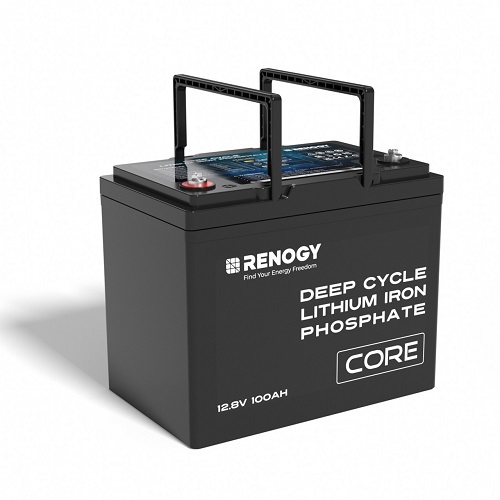

Renogy 12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.
With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.
Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.
Features:
- One-Stop Upgrade Solutions: Get solar panels, solar charge controllers, inverters, and accessories while upgrading from lead-acid batteries here at Renogy. No more worries about compatibility between each component. Have your system built up easier & faster in one go.
- Max. 6% More Capacity: Renogy 12V 100Ah Core Series Battery provides max. 6% more power compared with the rated capacity, ramping the usable capacity up to 106Ah.
- Versatile & Seamless Connection: Set up your system in the way you want, be it series, parallel, or series-parallel connection. Expandable up to 16 in series-parallel for maximum power up to 20.48kWh (4P4S, 51.2V 400Ah).
- True All-Round BMS Protection: Built-in with a reliable 100A battery management system (BMS) for regulating high discharge current of up to 100A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
- Responsive Customer Support: Whether you need help with sizing, installation tips, or any other support, we strive to have you covered with timely assistance in 24 hours. The Renogy 12V 100Ah Core Series Battery comes with a 5-year limited warranty.
Specifications:
- Rated Capacity (0.5C, 25°C): 100 Ah
- Operation Temperature Range Charge: 0°C to 55°C
- Nominal Voltage: 12.8 V
- Operation Temperature Range Discharge: -20°C to 60°C
- Energy: 1280Wh
- Storage Temperature Range: -25°C to 65°C
- Cycle Life(0.5C/1C, 25℃): 5000 Cycles (80% DOD 80% EOL)Operation Relative Humidity: 10% to 95%
- Charge Voltage 14.4 V
- Protection Rating: IP65
- Maximum Continuous Charge Current: 100 A
- Dimension (L x W x H): 260 x 169 x 211 mm
- Weight: 10.5 kg
.png)
Specifications
SKU RBT12100LFP
Brand Renogy
GTIN 00840315209794
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 260
Battery Width (mm) 169
Battery Height (mm) 211
Battery Weight (kg) 10.5
-Weight 10.5kg
Protection Rating IP65
Cycle Life(0.5C/1C, 25℃): 5000 Cycles (80% DOD 80% 10% to 95%
Storage Temperature Range -25°C to 65°C
Energy 1280Wh
Operation Temperature Range Discharge -20°C to 60°C
Operation Temperature Range Charge 0°C to 55°C
Rated Capacity (0.5C, 25°C): 100 Ah
Maximum Continuous Charge Current 100 A
Charge Voltage 14.4V
Nominal Voltage 12.8 V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Does this battery include a battery tray?
Unfortunately it does not include a battery tray, however Renogy recommend installing with a battery tray for stability.
-
Will this LiFePO4 battery work with my four Renogy 100W 12V solar panels, or is it too much power?
Absolutely, however you won't be able to connect the panels directly to the battery. You will need a suitable solar regulator between the panels and the battery.
-
Can these batteries be used in a 48v system?
Yes, you can wire Renogy 12V Core Series Batteries in series to increase voltage for a 24V, 36V, or 48V off-grid power system. Alternatively, you can wire sets of batteries in parallel to get a maximum power of 40.96kWh.
-
What is the maximum number of Renogy 12V 100Ah Core Series Batteries I can connect?
Up to four batteries can be connected in series, eight in parallel, or sixteen in series-parallel configuration. It is necessary to use batteries with a matching type and capacity.
-
What is the lifespan of this battery?
These batteries can produce 5000 cycles with a suggested 80% depth of discharge (DOD).
-
Can I use a Bluetooth module with this battery?
No. The Bluetooth module is not compatible with this battery. To monitor battery status, utilise a 500A Battery Monitor With Shunt.
-
How should I maintain my batteries?
Whilst you're not travelling best practice would be with an AC charger or Solar. While travelling Solar and a DC charger will be the best options.
Reviews
Good Product, awesome Customer Service!
By: anonymous31 May 2024
Early days but so far so good with the 3 x Renogy batteries, haven't had much opportunity to use them just yet. Liking the weight saving 3 x AGMs replaced with 3 x lithium batteries saving 65KG in the Austrack Van! BUT the biggest plus was the Customer Service I received - it was awesome. Renogy in their wisdom (product ships direct) wouldn't ship to my poscode but with some work at my end and work and pateince from Caravan RV Camping (thanks Daniel) we managed to work out that it was possible to ship to the nearest freight depot - just 10km from home! So batteries were duly shipped and now installed. Also noteworthy - cheaper to buy here than through Renogy direct, go figure...
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
Delivery
- We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
- Small Items are sent with Australia Post via regular post.
- Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
- Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
- Items are fully insured during the freight process.
- Unfortunately we cannot deliver to PO Boxes.
- For further details on our Delivery Process you can visit our Delivery Page HERE.
