Renogy ONE M1
SKU: RMS-LP4 Learn More»
Description
Renogy ONE M1
Introducing Renogy ONE M1, your all-in-one energy monitoring and off-grid smart living center that revolutionizes comfort when you live in your off-grid home or RV.

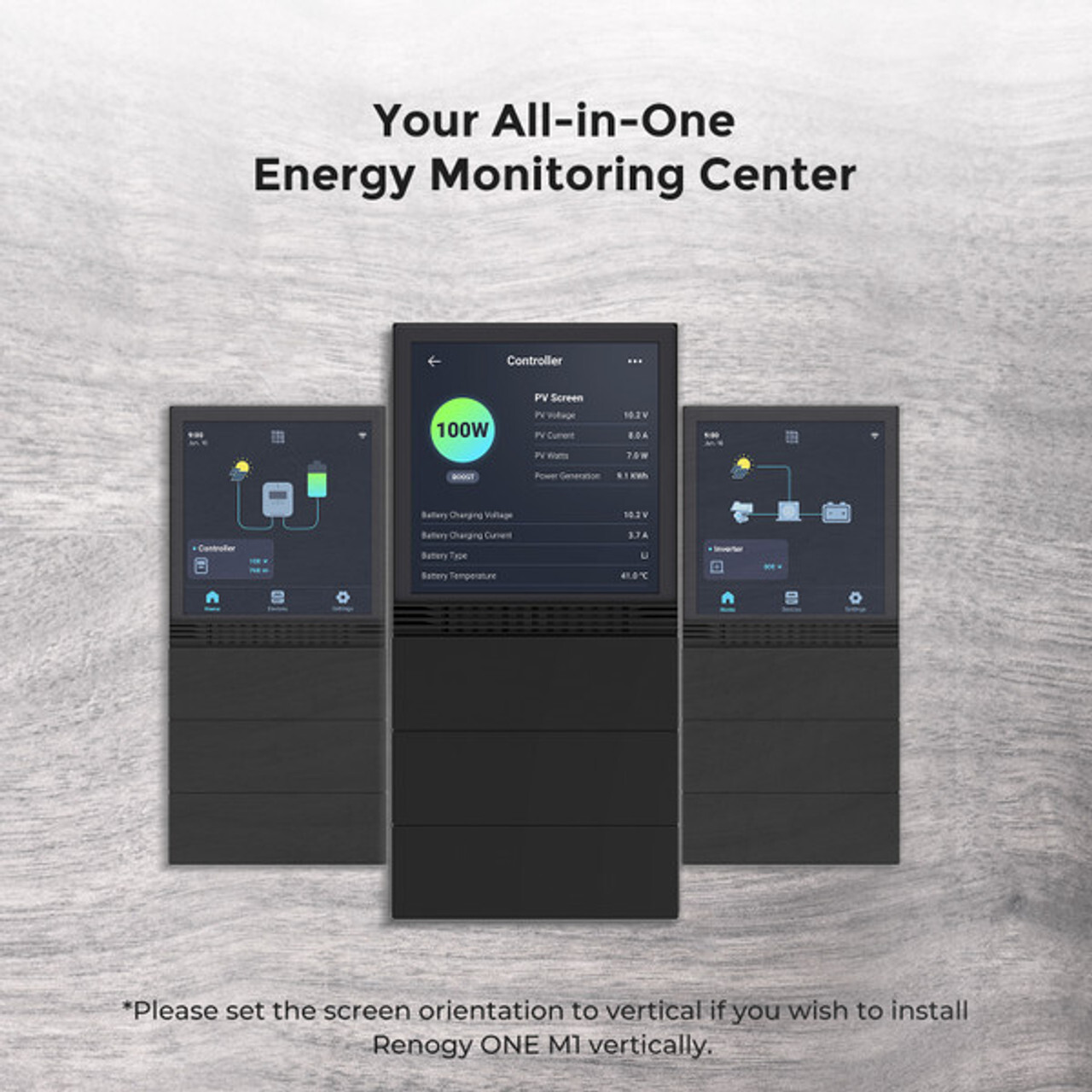

Renogy ONE M1 is the heart of your off-grid system, with a sleek, flush-mount touchscreen that looks great anywhere. A 4'' HD display lets you monitor every Renogy device in your home from one screen. And with the DC Home app, you'll have the same system monitoring wherever you go on your smartphone.
Live off-grid without compromising comfort with Renogy ONE M1. It gives you control of up to 3 devices at a time through the direct connection with panel relays. For instance, you can create an "Evening" mode that automatically turns on lights or a "Sleep" mode that dims the lights and shuts down the connected appliances.
Renogy ONE M1 delivers peace of mind with enhanced security features for your off-grid home or RV. Renogy ONE is compatible with our Door and Window Sensors and motion Sensors and sends instant alerts right to your DC Home app if there's a security breach.
Features:

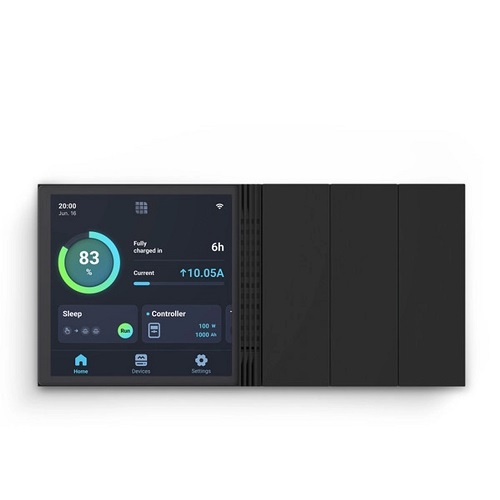

- Quick View Energy Dashboard: Get rid of cumbersome cables and multiple monitors with the flush-mount Renogy ONE M1. Its 4″ HD touchscreen lets you monitor and control compatible Renogy devices in your home from one screen.

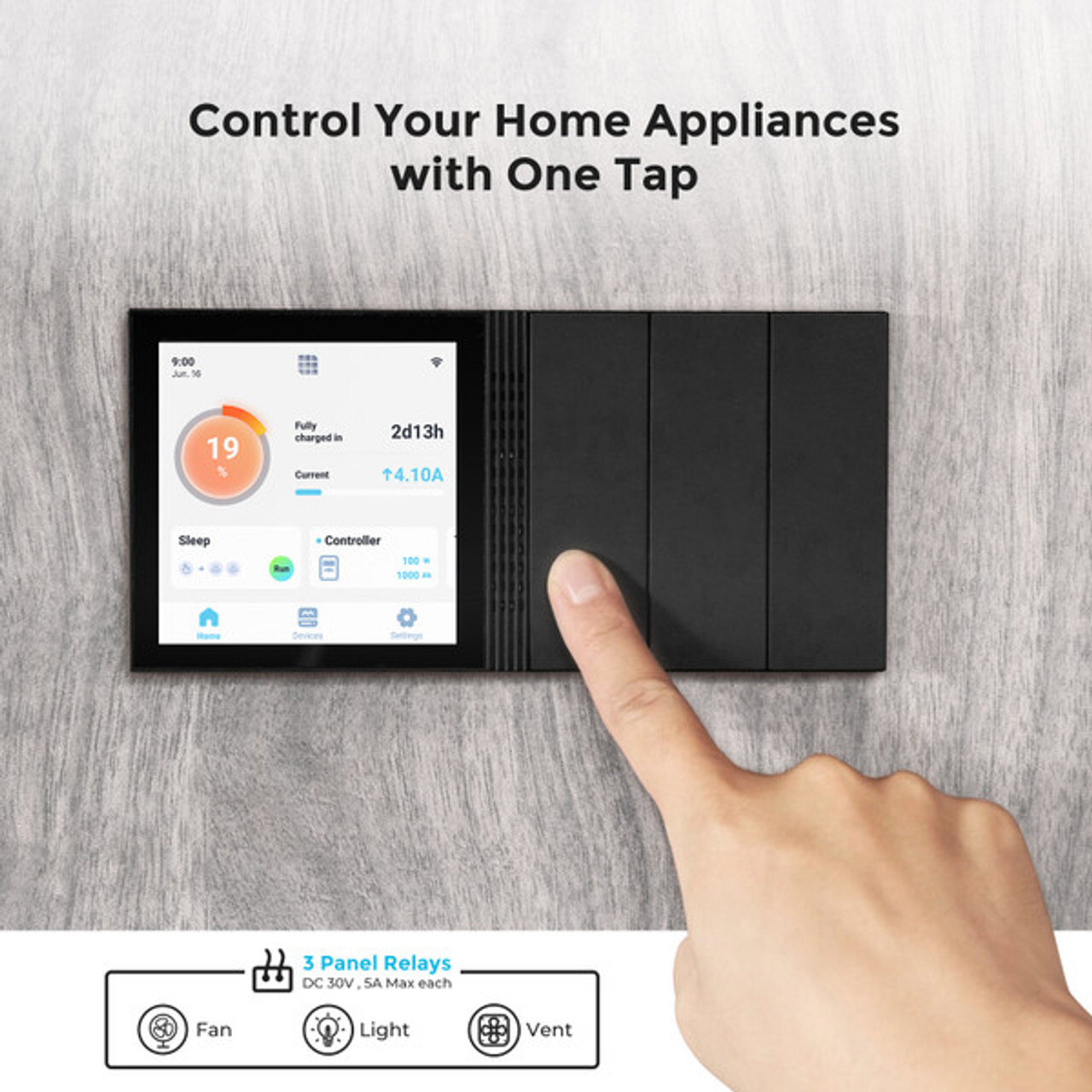

- Control All Your Connected Devices: Panel relays of Renogy ONE M1 allow you to switch on/off up to 3 DC appliances at a time through the panel switches or the DC Home app. You can even set up different smart scenes to control devices together, depending on how you live. For instance, you can create an "Evening" mode that automatically turns on lights, or a "Sleep" mode that turns off home appliances for you.

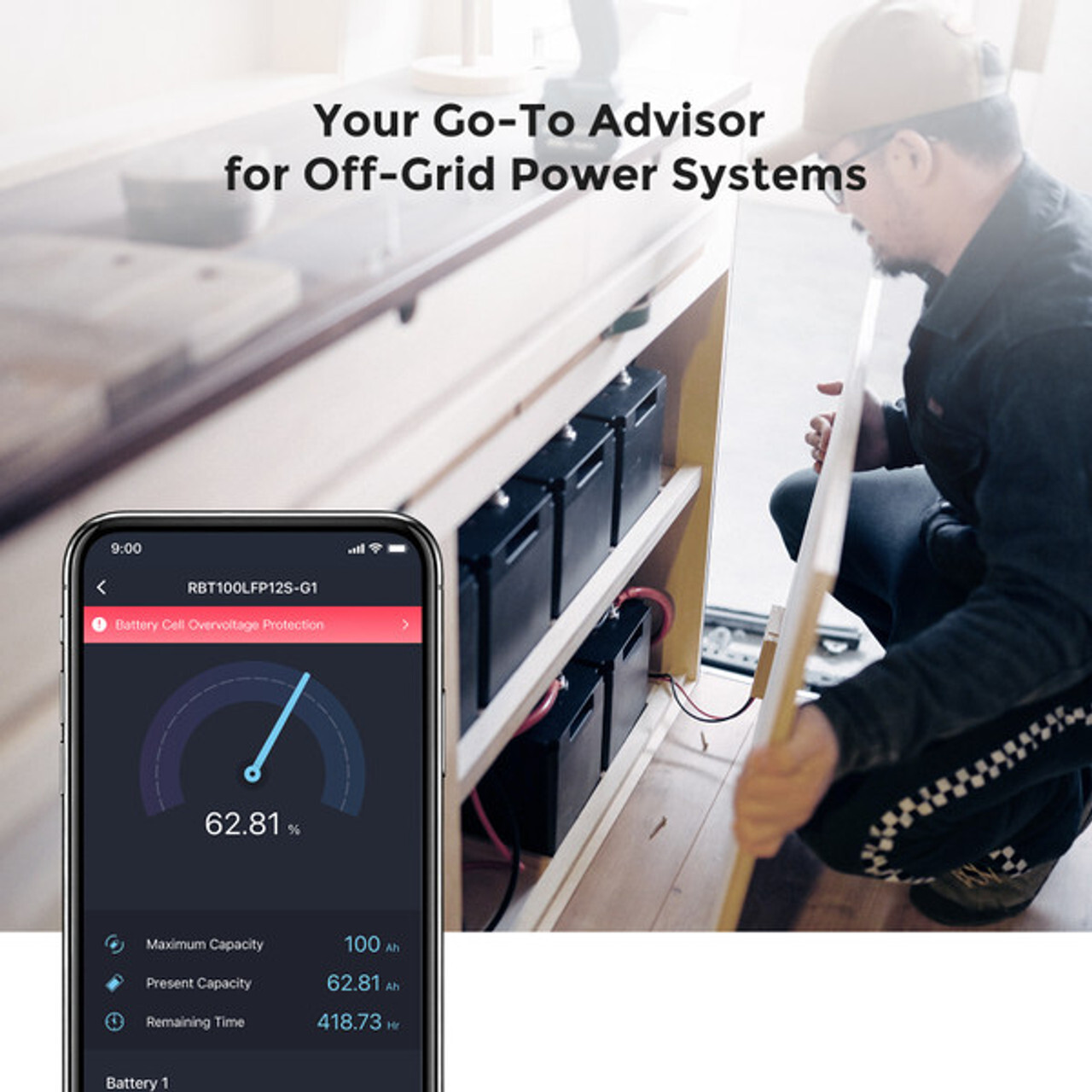

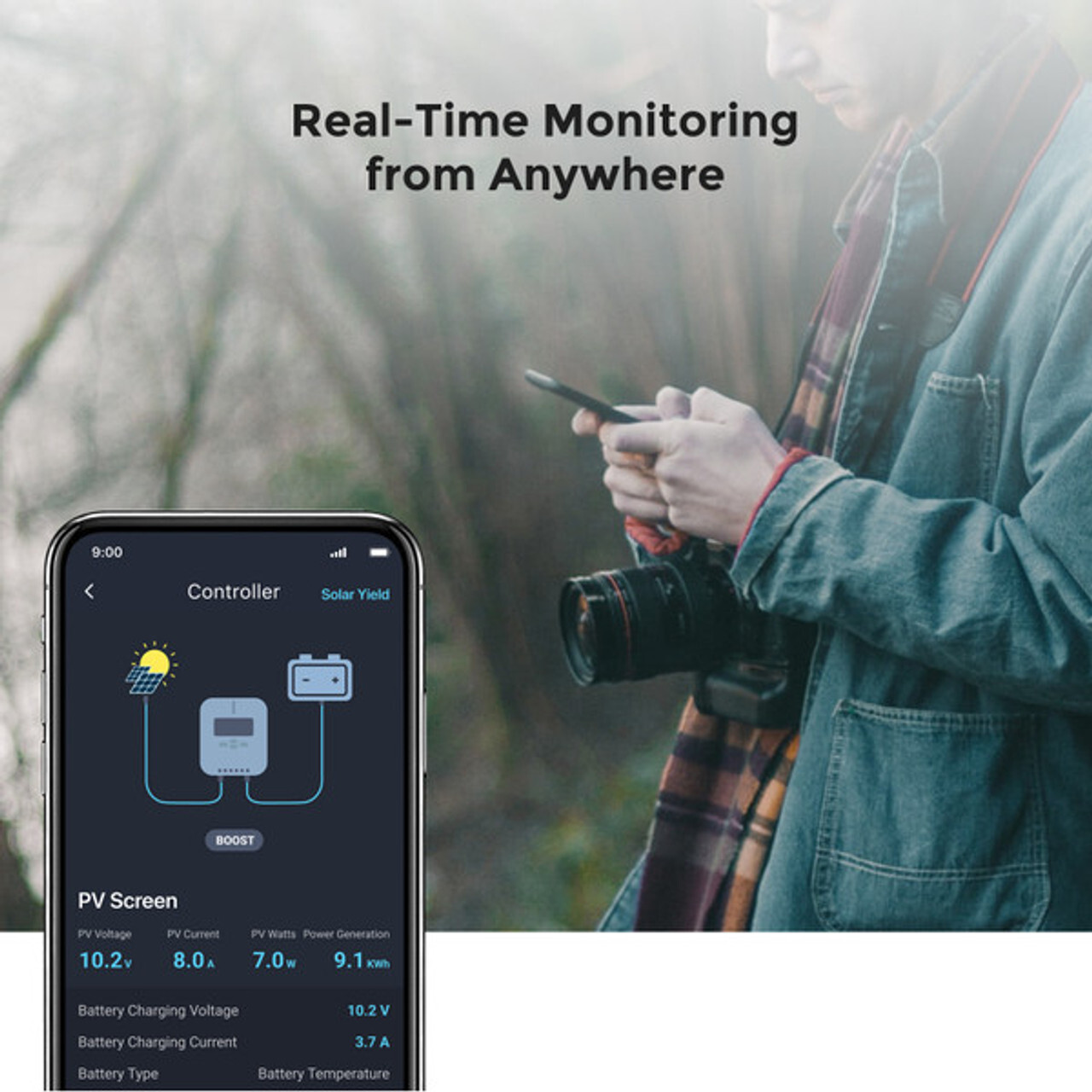

- Remote Energy Monitoring: Wi-Fi connectivity uploads energy data while you're off the grid so that you can monitor your system in real time, wherever you are, with the DC Home app. You can monitor the status of batteries, charge controllers, and other connected energy devices.

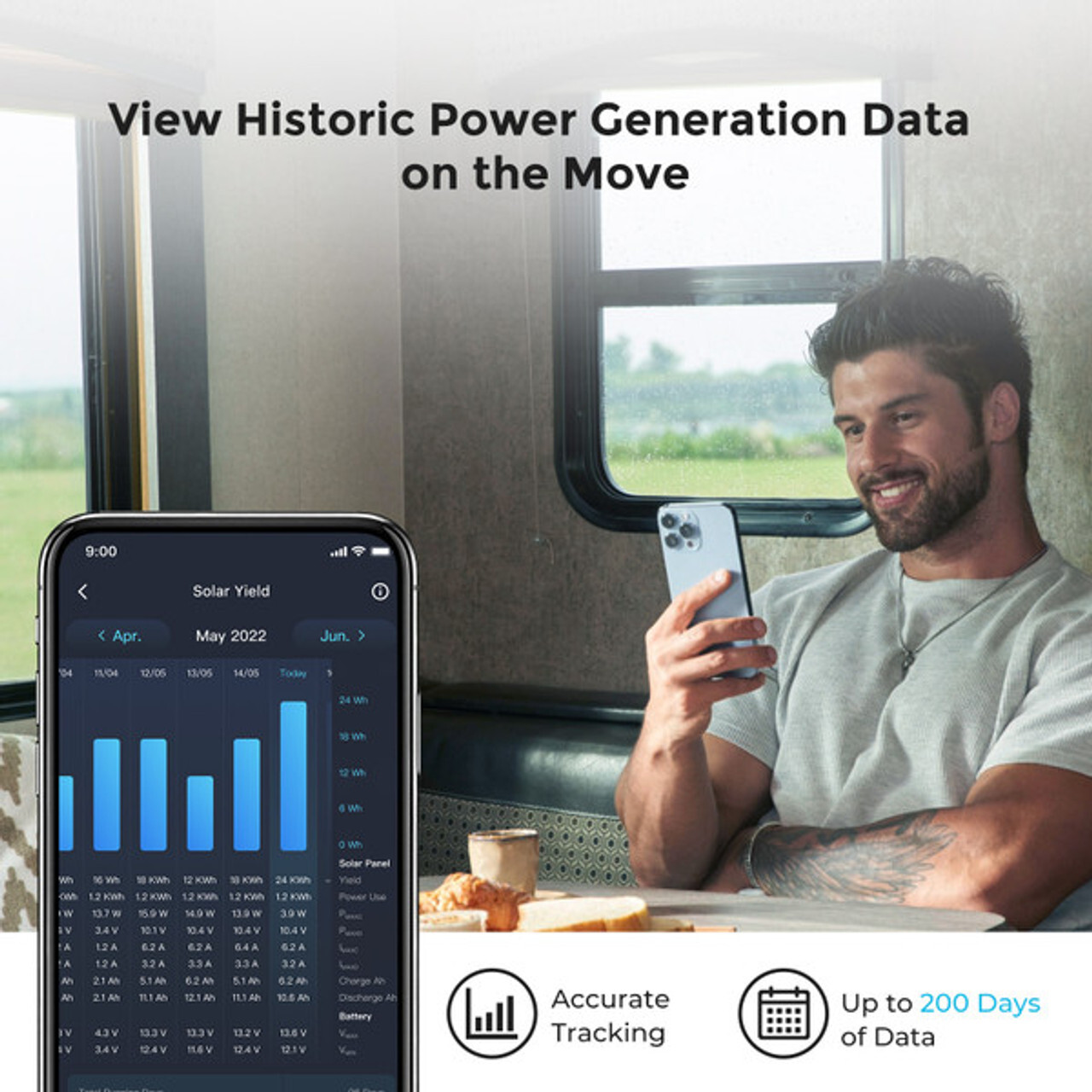

*You can view historic power generation data for the past 200 days.
Specifications:
- Rated Power 3.5W
- Installation: Flush mounting
- Color: Black
- Casing Material: PC+ABS V0
- Applicable Place: Indoor
- Operating Altitude: Less than 2000 m above sea level
- Operating Temperature: -20℃~50℃ (-4℉~122℉)
- Operating Humidity: 0%~95%RH

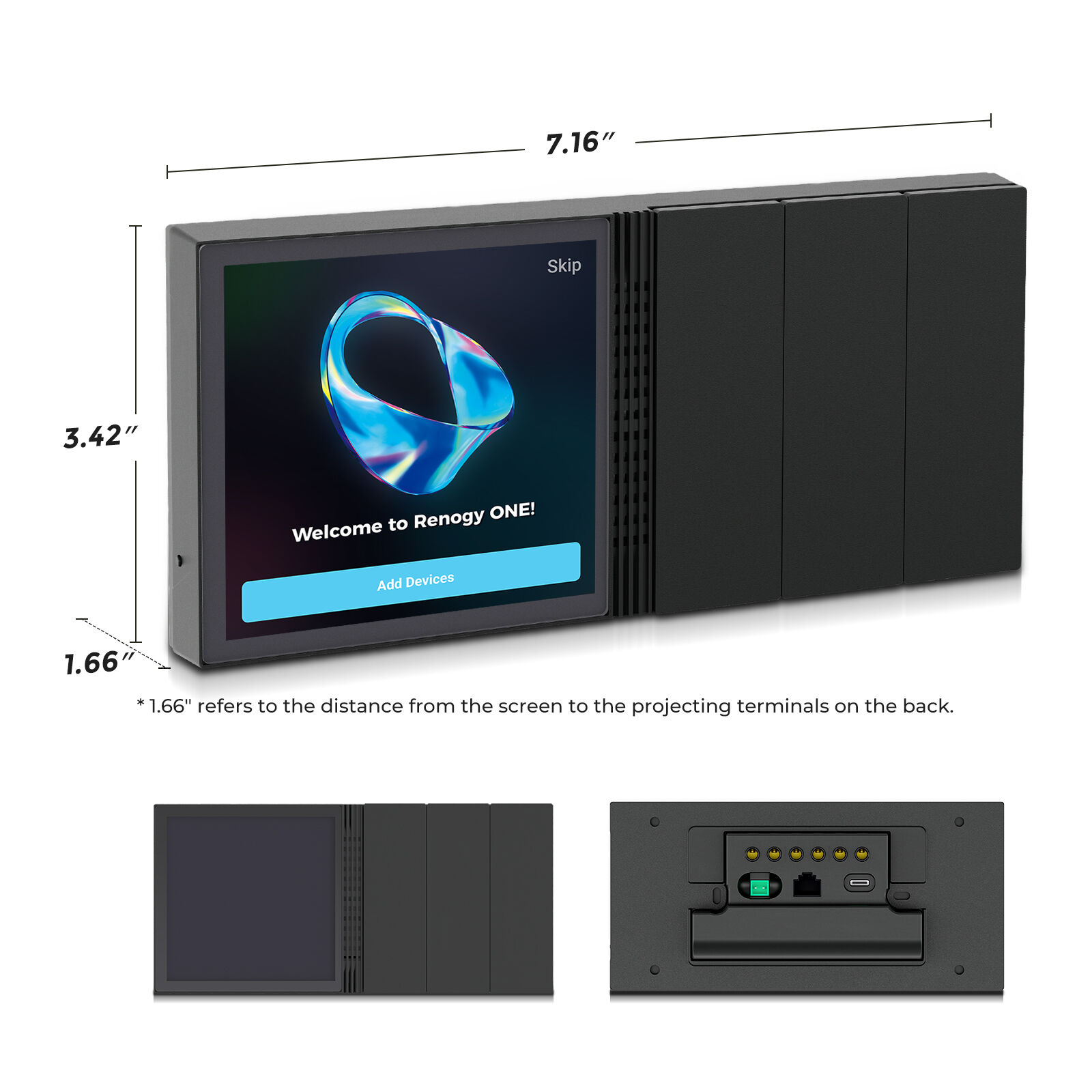

- Dimension: 181.8 x 86.8 x 42.2 mm
- Weight: 286g
.png)
Specifications
SKU RMS-LP4
Brand Renogy
GTIN 00840315206250
Product Category Batteries Other
Operating temperature range -20°C-50°C
Dimensions 181.8 x 86.8 x 42.2 mm
Weight (kg) 0.286
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Does the functionality of the configured smart scenes continue when Renogy ONE M1 is offline?
Indeed, Renogy ONE M1 can communicate wirelessly with smart accessories via the Zigbee 3.0 protocol. When you configure a smart scene, the settings are stored within the system of Renogy ONE M1. In the event that a network connection is unavailable, Renogy ONE M1 can still communicate with smart accessories through Zigbee 3.0.
-
What is the maximum number of devices that Renogy ONE M1 can connect to via Bluetooth, RS485/CAN, and Zigbee 3.0?
Renogy ONE M1 allows you to connect up to seven Bluetooth devices, sixty-four devices with an RS485/CAN port, and two hundred Zigbee 3.0 devices.
Please be aware that if there are too many devices connected to Renogy ONE M1, it may respond slowly.
-
What is the maximum range between Renogy ONE M1 and Bluetooth devices? Zigbee 3.0 devices?
The Renogy ONE M1 has a maximum range of 32.8 ft (10 m) for Bluetooth devices. However, for Zigbee 3.0 devices, the maximum range extends to 164 ft (50 m).
-
How much time will the data be locally stored by Renogy ONE M1
Renogy ONE M1 has a 30-day local data storage capacity.
-
Is it possible for Renogy ONE M1 to recognize devices automatically over any kind of connection?
Yes, as long as they are approved by Renogy, devices having RS485 connections, Bluetooth, Zigbee 3.0, and RV-C capabilities can all be instantly recognized by the Renogy ONE M1.
-
Is the DC Home app required for Renogy ONE M1 to function?
No, you can add energy devices and examine energy data without connecting to the DC Home app. But, in order to use key features like remote monitoring and creating smart scenes, we recommend pairing it with the DC Home app.
-
Can a smart mobile phone use a hotspot to connect to the Internet and use the Renogy ONE M1?
Absolutely.
-
Does the Renogy ONE M1 support wireless networks encrypted with WPA3?
No, WPA3 is not supported by it.
-
Is a 5G Hz Wi-Fi network supported by the Renogy ONE M1?
No, it isn't
