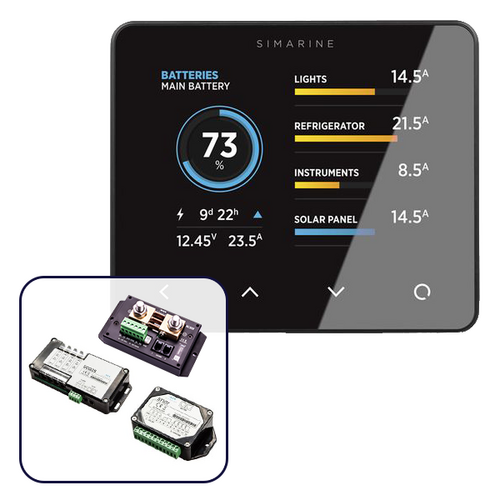

Simarine by Enerdrive, Black Digital Battery Monitor Pack (Shunt 300A, Quad Shunt 4 x 25A & Tank Module)
SKU: MYG-SI-2 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Simarine by Enerdrive, Digital Battery Monitor Pack (Shunt 300A, Quad Shunt 4 x 25A & Tank Module)
Included
- Pico Display (You can choose either standalone black, standalone silver, mount black or mount silver)
- Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp
- Quad Shunt 4 x 25A Circuits
- Tank module 3 x Volt 4 x Tank/Temp
Specifications
|
Operating |
|
|
Power source voltage range |
6 - 35 V |
|
Temparature range |
-20 – +70 °C |
|
Power consumption at 12 V |
|
|
Operating, WiFi On, 100% illumination |
90 mA |
|
Operating, WiFi Off, 70% illumination |
35 mA |
|
Operating, WiFi Off, 0% illumination |
18 mA |
|
Power Off, logger still active |
5 mA |
|
Resolution |
|
|
Current (A) |
±0,01 A |
|
Voltage (V) |
±0,01 A |
|
Amp hours (Ah) |
±0,1 A |
|
SOC - Stat of Charge ( 0 - 100%) |
±0,01 A |
|
Temperature |
±0,1 °C / °F |
|
Voltage inputs |
|
|
Range |
0 – 75 V |
|
WIFI |
|
|
Radio Frequency Band |
2,4 GHz |
|
Dimensions (without connector) |
|
|
Standalon |
89 x 84 x 10 mm |
|
Panel |
108,5 x 94 x 10 mm |
|
Connectivity |
Up to |
|
Batteries |
6 |
|
Shunts |
24 |
|
Temperature sensors |
10 |
|
Tank level sensors |
14 |
|
Inclinometer sensors |
2 |
|
Smartphone application |
1 |
|
Logger Capacity |
up to 3 months |
Pico Display:
SIMARINE’s advanced battery monitor for more demanding users.It can be connected to:
- up to 6 battery banks,
- 6 additional battery voltages
- 14 tank levels (for temperature monitoring)
- 20 consumer or power generation readings.
- Compatible with all SIMARINE modules.
Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp:
Innovative combination of shunt and tank level module. SC303 is an active combo shunt for PICO battery monitor with 2x voltages, 2x tank level or temperature, 1x socket for temperature sensor with JST connector and 1x current sensor up to 300A for up to 75V systems. It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.
Quad Shunt 4 x 25A Circuits:
SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.
Tank Module 3 x Volt 4 x Tank/Temp:
Fresh, Gray or Black – keep your waters under control with ST107 module.
ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities. It enables monitoring tank levels (up to 7x), battery voltages (up to 3x), temperatures (up to 4x).
Free Simarine Android and iOS Apps:
Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
Specifications
SKU MYG-SI-2
Brand Simarine
Product Category Battery Monitors
Voltage 6-35V
Dimensions 10x84x98mm , 10x94x108.5 (Monitor)
NOTE: see full product specifications & further product info in the Description section on this page.
