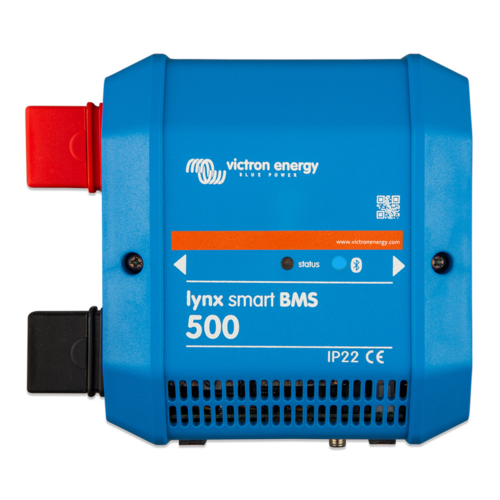

Victron Lynx Smart BMS 500
SKU: LYN034160200 Learn More»![](/assets/thumbL/LYN034160200.png?20220106174748)
![](/assets/alt_1/LYN034160200.png?20220106174752)
![](/assets/alt_2/LYN034160200.png?20220106174755)
![](/assets/alt_3/LYN034160200.png?20220106174759)
![](/assets/alt_4/LYN034160200.png?20220106174802)
![](/assets/alt_5/LYN034160200.png?20220106174805)
![](/assets/alt_6/LYN034160200.png?20220106174809)
![](/assets/alt_7/LYN034160200.png?20220106174814)
Description
Victron Lynx Smart BMS 500
The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:
- Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
- Bluetooth for use with our VictronConnect App, for setup and monitoring.
- Local and remote monitoring using a Victron GX device, for example the Cerbo GX.
The Lynx Smart BMS is part of the modular Lynx Distribution system.
Specifications:
- Supply voltage range: 9 - 58 Vdc
- Supported system voltages: 12, 24 or 48V
- Main safety contactor continuous current rating: 500Adc continuous
- Main safety contactor peak current rating: 600A for 5 minutes
- Power consumption hibernate or standby mode: Approximately 10.4mW (0.8mA at 13V)
- Alarm relay (SPDT) Maximum current rating: 2A at 60Vdc
- Battery BMS cables: Male and female circular 3-pole connector with M8 screw ring
- Operating temperature range: -40°C to +60°
- Storage temperature range: -40°C to +60°
- Humidity: Max. 95% (non-condensing)
- Protection class: IP22
- Material: ABS
- Dimensions: 190 x 180 x 80 mm
- Weight: 1.9kg
Specifications
SKU LYN034160200
Brand Victron
GTIN 8719076047476
Product Category Batteries Other
NOTE: see full product specifications & further product info in the Description section on this page.
