Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port
SKU: RCM-BT2 Learn More»
Description

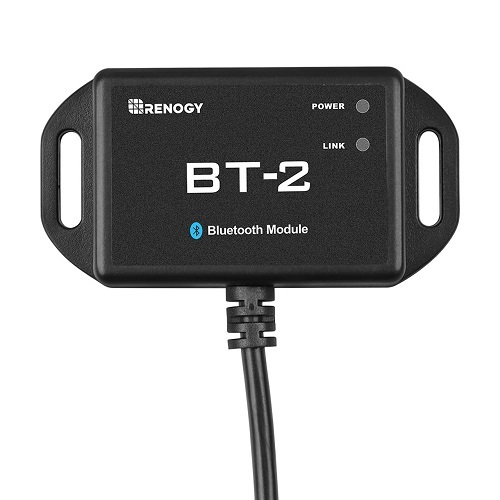

Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port

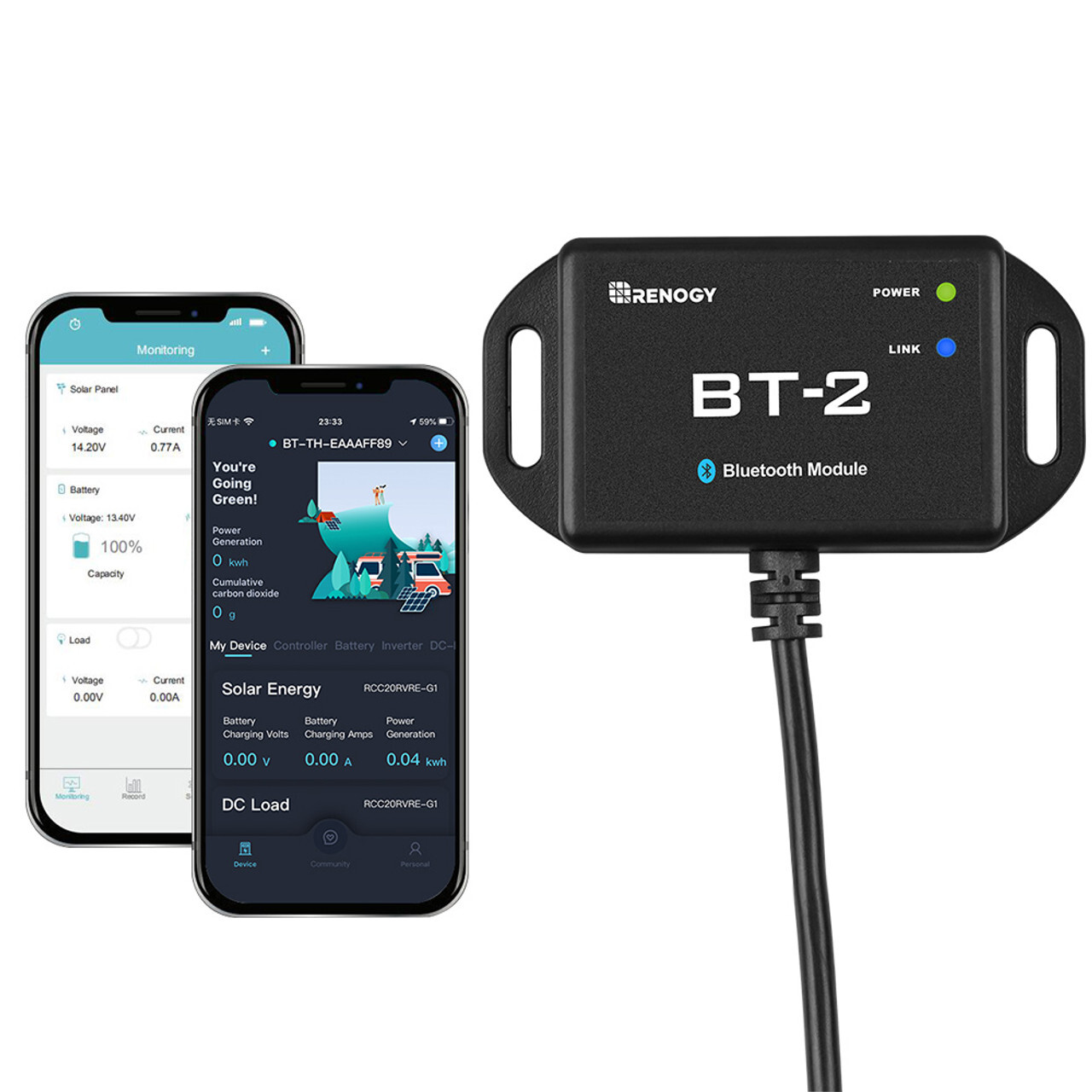

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.
The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet.
Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
Features:
-

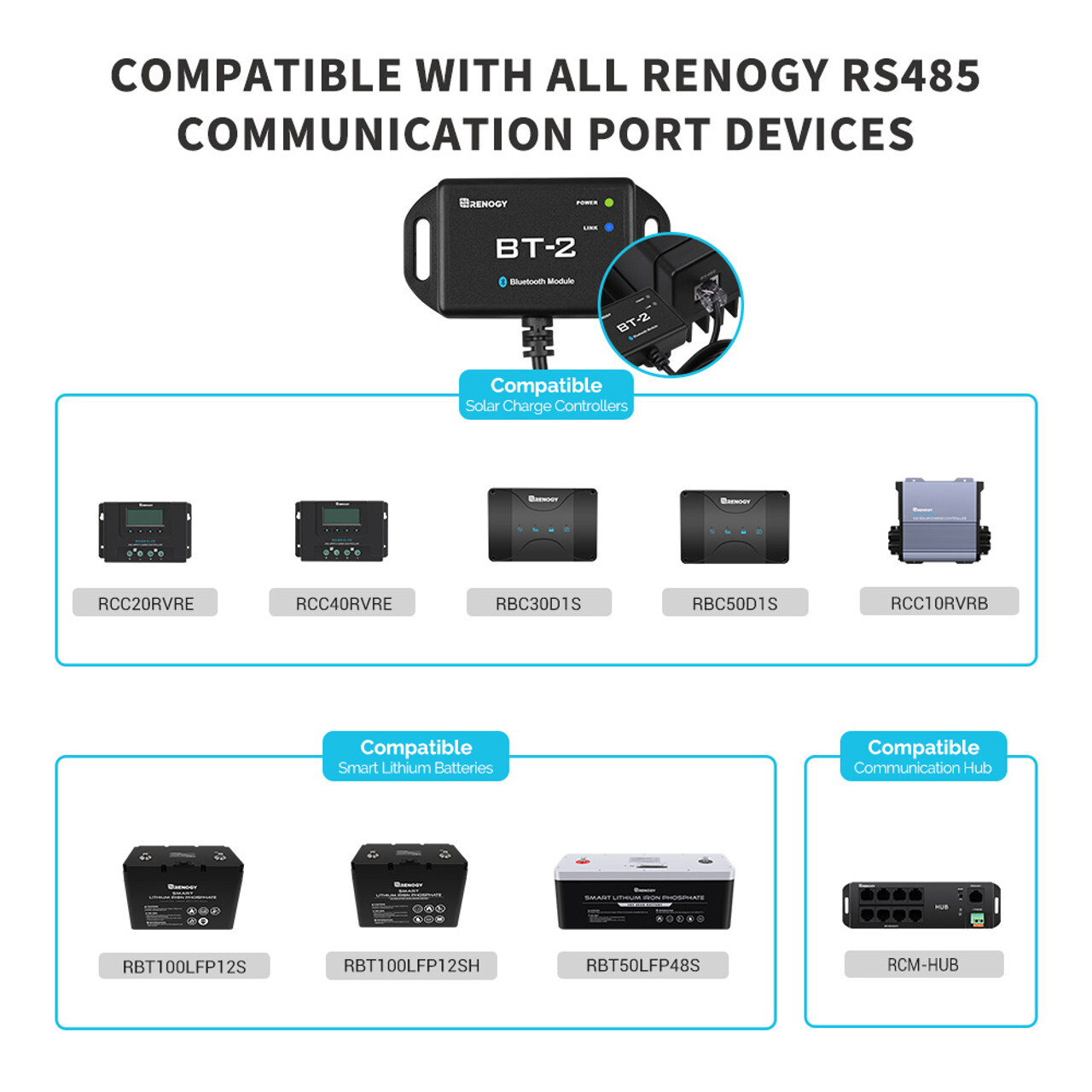

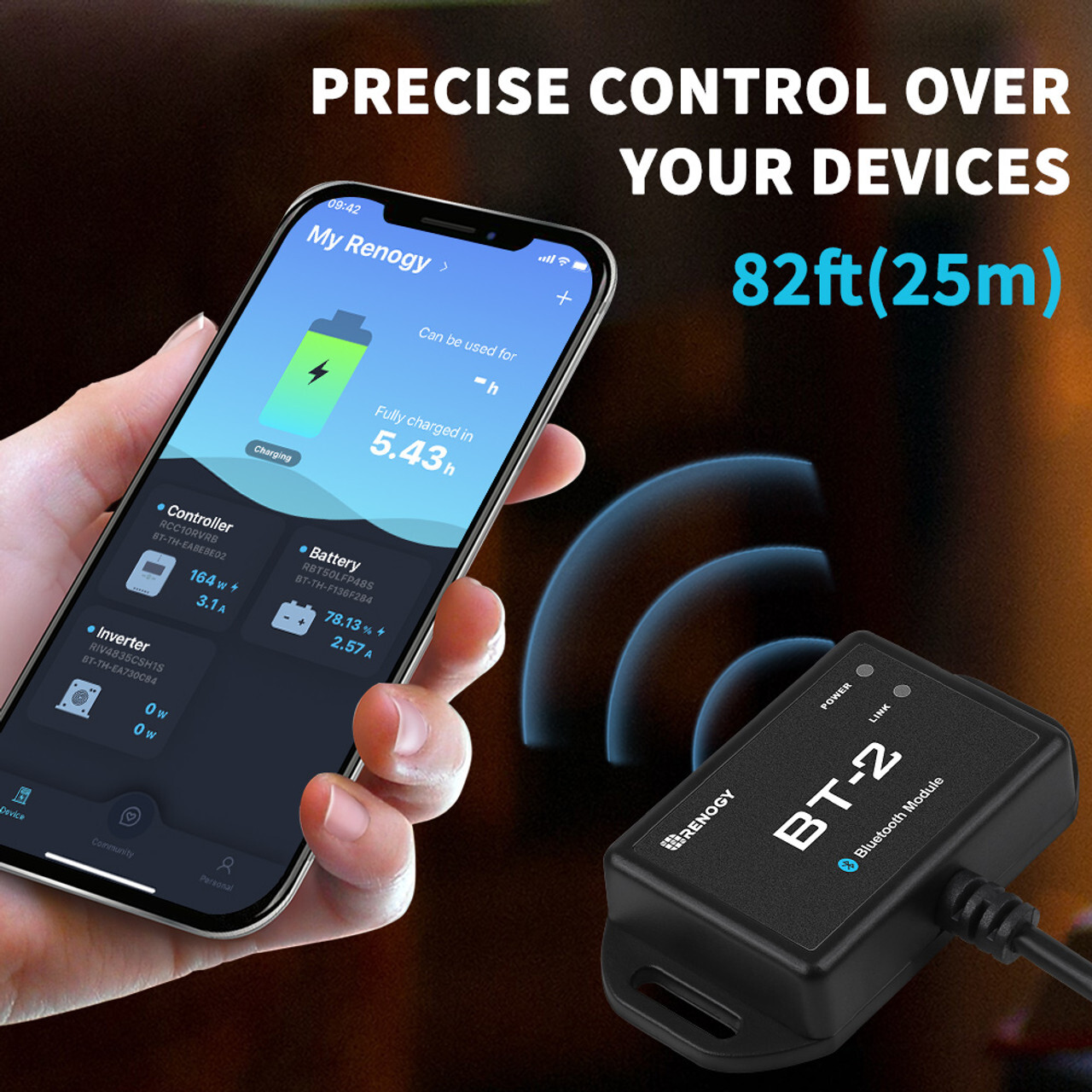

Precise Control Over Your Devices: Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger.
-

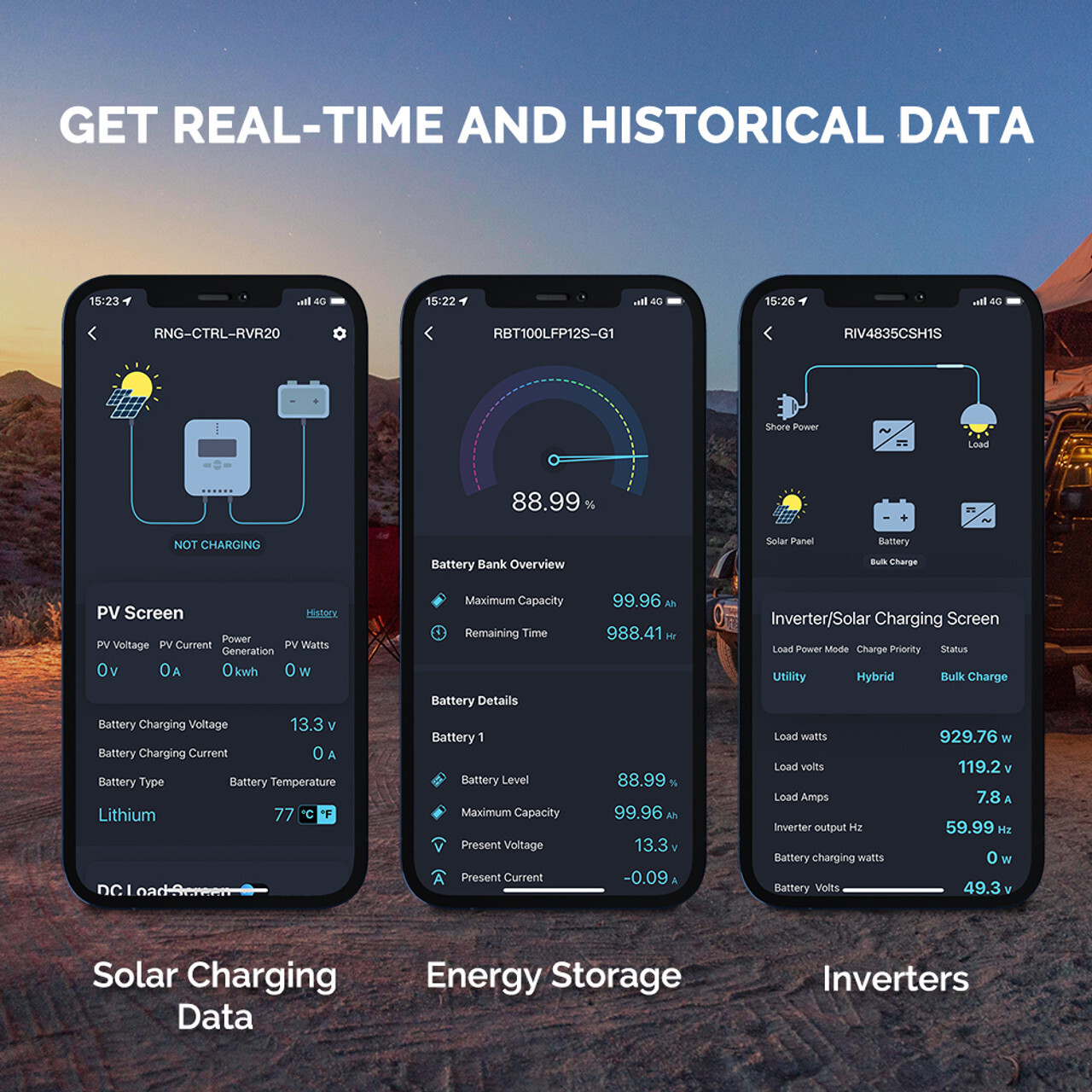

Real-time Insight: Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.
-
User-friendly: Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.
Specifications:
- Communication Protocol: RS485
- Port Type: RJ45
- Input Voltage: 5V or 12V
- Protection Grade: IP54
- Standby Power Consumption: 0.04W
- Operating Power Consumption: 0.05W
- Communication Range: ≤82ft
- Serial Baud Rate: Fixed Baud Rate 9600bps

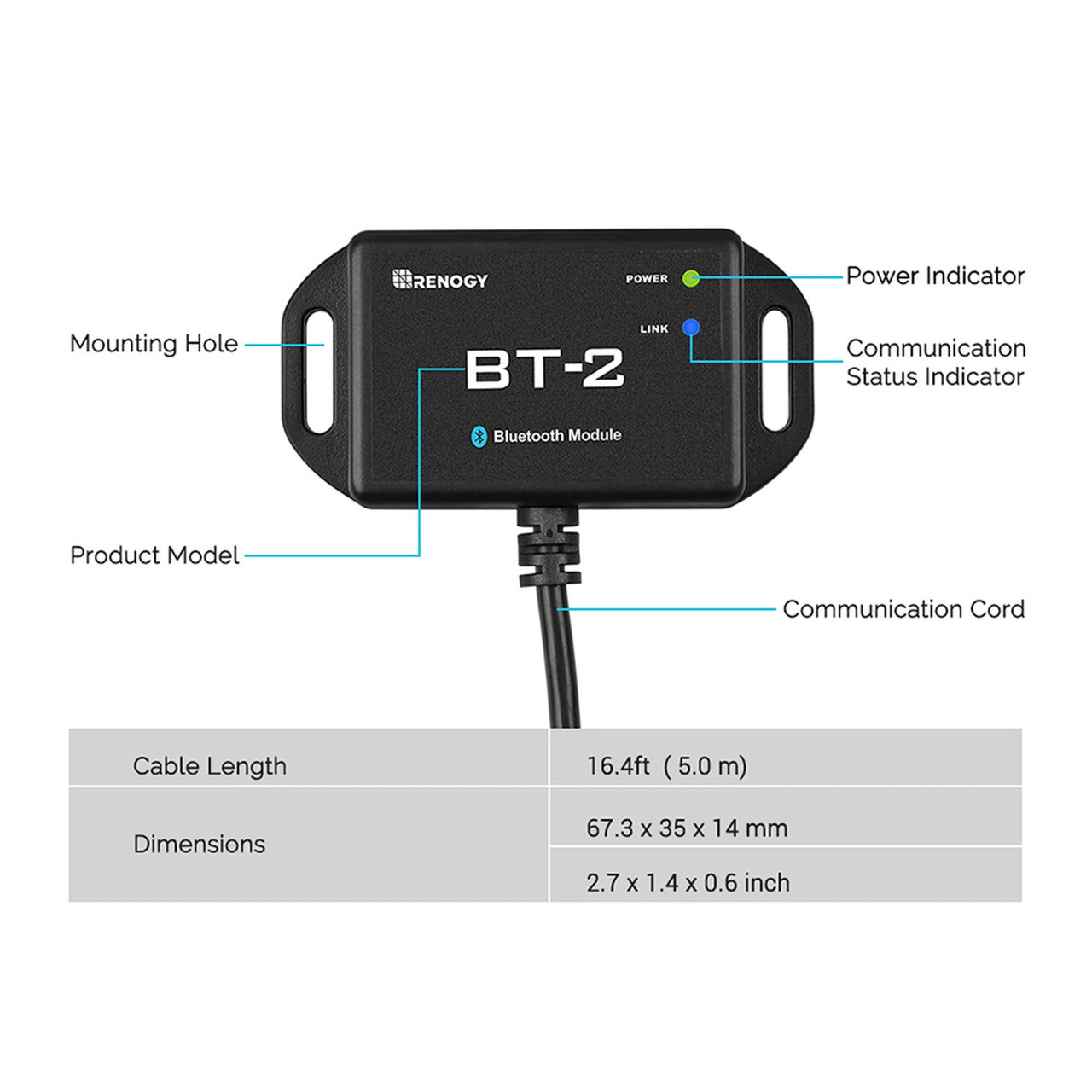

- Cable Length: 5.00 m (16.4 ft)
- Dimensions: 67.3 X 35 X 14 mm
- Installation Dimensions: 67.3 φ3.5mm
- Operation Temperature: -20℃~85℃
- Weight: 130g
Specifications
SKU RCM-BT2
Brand Renogy
GTIN 00810009714477
Product Category Electrical Accessories
Voltage 5V
-Weight 130g
Cable Length 5m
Dimensions 67.3 X 35 X 14 mm
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Do I require the BT-1 or BT-2?p>The BT-1 utilised RS232 communication making it only compatible with devices that use an RJ12. BT-2 uses RS485 communication, which is compativle with the Rengoy Communication Hub.
-
Are all Renogy products compatible with the BT-2?
The BT-2 is only compatible with Renogy products that have the RS485 port.
-
What distinguishes the BT-1 from the BT-2?p>The BT-1 utilises an RS232 and this is exclusive to devices that support RJ12. BT-2 uses RS485 communication and is compatible with other Renogy products that utilise the RS485.
-
Which app do I to install?
Use the APP or Google Play stores to search for and download the Renogy DC Home App. May 2021 marks the end of support for the Renogy BT App. Kindly take notice of this.
-
With the DC Home App, what kinds of data can I keep an eye on?
Complete control over your solar, energy storage and real-time operation data from the inverters.
-
Am I able to view data away from my setup?
The BT-2 has a range of around 25m.
