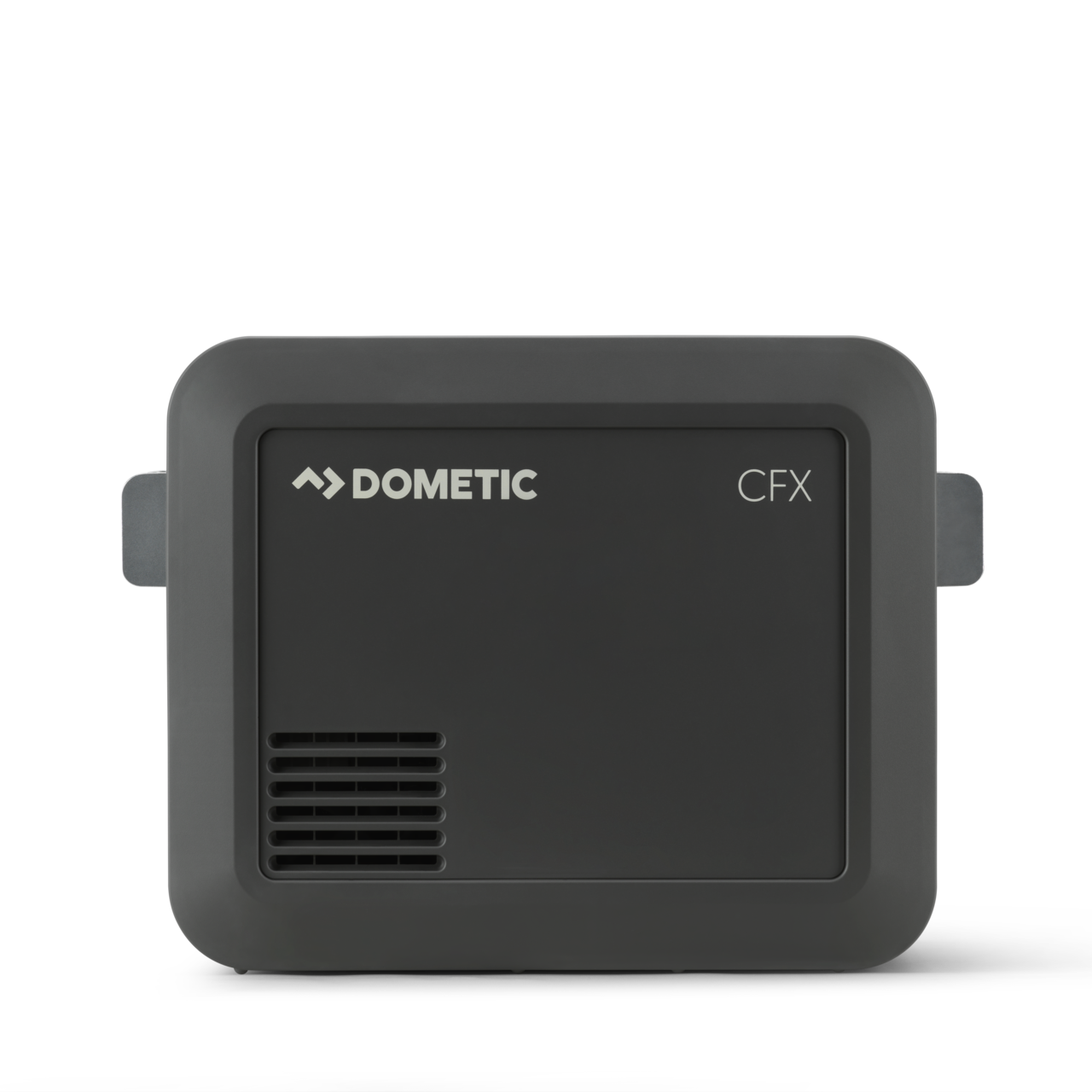

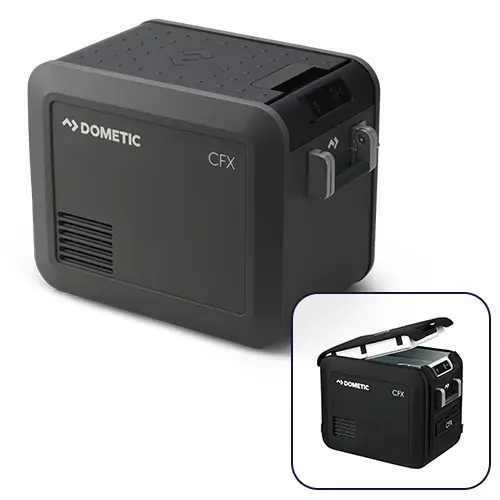

Dometic CFX5 25 25 Litre Portable Fridge/Freezer
SKU: 9620015957 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Dometic CFX5 25 25 Litre Portable Fridge/Freezer
The Dometic cooling system is equipped with a powerful VMSO3.5 compressor, delivering exceptional performance and efficiency. Featuring a high-resolution colour display, it offers an intuitive interface for easy operation. With Bluetooth and WiFi capabilities, you can control the system remotely and monitor its temperature and performance via the Dometic Mobile Cooling app. The innovative gasket seal technology ensures enhanced insulation and energy efficiency, making this cooling solution ideal for both personal and professional use. Enjoy precise temperature control and superior reliability in one advanced package.
Advanced insulation technologies, rugged builds, multiple power options. These are Dometics most premium portable fridge/freezers. Vacuum Insulated Panel technology provides serious cooling performance - this keeps the contents cold, power usage minimal and your fridge/freezer lightweight. Options with dual-zone cooling and making ice in fridge mode are available. Every bit Dometic, they’re ready for 4WDing, camping, van life, and big weekends.
Benefits with CFX5 25:
- Powerful VMSO3.5 compressor
- Temperature control and performance monitoring via Dometic Mobile Cooling app
- High-resolution colour display
- Gasket seal technology
- Powerful and efficient Dometic Compressor with VMSO3.5 technology
- Bluetooth or WiFi control
Features:
- Flexible power options
- User friendly, weather-resistant interface
- Packed with features
- Detachable lid
- USB port
- Dimmable display
- Interior light
Includes:
- DC connection cable x 1
- AC connection cable x 1
- Removable wire basket x 1
Specifications
SKU 9620015957
Brand Dometic
GTIN 6975399593966
Product Category Portable Camping Fridges
Voltage 12/24V DC and 100-240V AC
Total Capacity (L) 25
Portable Fridge Type Single Zone
Fridge Cabinet Material Polypropylene - Plastic
Fridge Width (mm) 342
Fridge Height (mm) 420
Fridge Depth (mm) 569
Colour Ore
Temperature Range +10 °C to -22 °C
Weight (kg) 13.80
Refrigeration Technology Compressor
Can Count (375ml) 33
Power Consumption 0.77 Ah/h (@4 °C set, Bluetooth on, WiFi off) @12 V, 32°C ambient, fridge empty
Drain Plug Yes
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What compressor is in the CFX5 fridges?
The entire CFX5 range features a genuine VMS03 compressor. The VMS03 compressor has motor speed optimization that has the ability to change speed in order to adapt to the environment. This allows you to save power especially in hot climates. The compressor also features a softer start up with a higher maximum power draw to increase the longevity of the fridge/freezer.
-
What size battery should I have to power a portable fridge?
First, you will need to determine how much power your portable fridge will consume on average per hour under certain ambient conditions; please see the Product Specification Tab of the product where we provide this information. Additionally, you will need to know the size of your battery in amp-hours.
When you have these number, you can calculate the approximate run time in hours by dividing the size of the battery by that average consumption figure.
Some examples:
If it is stated consumption is 1 amp per hour average, multiple that by 24 hours (equals 24 Amp hours per day).
You should understand that you never get the full amount of amp-hours from a battery. As a good rule of thumb, you should use 80% for a Lithium Battery and 50% of an AGM/GEL (lead acid) battery.
So, for a 100 Amp hours deep cycle lithium battery, we can assume 80 amp-hours of usable power.
If we are looking at a refrigerator that have an average consumption of 1 amp per hour, and it is the only appliance running from a 100 amp-hour battery. You should be able to run the refrigerator for around 80 hours before recharging is needed.
-
How much solar do I need to power my portable fridge?
The panel should be of a suitable size to meet requirements of the refrigerator and any other appliance running from the battery. It's best to use the solar panel to charge a battery, as opposed to running the fridge directly from the solar panel as voltage will drop if clouds come overhead for instance. The battery means your refrigerator keeps running even if the voltage output of the solar panel drops severely due to cloud cover.
A good rule of thumb to prevent inadequacies with power supply is to have a solar panel large enough to provide enough daily power to run your refrigerator and have battery storage of an extra 2/3 on hand. So, if your refrigerator (or any other appliance) will consume 30 amp-hours per day, you should have battery storage of 90 amp-hours capacity and a solar panel of around 80 watts or greater capacity to ensure you will not have problems.
It is advised to go a little higher in specification than your needs. However, a popular solar panel size to charge your batteries to run camping fridges is around 120 - 160 watts.
-
Will the fridge drain my car battery?
Your car starter battery will need a certain voltage level to crank over. If you are running the fridge direct from your cranking battery, most user manuals, including Dometic, recommend switching your portable fridge on to Medium or High voltage setting.
By changing this setting you are telling the fridge to cut out (stop drawing power) at a predetermined voltage level. See table below:
Example - Dometic CFX5's Voltage settings:
.png)
To avoid battery draining of your starter battery we recommend choosing the high setting.
If you are connected to a house (Auxiliary) battery then you are fine to choose the low setting.
-
I am considering buying a solar blanket for my camping trips - can I run my camping fridge directly from the solar blanket?
Hi there,
Great question! However, unfortunately no, you will not be able to run your camping fridge directly with a solar blanket.
A battery will be required to be used to provide a continuous power supply for the fridge. You will need to plug the portable fridge/freezer into the battery and plug the battery into the solar panel/blanket.
The solar panel/blanket on its own is unable to provide stable and constant power to your portable fridge/freezer, which is required to maintain your pre-set temperature.
-
How much ventilation do I need surrounding the fridge when it is operating?
To ensure that your portable fridge/freezer are not overheating which will result in a high power consumption that leads to poor performance and efficiency, it is important to make sure that the fridge/freezer is getting the right amount of ventilation.
We would always recommend at least a 100mm buffering perimeter around the fridge when it is being stored in an enclosure. However, many manufacturers will generally advise a 200mm buffering gap around the fridge vent for the best possible performance.
Additionally, we highly recommend to regularly clean the air inlet and outlet vent of the fridge/freezer. This will prevent dust from creating a blockage.
-
What size portable fridge/freezer should I purchase?
Dometic portable fridge/freezers comes in a wide range of sizes. When deciding on a portable fridge/freezer, it is important to remember that the larger size will require more power, it is also heavier and will take up more space. While if you choose a smaller more compact fridge/freezer, it may be hard to fit your required food for your family during your days away.
We recommend to to choose the size that matches your required storage capacity for food, your travel habits, and weight requirements.
