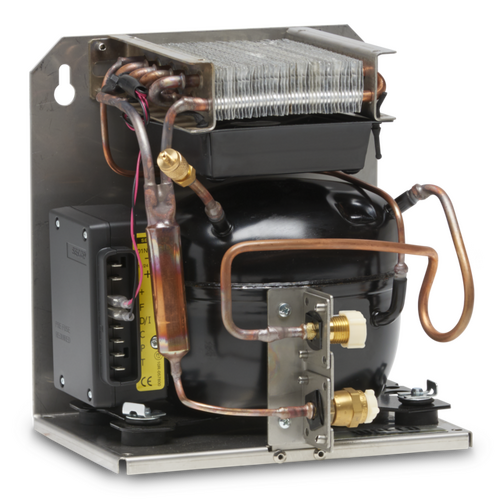

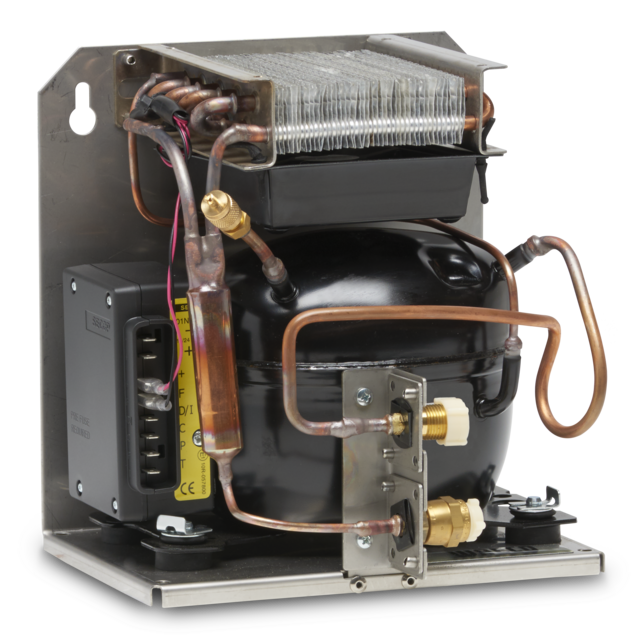

Dometic Coldmachine CU96

Dometic Coldmachine VD-14N

This circulating air evaporator is ideal for installation in chest and upright refrigerators. Especially suitable for large refrigeration capacities and high ambient temperatures.

Features:

• High performance circulating air evaporator for optimal cooling performance
• Ensures your fridge operates with minimal power consumption
• Continuously variable room thermostat gives you flexibility
• Maximum capacity 400 l with 50 mm PU insulation

The Dometic Circulating air evaporator VD14N for Series 90 is a high performance circulating air evaporator ensuring an optimal cooling performance from your fridge. Capable of cooling up to 400 l in high ambient temperatures thanks to its enlarged surface area and the enhanced ventilation capacity of its radial fan. Also includes a continuously variable room thermostat for optimal temperature control. Top cooling at minimal power.

Specifications:

• Input Voltage: 12/24V DC
• Rated Input Power: 3,5W DC
• Refrigerant Type: R134a Contains fluorinated greenhouse gases
• GWP: 1430
• Refrigerant Amount: 15g
• CO2 Equivalent: 0.021 t
• Climate Class: EN62552) T
• Dimensions: 90mm x 310mm x 250mm (D x H x W)
• Weight: 2.000 kg

Dometic Coldmachine VD-16

Tailor-made for deep freezing! This air circulating deep-freeze evaporator is designed for installation in both chest and upright refrigerators. Optimal cooling at minimal power.

Features:

• For optimal cooling power
• Ensures your fridge operates with minimal power consumption
• Continuously variable temperature control via thermostat
• Self-sealing valve couplings for easy installation

The Dometic Air circulating deep-freeze evaporator VD16 for Series 90 is tailor-made for deep freezing! This air circulating deep-freeze evaporator is designed for installation in both chest and upright refrigerators. A maximum cooling capacity of 130 l with 50 mm PU insulation – it offers optimal cooling at minimal power. Self-sealing valve couplings simplify installation.

Specifications:

• Input Voltage: 12/24V DC
• Rated Input Power: 3,5W DC
• Refrigerant Type: R134a Contains fluorinated greenhouse gases
• GWP: 1430
• Refrigerant Amount: 40g
• CO2 Equivalent: 0.057 t
• Climate Class: EN62552) T
• Dimensions: 145mm x 280mm x 330mm (D x H x W)
• Weight: 2.5000 kg

Dometic Coldmachine VD-21

Ensure top quality cooling performance from your fridge with this plate evaporator. Designed for installation in chest refrigerators. Especially suitable for large refrigeration capacities or deep-freezing up to 150 l.

Features:

• Continuously variable, external thermostat gives you convenient temperature control
• An LED indicator allows easy monitoring of temperature
• Ideal for maximising cooling performance
• Cooling capacity: 150 l maximum (50 mm PU insulation)
• Self-sealing valve couplings for easy installation

This plate evaporator is suitable for installation in chest refrigerators, especially those with large refrigeration capacities of up to 300 l or deep-freezing up to 150 l. The Dometic Plate evaporator VD21 for Series 90 is a key component in the cooling performance of your fridge or freezer.

Specifications:

• Input Voltage: 12/24V DC
• Refrigerant Type: R134a Contains fluorinated greenhouse gases
• GWP: 1430
• Refrigerant Amount: 100g
• CO2 Equivalent: 0.143 t
• Climate Class: EN62552) T
• Dimensions: 10mm x 305mm x 1373mm (D x H x W)
• Weight: 4.0000 kg
