Projecta 160W Polycrystalline Fixed Solar Panel & 25Amp Lithium Charger Bundle
SKU: IDC25L-Solar Learn More»
SPP160-MC4-IDC25L
Description

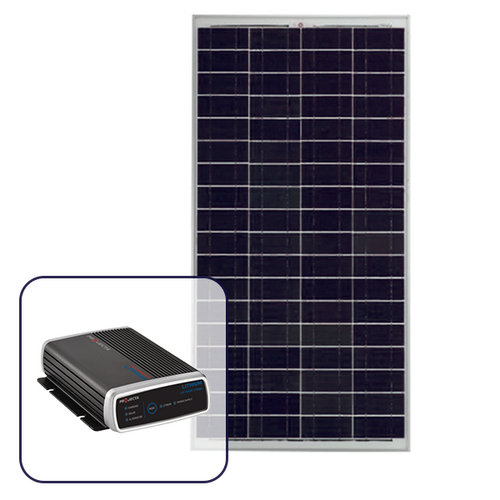

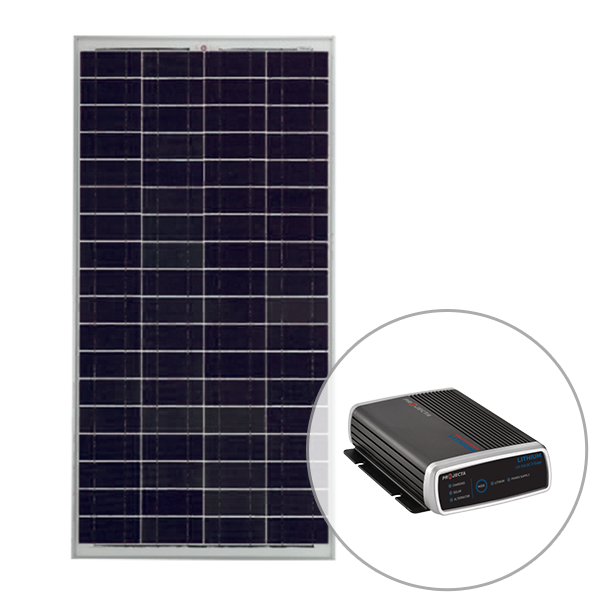

Projecta 12V 160W Polycrystalline Fixed Solar Panel & 25Amp Lithium Charger Bundle
Bundles Includes:
- 1 or 2 x SPP160-MC4 - Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector
- 1 x IDC25L - Projecta IDC25L 25A 5 Stage Intelli-Charge Lithium Dual Battery Charger
1 x or 2 x Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector
These panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances.
Specifications:
- Wattage 160W
- Maximum Power Voltage 17.5V Vm
- Maximum Power Current 9.15A Im
- Open Circuit Voltage 21V Voc
- Short Circuit Current 10.07A Isc
- Test Conditions 1000W/m2, 25°C
- Height 1490 mm
- Width 665 mm
- Depth 35 mm
- Voltage 12VDC
- Cell Type Polycrystalline
- Battery Automotive 500-1800CCA
- Battery Marine 600-2000MCA
- Battery Deep Cycle 60-280Ah
- Battery Charging Time 7-35 h
Features:
- Standardised MC4 connector fitted for ease of installation where MC4 connectors are used
- Provides better impact resistance and improved light transmission
- Superior strength and durability

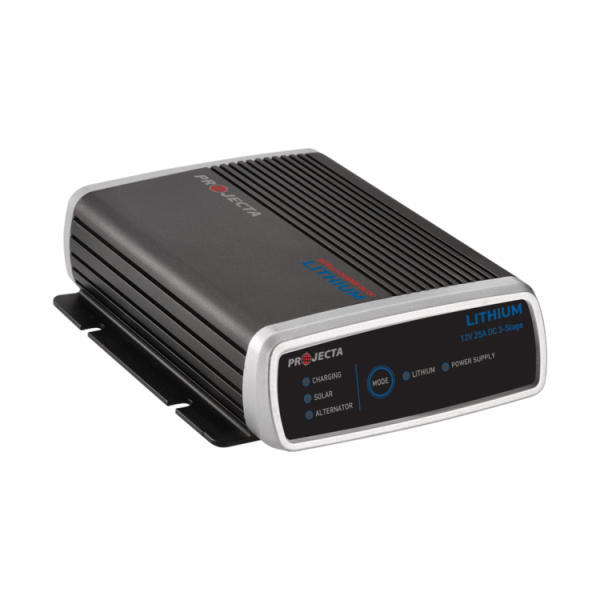

Projecta IDC25L 25A 5 Stage Intelli-Charge Lithium Dual Battery Charger
An advanced DC/solar battery charger engineered for todays sophisticated lithium iron phosphate batteries.
Features:
- Engineered for use with todays advanced lithium battery technology
- Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
- Engineered to work with both smart and conventional alternators
- Simultaneous dual battery charging from both solar and alternator inputs
- Over temperature, reverse connection, over/under and spark free protection
Specifications:
- Output Current Rating 25.0 Amps
- Dimensions 149 x 122 x 42 mm
- Back Current Drain 9.5-10.5mA (on AUX Battery)
- Battery Capacity 75-300 Ah
- Weight 0.8 kg
- Temperature Range -10°C to +80°C
- Maximum Solar Watt Input 23Vdc, 385W
- Input Voltage 9-32Vdc
- Charger Type 5 Stage
Specifications
SKU IDC25L-Solar
Brand Projecta
Product Category Solar Bundles
Voltage 12V
Watts (W) 160
Watts (W) 320
Solar Panel Cell Type Polycrystalline
Solar Panel Type Fixed Solar Panels
-Weight 15 kg
NOTE: see full product specifications & further product info in the Description section on this page.
