Aussie Traveller 12V Premium Black Electric Doorstep

Description

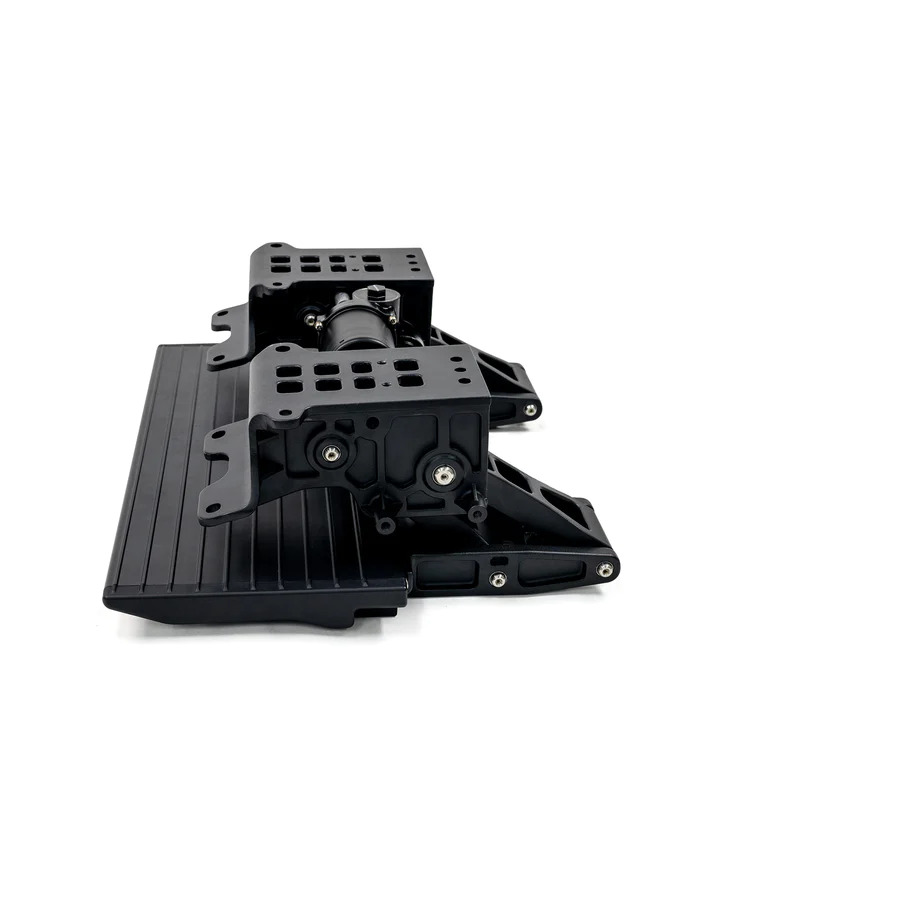

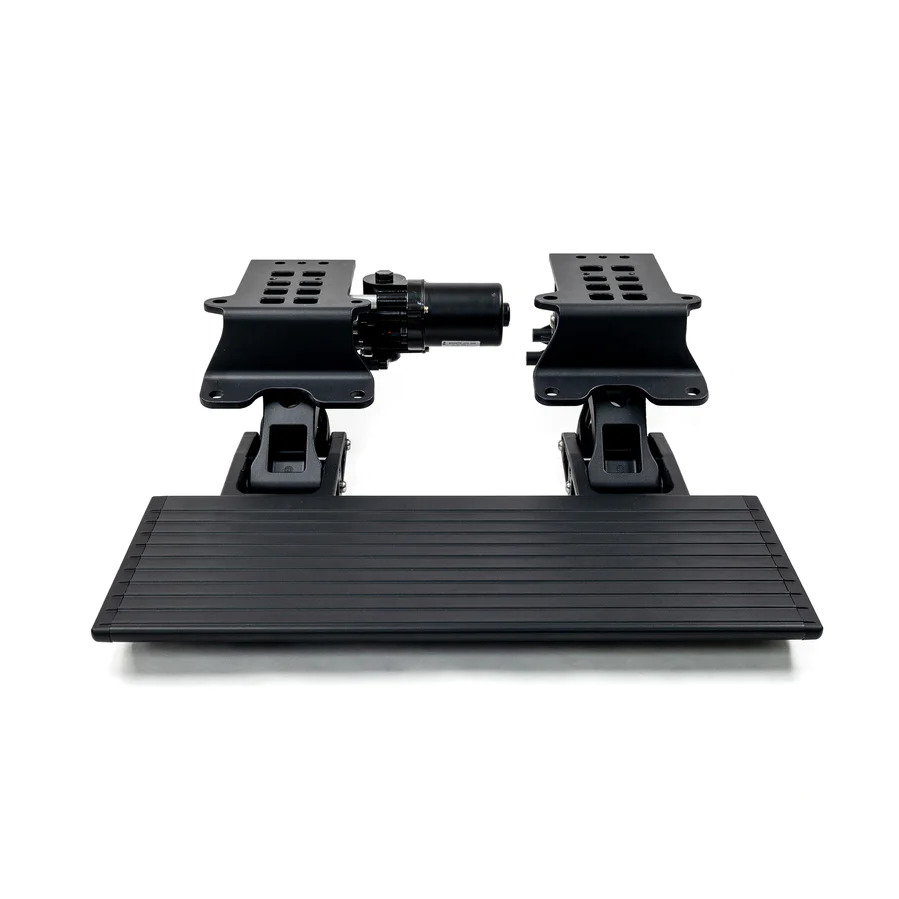

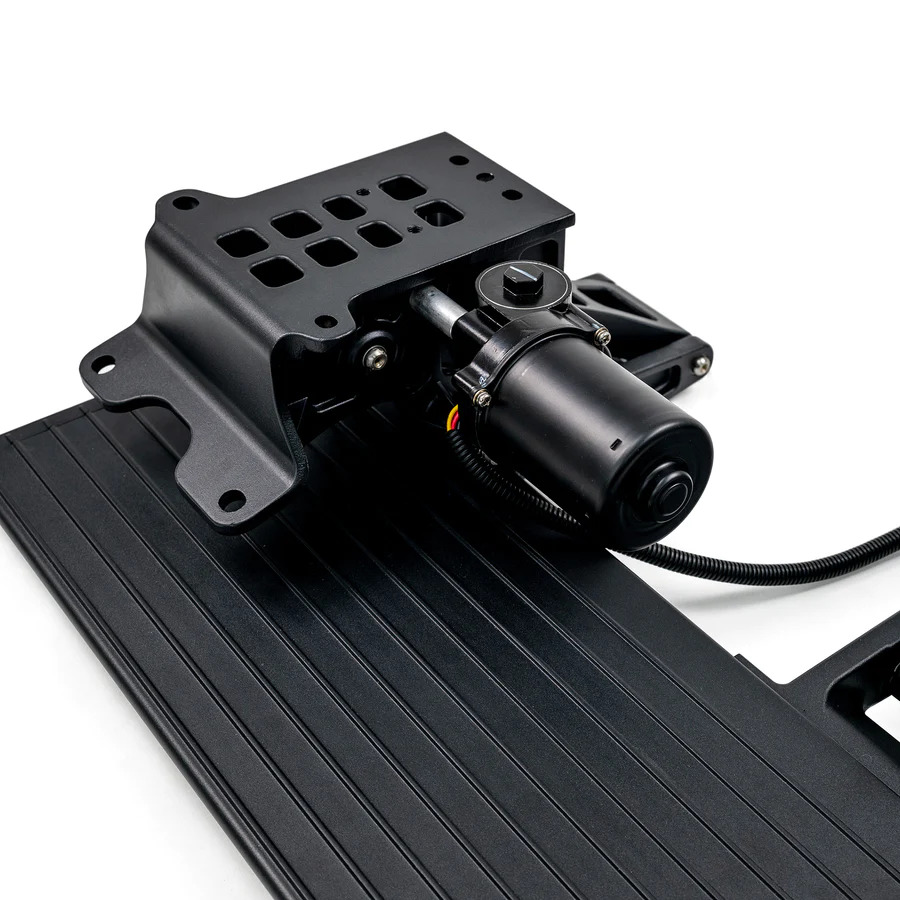

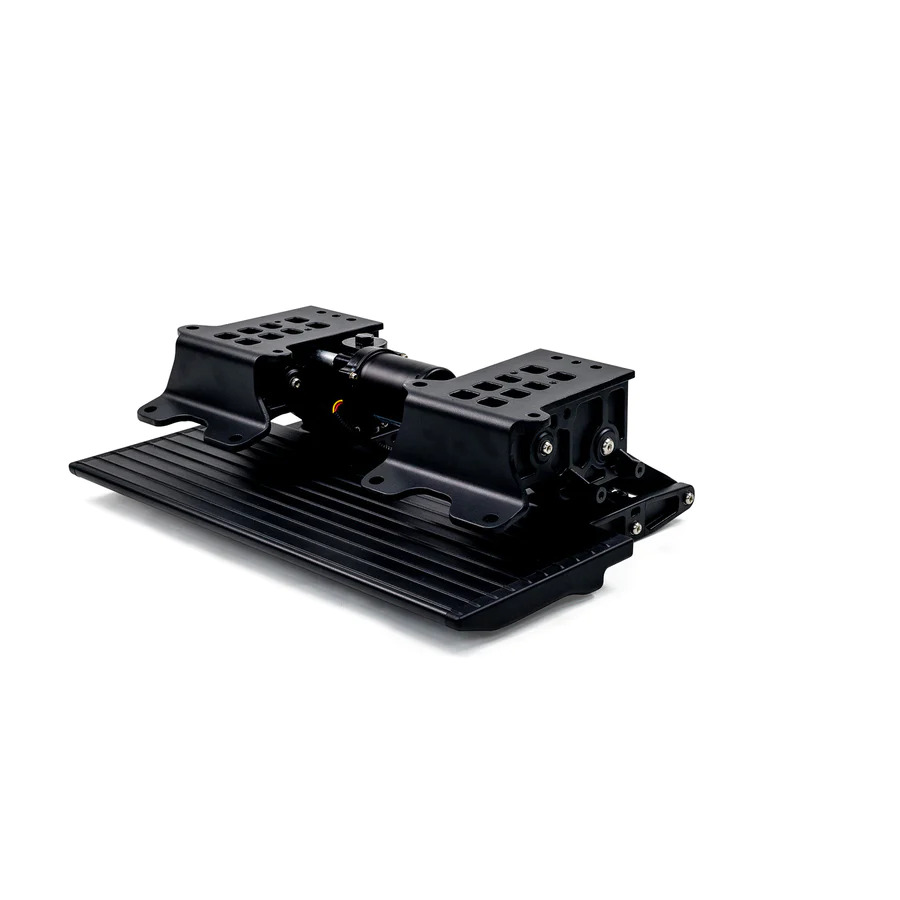

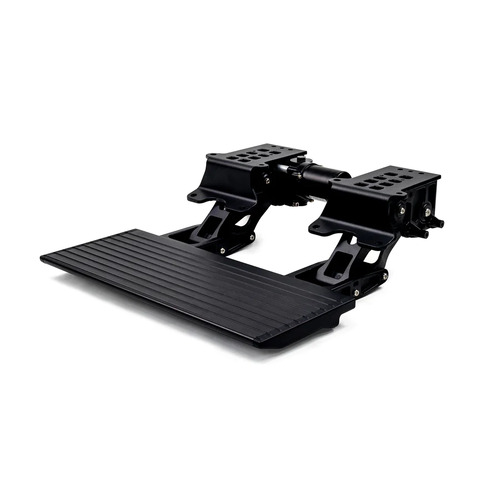

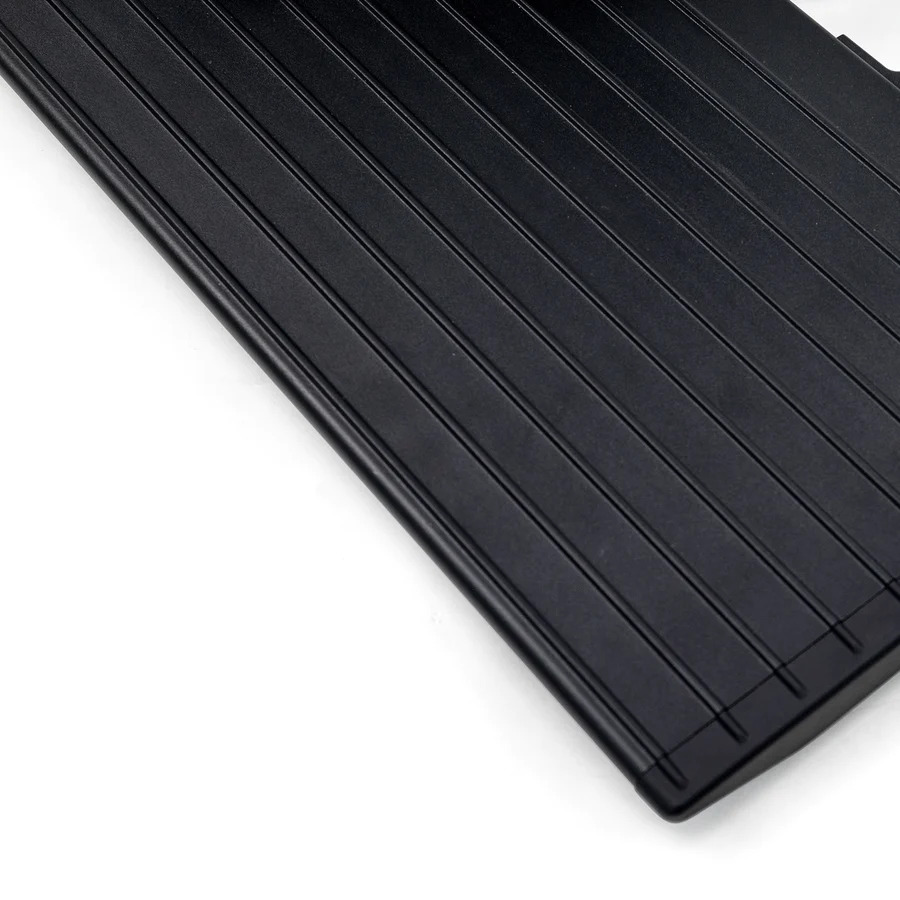

Aussie Traveller 12V Premium Black Electric Doorstep

Elevate your caravan set up with the Aussie Traveller Premium Electric Doorstep. Carefully crafted to enhance your travel experience, this step is designed to add a touch of luxury to your journey. The step automatically extends open when you open the door, eliminating the need to search for the switch or manually extend the step when entering or exiting your caravan or RV.

The Premium Electric Doorstep combines durability with a sophisticated matte black finish. Made from high-quality materials, designed to withstand the rigors of regular caravan use, while also enhancing the appearance of your vehicle. For added versatility the step can also be wired with a switch for full control on how you use the step.

Features:

• Sleek matte black fnish
• Automatically extends when caravan door is opened
• Strong & durable
• Compact when retracted
• Luxury level doorstep experience

Specifications:

• Dinemsions (W×L): 230×550mm
• Motion Spell: 2.0S for the EDS extension from beginning to the fullest extent and 2.0S for the EDS retraction from beginning to the fullest extent
• Voltage: Normal Voltage: 12V; Work Voltage: 6-12V (EDS stops working if the voltage <9V or >16V)
• Electrical Current: Non-load current of the motor: 2A; Max Instantaneous Current ≤7A; Locked Rotor Current  ≤30A
• Anti-Pinch Force: Protect users from being pinched as the EDS extends/retracts, with anti-pinch force ≤100N
• Door Step Endurance: 100,000 cycles of extension and retraction without anomaly
• Working Noise: Motor noise ≤50dB, overall noise ≤60dB
• Working Temperature: Working temp range for EDS: -40˚C to 85˚C
• Static Bearing Capacity: Greater than 280kg
• Motor Protection Grade: Protection Grade: IP67
• Vehicle Communication Inferface: Communication Interface: CAN/LIN
• Surface Spraying Salt Spray Test for over 720h and no surface corrosion detected
• H/L Temperature Endurance: The machine could still perform the two states(extension/retraction) over 100 times respectively after being placed in an environment with a temp of -40˚C for 40 hours, and then heated the environment to (+23±3) ˚C and kept it there for 4 hours.
• H/L Temperature SHock: The machine managed to demonstrate a smooth cycle of extension and retraction, and
• qualified anti-pinch force and the noise level
