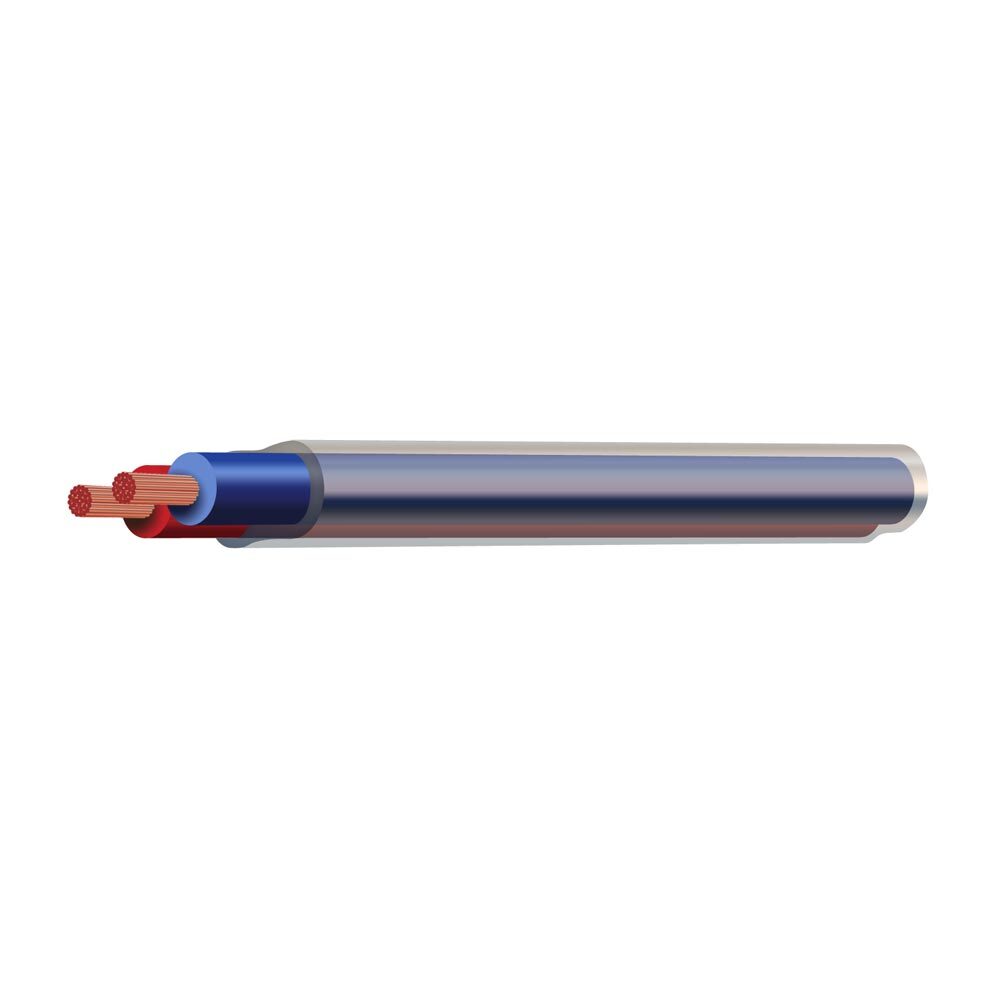

Auto Cable 50m Reel - 10MM Square Figure 8. LDX2CBB20A-CL-50
SKU: 500-08220 Learn More»![](/assets/thumbL/500-08220.jpg?20210309070207)
Description
Auto Cable 50m Reel - 10mm Square Figure 8 LDX2CBB20A-CL-50
V90HT PVC INSULATION AND SHEATH
Applications: Indoors and Outdoors, Motorised Vehicles, Fork Lifts, Field Conveyor, In High Quality Booster Cables, Battery and Starter
Conductor: Nominal 0.2mm OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: V90HT PVC to AS/NZS 3808 0.6/1KV
Core Colours: Red and Blue | LDX2CBB20A *** Red and Black
Sheath: UV Stabilised PVC type rated V90HT to AS/NZS 3808
Sheath Colour: Clear
Packs: 50 or 100 metres
Conductor No/Dia (mm) |
Nominal Area (mm²) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
**AMP Rating at 30°C |
Electrical Resistance at 20°C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
50/0.25 |
2.5 |
0.8 |
0.8 |
25 |
7.98 |
5.3 x 11.0 |
9.6 |
Specifications
SKU 500-08220
Brand Coast to Coast
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
