Baintech 12V 150Ah Standard Power Lithium Battery
SKU: BTLITH12150-SP Learn More»
Description

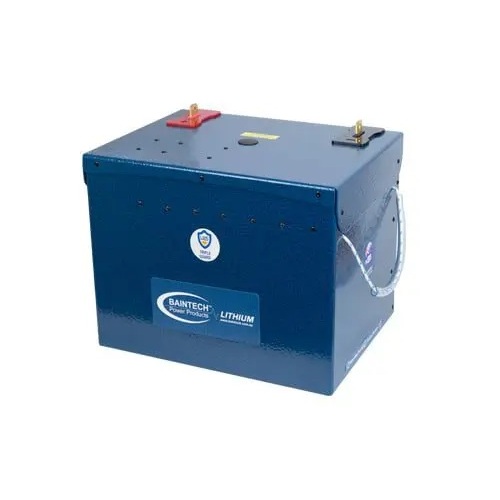

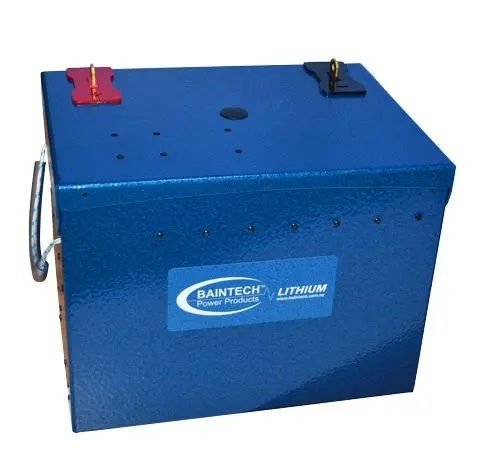

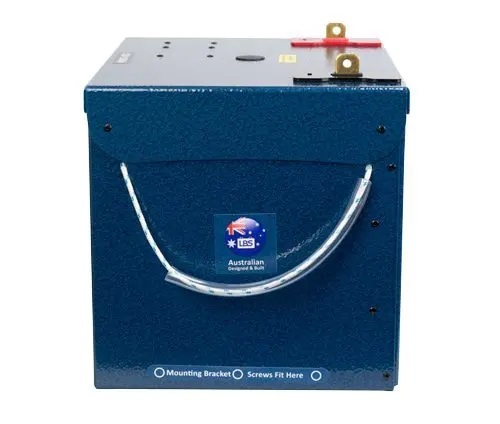

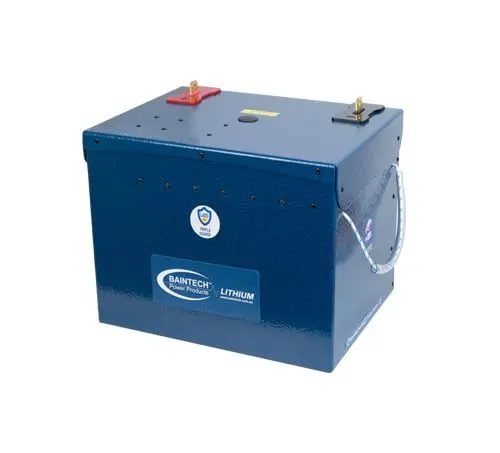

Baintech 12V 150Ah Standard Power Lithium Battery
Constructed using the latest lithium iron phosphate cells. These prismatic cells are the highest quality in a metal hard case. The battery has an inbuilt Battery Management System (BMS).
Designed for direct lead acid replacement, this light weight battery has around double the usable capacity at up to a third of the weight of a lead acid or AGM equivalent.
Connect chargers and loads to the convenient positive and negative M8 terminals. Comes with an external 100A MEGA fuse for easy replacement and battery protection.
The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect building block for next generation battery systems.
Why Baintech lithium batteries are superior to others in the market:
- Massive 5 Year Warranty
- Designed and assembled in Australia
- Custom designed BMS System by engineers in Brisbane
- Constructed using the latest lithium iron phosphate cells
- Local after-sales support
Features:
- Internal 100A BMS
- Strong aluminium enclosure
- External 100A fuse
- Fused POS & Unfused connection
- Lightweight 14kg
- Designed and fully assembled in Australia.
Specifications:
- Capacity : 150Ah
- Nominal Voltage : 12.8V
- Type : LiFePO4
- Charge Voltage : 14.6V max
- Charge Current : 100A max continuous
- Discharge Current : 100A max continuous.
- 200A Peak
- Operating Temp : 0-45C
- Weight : 14kg
- Life at 80% DoD : 2,000 cycles
- Life at 50% DoD : 5,000 cycles
- Size (LxDxH) : 326 x 245 x 260mm
- Height including terminals: 285mm
WHY LITHIUM?
Lithium batteries provide more usable capacity than lead acid batteries. Deep discharging does not affect the life of a lithium battery the way it does with lead acid batteries. You can use the battery longer before needing to recharge, without damage to the battery.
Cost Effective Over Life Cycle
When considering the usable capacity and lifespan of lithium batteries, they work out cheaper than lead acid. When you add the cost and inconvenience of refitting new lead-based batteries every few years the total cost of ownership over the long term is far better with lithium batteries.
Longer life
Lithium batteries are rated for 2,000 – 5,000 cycles and much more if used carefully, giving you several times the life expectancy of standard lead acid batteries
Powerful
Lithium batteries allow you to pull far more amps out of the same size battery systems
Light-weight
Lithium batteries are less than half the weight of the equivalent lead acid battery.
Fast recharge
Lithium batteries charge more efficiently, and don’t require as many stages during charging. Therefore, they will charge faster, and hold more of the energy from solar panels and other charging device
Specifications
SKU BTLITH12150-SP
Brand Baintech
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 150
Battery Length (mm) 326
Battery Width (mm) 245
Battery Height (mm) 260
Battery Weight (kg) 14
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
