Baintech 200W Folding Solar Blanket with 20A PWM

Description

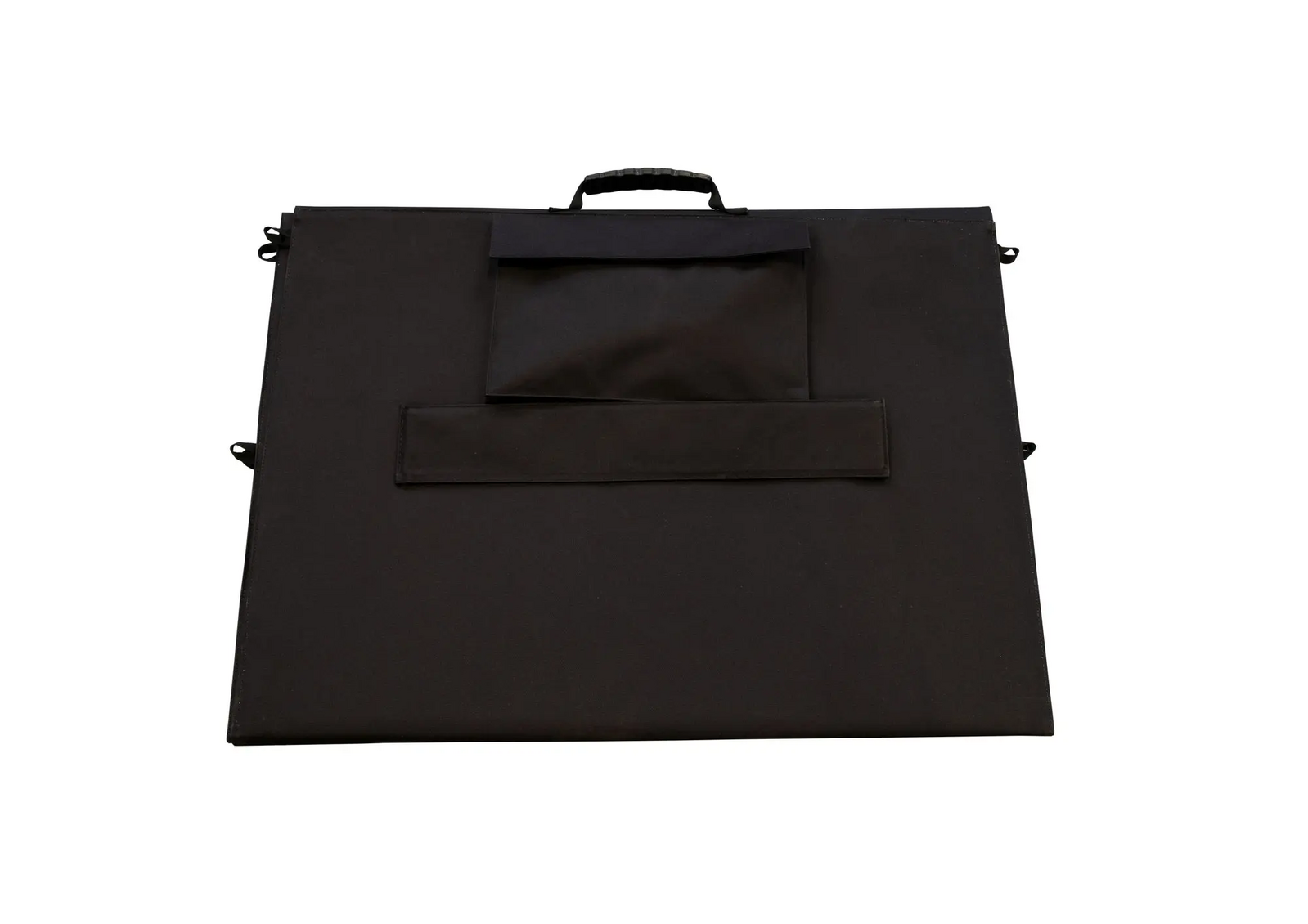

Baintech 200W Folding Solar Blanket with 20A PWM

Portable, light-weight, convenient! Keep your batteries charged, the esky cold and enjoy the great outdoors with the 200Watt Solar Blanket. Designed for 12v applications to suit your 4WD, Caravan, or Camper Trailer. Made from efficient monocrystalline solar panel cell technology so that even in cloudy conditions the output is higher than lower quality solar panels in the market.

ACCESSORIES INCLUDED: 20A PWM Solar Regulator,

Baintech Foldable Solar Blanket 200w – Black With Pwm Features:

• 200 Watts
• Monocrystalline solar cell
• Compact
• Light weight
• Easy to use – plug and play
• 20a PWM included

Features:

• Solar Cell – Mono Crystalline
• Max.power – 200w
• Open Circuit Voltage – 23.4v
• Short Circuit Current – 10.7a
• Working Voltage – 19.8v
• Maximum Current – 10.1a
• Weight – 9kg
• Folded Size: 689mm X 518mm

Solar Controller Specifications:

• Lithium Compatible – Yes
• System Voltage – 12v
• Charge Current – 20a
• Discharge Current 20a
• Max Solar Current – <50v
• Battery Equilization:
• Sealed- 14.4v
• Gel – 14.2v
• Flood – 14.6v
• Float Charge 13.7v (Default Adjustable)
• Discharge Stop – 10.7v (Default Adjustable)
• Discharge Reconnect – 12.6v (Default Adjustable)
• Usb Output – 5v, 2a
• Self-consumption <10a
• Operation Temperature – 35°c – 60°c
• Weight – 154g
• Size – 133x70x34
