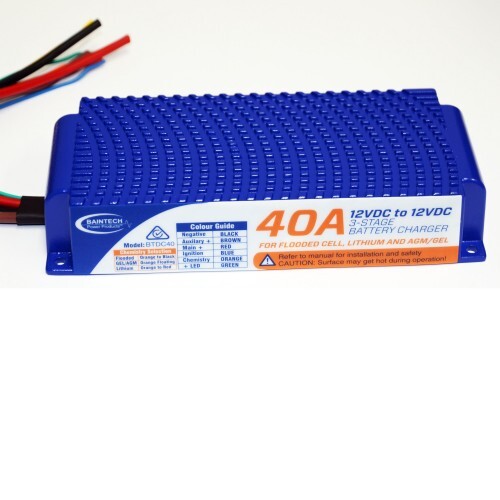

Baintech 40A 12V 3-Stage DC to DC Battery Charger

SKU: BTDC40 Learn More»
Baintech 40A 12V 3-Stage DC to DC Battery Charger
Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

Baintech 40A 12V 3-Stage DC to DC Battery Charger



Features:

  • 3-stage 12V booster battery charger
  • Output Current : 80A Max with optional kit. 40A max standard wiring
  • Selectable output voltages for Lithium, Sealed Lead Acid or Vented Lead Acid
  • Over Current and Temperature protections for extra product reliability
  • High Efficiency : Typical >96%
  • Precise under voltage protection : No need for external isolator
  • Remote LED indication for battery charge status
  • Very low standby current: <3mA
  • Optional Start Assist and boost charge features



Specifications:

  • Maximum Charge Current: 40 Amps
  • Input Operating Voltage Range: 11VDC to 16VDC
  • Maximum Charge Voltage for Flooded Cell: 14.5V
  • Maximum Charge Voltage for Lithium: 14.8V
  • Maximum Charge Voltage for AGM/GEL: 14.3V
  • Float Voltage: 13.5V
  • Lithium Maintenance Charge: 13.9V
  • Stand by Current: 0.003A
  • Minimum Input Startup Voltage: 12V
  • Maximum Operating Temperature: 70°C
  • Dimensions (LxWxH): 162 x 71.5 x 32.2 mm
  • Warranty: 2 Years


Show More

Specifications

SKU BTDC40

Brand Baintech

GTIN 9338936003774

Product Category Battery Chargers

Output Current Rating (Amps) 40

Dimensions 162 x 71.5 x 32.2 mm

Weight (kg) 2

Charger Voltage 12V
