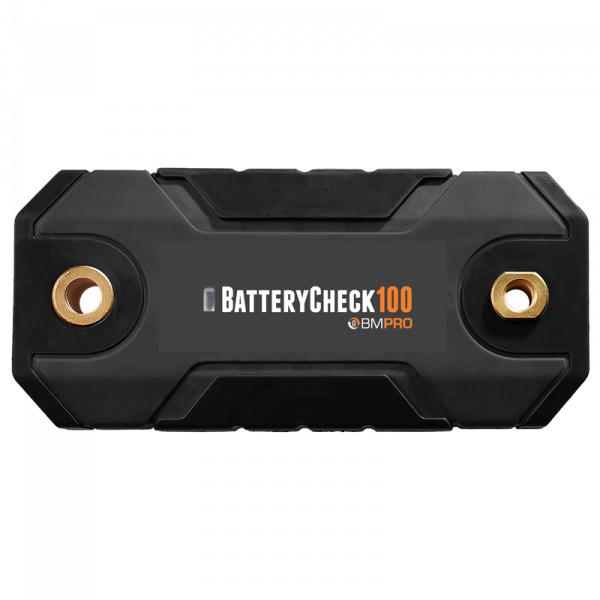

BMPRO BatteryCheck100 Wireless Bluetooth Battery Monitor
SKU: BMPBC100 Learn More»
Description
BMPRO BatteryCheck100 - Wireless Bluetooth Battery Monitor
Features
- Communicates with smartphones via Bluetooth
- Free BatteryCheck100+PRO app via Google Play and iTunes App Store
- Easy DIY installation – no mechanical expertise required
- Works with batteries in parallel (7Ah-800Ah battery bank)
- Internal shunt capacity – 100A peak, 80A continuous
- Compatible with any deep cycle 12V lead acid, AGM and gel battery
MONITOR YOUR DEEP CYCLE BATTERY VIA YOUR SMARTPHONE
With BatteryCheck100, you can really understand your recreational vehicle’s secondary battery when travelling. We all know that a simple measurement of voltage is not enough to really comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be 100% sure your battery is in good health and has enough power for your next adventure.
BMPRO’s BatteryCheck100 is a 12V battery monitor with the latest Bluetooth LE technology built in, so you can monitor your battery via smartphone with the app. The new and improved app is highly intuitive, clear and easy to use. Download BatteryCheck100+PRO app from Google Play store or App Store and set the monitoring in minutes.
BatteryCheck100 is compatible with a range of standard 12V deep cycle batteries. It provides real time battery management data that allows users to effectively monitor remaining battery energy via a simple to use app.
Specially designed for recreational vehicles’ deep cycle batteries, BatteryCheck100 allows monitoring up to 100A maximum charge or discharge. BatteryCheck100 is not suitable with engine cranking applications of any type and is not intended for under vehicle bonnet use.
Battery paramaters monitored
- Voltage and Temperature
- Charge/Discharge Current
- State of Charge (SoC)
- State of Health (SoH)
- Estimated Discharge Time Remaining
- With Bluetooth battery monitor BatteryCheck100, you’ll always have enough power to keep your adventures on track.
For high current requirements and to monitor LiFePO4 batteries, the BatteryCheckPRO is recommended.
Key differences between the BatteryCheck100 and BatteryCheckPRO
| BatteryCheck100 | BatteryCheckPRO | |
|---|---|---|
| Current Measurement Range | 100 A | 300 A |
| Overload Protection (100ms w/out damage) | 300 A | 800 A |
Specifications
- Input Voltage Range: 8V to 16V
- Voltage Measurement Resolution: <20mV
- Continuous Current Rating: 80A
- Current Measurement Range: 100A
- Current Measurement Resolution: <20mA
- Overload Protection (100ms w/out damage): 300A
- Monitored Battery Capacity: 7Ah to 800Ah
- Temperature Measurement Range: -20 °C to 70 °C (at Battery Terminal)
- Temperature Measurement Resolution: 1 °C
- Dimensions: 140mm x 65mm x 18.6mm
- Weight: 520g
.png)
Specifications
SKU BMPBC100
Brand BMPRO
GTIN 9358381000098
Product Category Battery Monitors
Dimensions 140 x 65 x 18.6 mm
Weight (kg) 0.52
NOTE: see full product specifications & further product info in the Description section on this page.
