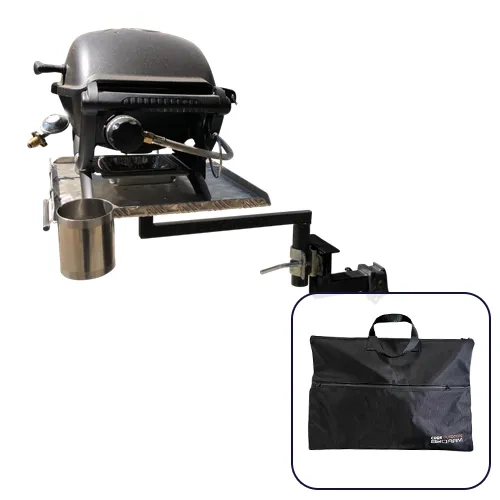

BBQArm Kit for Vehicle Tow-Hitch Mount - Regular Tray, 650 mm Arm, Tow-Hitch Mount

Specifications

SKU BQA650-1000-VTM

Brand BBQArm

Product Category Caravan Accessories and Extras

NOTE: see full product specifications & further product info in the Description section on this page.

Q & A

• What is the BBQArm?

  The BBQArms are designed to create more space for people on the move. It is a swing-away arm designed to attach to your caravan or vehicle.

  1. Mounting Bracket: There are two mount options of the BBQArm:
     Universal Drawbar Mount - designed to fit most caravan/camper drawbars/a-frames. The mount will fit without any welding or drilling.
     Vehicle Tow-Hitch Mount - The vehicle mount is designed to fit most Hayman Reese style tow-hitch receivers.

  2. Arm: The arms are made from galvanised, black textured power-coated tube. You are able to custom your BBQArm by choosing between 3 lengths:
     650mm
     850mm
     1000mm

  3. Tray: The BBQArm have two different tray sizes, either regular or large. They are both aluminium chequer-plate with approx. 20mm upturned edges.
     Regular size: 560 x 360 mm - This model is designed for BBQ such as Weber BabyQ and Weber 2000.
     Large size: 700 x 500 mm - The large tray is designed for bigger models such as Ziegler Browns, Ziggys and Weber Family.
• Can the BBQArm & BBQArm-Mate tolerate the Australian Climate?

  Yes it does, the BBQArm are designed for outdoor use in the Australian Conditions.

• I’m looking at the BBQArm Mate model, what is designed for?

  The Mate model is a light-weight aluminium swing-arm that is designed to attach to your BBQArm model. The Mate creates a additional side table for your BBQ needs.

• After use, do I need to remove the BBQArm/BBQArm-Mate from my caravan?

  The arm and mount of the BBQArm is designed to stay on at all times. However, the BBQ and tray will need to be packed away for travel.

• When installing the BBQArm on my caravan, do I install it on the front drawbar or on the rear bar?

  Great question!

  The BBQArm for caravan mount can fit either front or rear! However, you will need to consider the length of your arm to ensure enough space depending on installation. The arm lengths vary between 650 mm to 1000mm.

• I want to use the BBQArm on my tow vehicle, am I able to?

  The BBQArm model for the tow-hitch mount will fit your 50mm Hayman Reese style tow-hitch receiver.

  However, if you already have a BBQArm model for your caravan or van, you are able to purchase the additional Vehicle Tow-Hitch Mount (bracket) and your arm & tray can be used on both caravan & vehicle mounts.

• What is the total capacity of the BBQArm models?

  The BBQArm models are designed for portable camping BBQs and have a capacity of up to 30 kg. However, it can also be used as a drink table, bench top, bait board or kitchen preparation.

• How heavy are the BBQArm models?

  Both two BBQArm models are between 7.5-8.5 kg including the arm, tray and mount. The larger tray is heavier than the regular sized tray.

• How do I know what tray size I need?

  Great question!

  There are two sizes of the BBQArm trays - Regular or Large.

  The Regular is designed to fits BBQs as Weber Baby Q and Q2000. The regular size is 560mm x 360mm.

  While the Large tray is designed to fit larger BBQs as the Weber Family and Ziggy BBQs, with a size of 700mm x 500mm. So make sure to measure the BBQ you have to find out what tray will be best for you.

• How do I assembly my BBQArm with Vehicle Tow-Hitch mount to my tow-vehicle?
  1. Start with sliding the BBQArm Mount onto your tow-hitch receiver.
  2. Second slide in your locking pin.
  3. Make sure to unwind the handle to loosen the clamp at the front.
  4. When you have done the above steps, you are able to place the arm into the correct position and tighten the handle.
  5. When the arm is in place, the tray can be place into the square tube end of the arm.
  6. Last thing is to ensure that the locking screw/wing-nut are tightened to reduce any movement of the BBQArm.
