Bendix Ultimate 4WD Brake Upgrade Kit with 2 inch Lift to suit Toyota Hilux (2005-2015) GGN25 & (2005-2015) KUN26

Description

Bendix Ultimate 4WD Brake Upgrade Kit with 2 inch Lift to suit Toyota Hilux (2005-2015) GGN25 & (2005-2015) KUN26



The Bendix Ultimate 4WD Brake Upgrade Kit with advanced brake pads and rotors, braided lines and a host of ancillary items is the ultimate brake upgrade for the latest 4WD vehicles such as Ranger and Hilux.

Built tough for Aussie conditions

The comprehensive kit includes specially compounded high performance ceramic material brake pads for increased stopping power in extreme conditions plus the latest Bendix Ultimate Rotors designed and developed specifically for Australia’s demanding conditions.

High performance

The outcome from the high performance brake kit with the technically advanced additional strength ceramic brake pads and the Ultimate slotted rotors also results in a firm brake pedal that won’t over expand under pressure, a reduction in brake dust and braking noise along with thermal stability in high temperatures and resistance to brake fade.

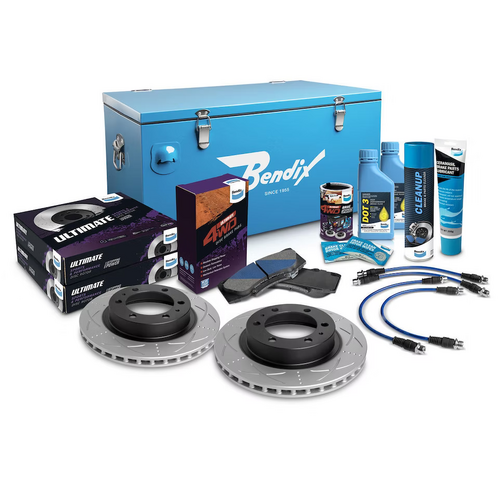

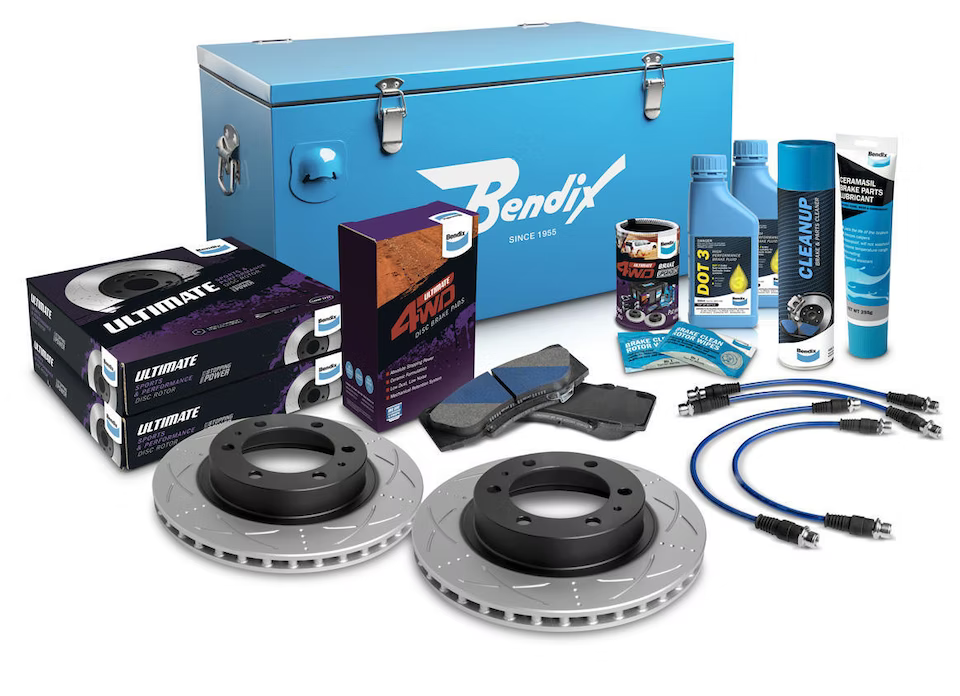

Kit Contents:

• 2 x Ultimate Brake Rotors
• 1 x Set of Ultimate 4WD Brake Pads
• 1 x Vehicle Set Ultimate Brake Hose
• 1L Heavy Duty Brake Fluid
• 1 x Can Bendix Cleanup
• 1 x Tube Ceramasil Brake Parts Lubricant
• 1 x Bendix rotor wipes
• 1 x 60L Icebox



Vehicle Compatibility:

Toyota Hilux (2005 - 2015) [GGN25]

• TOYOTA HILUX 4.0 {175 kW} AWD Platform/Chassis [GGN25]
• TOYOTA HILUX 4.0 {175 kW} AWD Ute [GGN25]

Toyota Hilux (2005 - 2015) [KUN26]

• TOYOTA HILUX 3.0 D {120 kW} AWD Ute [KUN26]
• TOYOTA HILUX 3.0 D-4D {126 kW} AWD Platform/Chassis [KUN26]
• TOYOTA HILUX 3.0 D-4D {126 kW} AWD Ute [KUN26]

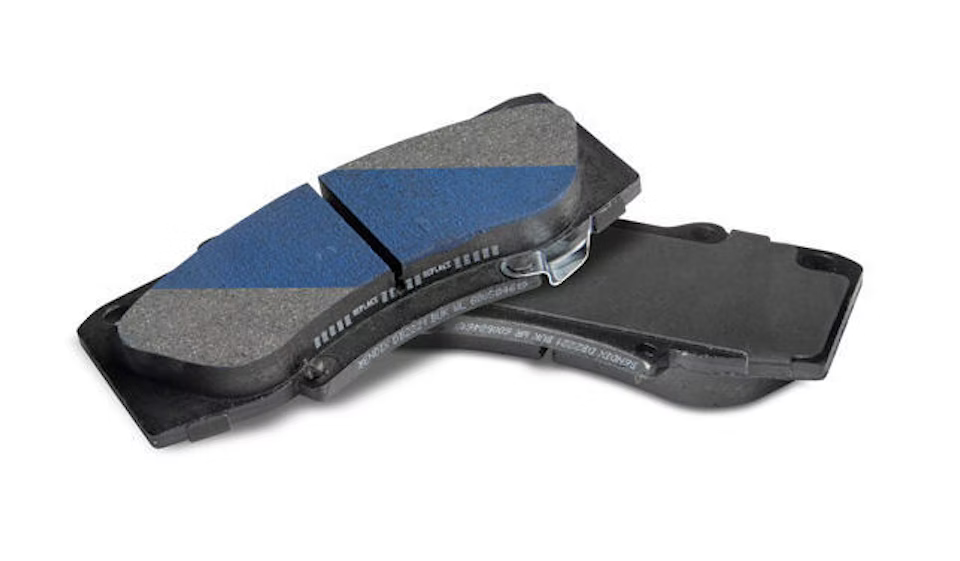

Ultimate 4WD Brake Pads

Designed to meet Australia’s tough 4WD conditions, the Bendix Ultimate 4WD Brake Pads deliver increased stopping power when you need it. The high performance brake pads utilise a specially compounded high performance ceramic material that functions in extreme conditions.



Features:

• Ceramic Material
• Mechanical Retention System Backing Plate
• Designed For Slotted Rotos



Benefits:

• Low Dust, Low Noise, while providing high temperature stability and excellent fade resistance.
• MRS technology used in commercial vehicle brake pads, for improved pad attachment strength, for heavy duty operating conditions.
• Works best with slotted rotors, delivers confident stopping in all conditions.

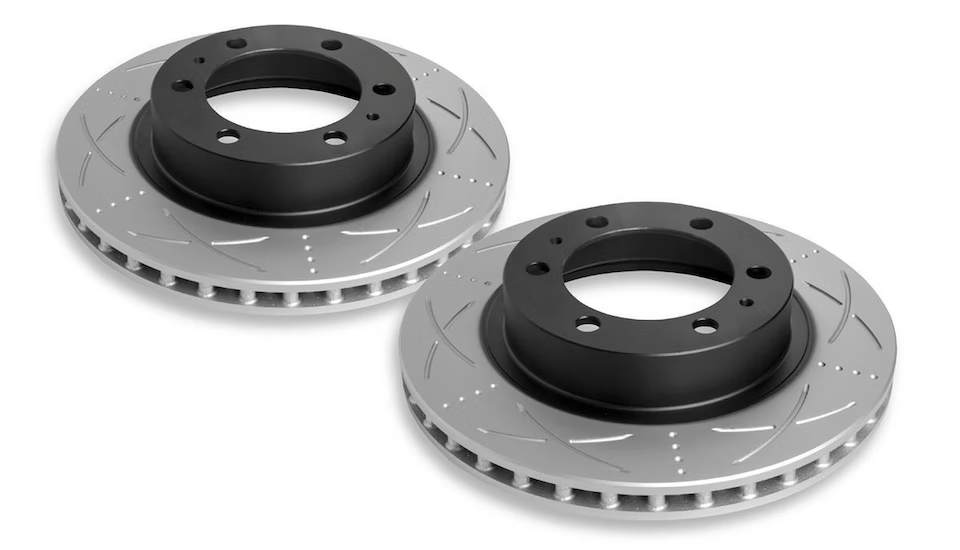

Ultimate 4WD Disc Brake Rotors

Ultimate 4WD Disc Brake Rotors are manufactured to the highest level of precision engineering based on OEM specifications and incorporate innovative technology such as 4WD Metallurgy for increased braking performance plus special diamond tip slots and a special bi-directional pillar design to quickly and efficiently expel gases, water, dust and grit. Together this provides the driver with absolute control when braking in extreme conditions with instant response and even friction.



Features:

• 4WD Metallurgy
• Diamond Tip Sot
• Swiftfit
• Pillan Construction



Benefits:

• G3000 disc brake rotor manufactured using SAE J431 material standards, robust, higher strength, wear resistance for durability in all conditions. Designed to withstand the demanding punishment that your 4WD dishes out.
• Allows gasses to escape in heavy duty driving, delivering consistent output. Better self cleaning for off road conditions.
• Protective zinc coating which is ready to fit.
• Improved thermal stability.

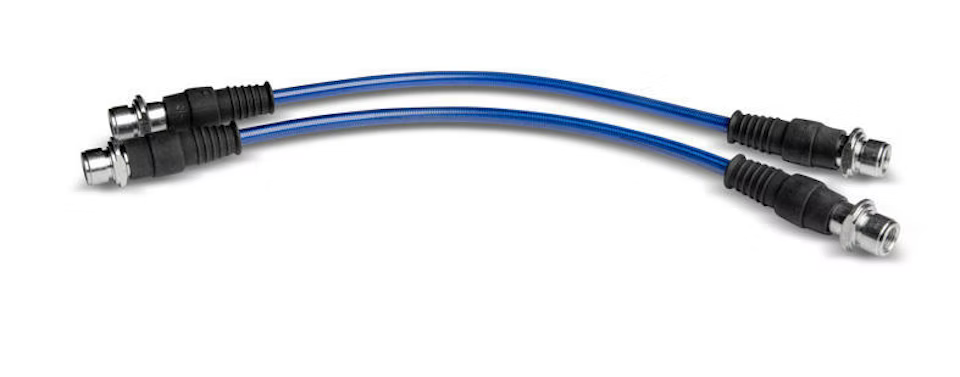

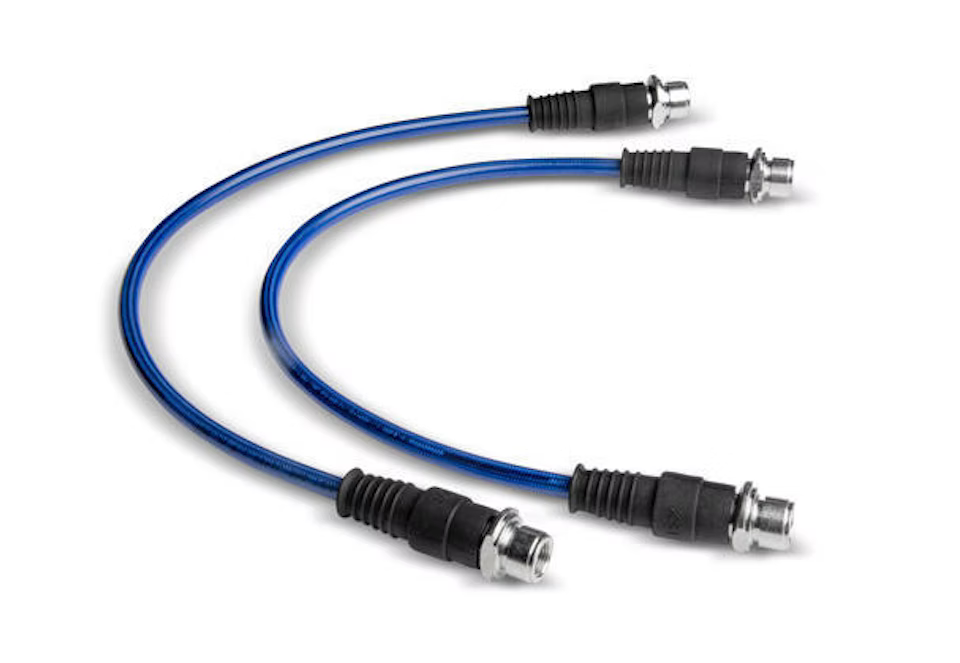

Ultimate Brake Hose

Easy to fit braided brake hoses with a protective sleeve are included with each designed and manufactured in compliance with SAE J1401 specifications.



Features:

• Braided Line with Protection Sleeve
• Meet SAEJ!401
• Designed to Fit



Benefits:

• Delivers a firm brake pedal, that won’t over expand under high pressure.
• Compliant to international design standards, won’t affect warranty.
• Fits your application without any modification.
