Black Jack Electric Trailer Jack Bundle with Jockey Wheel
SKU: FD-1000-JW Learn More»
Description

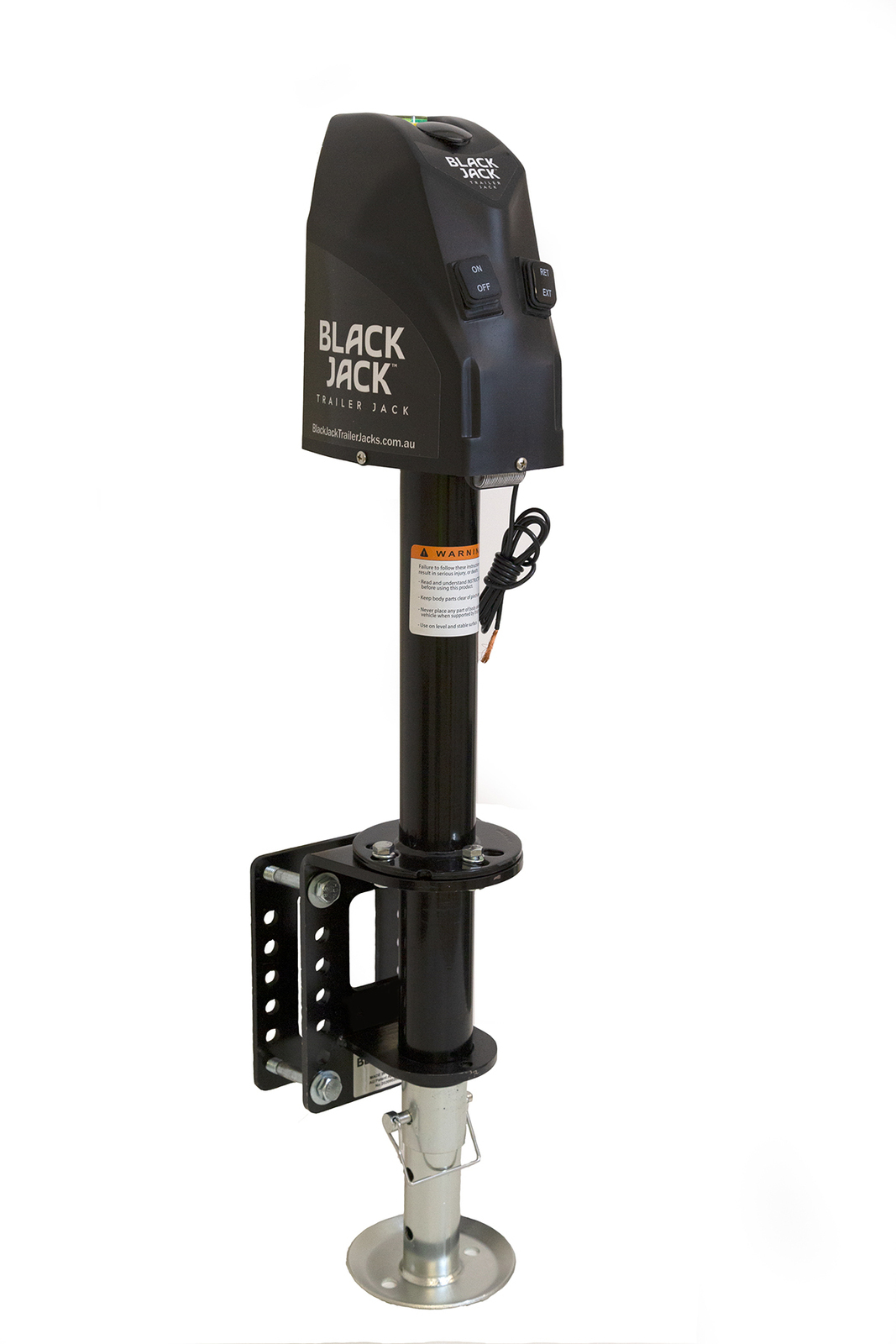

Black Jack Electric Trailer Jack Bundle with Jockey Wheel
The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. FD-1000-JW Includes clamp bracket, bolt kit, folding foot, foot pad,jockey wheel and all weather cover (No wiring kit, just connect to an Andersen plug)
Kit Includes:
- 1x Black Jack Electric Trailer Jack

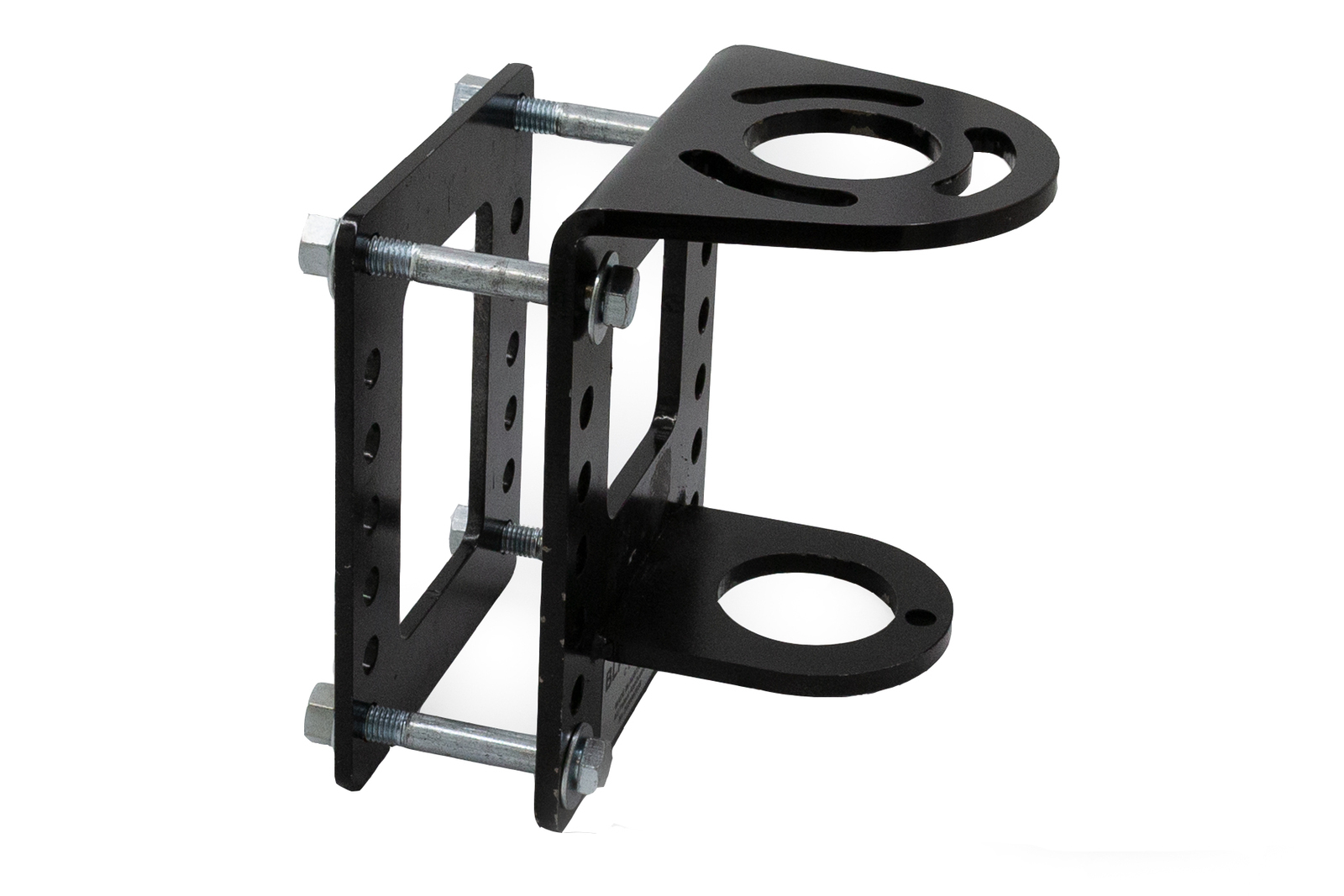

- 1x Black Jack Clamp Patented
- 1x Black Jack Folding Foot
- 1x Black Jack Foot Pad
- 1x Black Jack All Weather Cover
- 1x Black Jack Jockey Wheel
Features:
- 1600 kg lifting capacity, more than enough muscle
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ – 1001)Free all weather cover to keep the rain out
- Total weight including Black Jack Clamp 17kg
- Black Jack cable length is 1.3m
Note: This product does not come with the wiring harness. The Wiring harness can be purchased individually here Black Jack DIY Harness Kit SKU: BJTJ-HAR or as a bundle with the Electric Trailer Jack here Black Jack Electric Trailer Jack Bundle with Harness kit & Jockey Wheel.
Also Included is the Black Jack™ Jockey Wheel:
The Black Jack Trailer Jack Jockey Wheel are designed to easily connect to the shaft in just a few easy steps. Simply remove existing Extension foot supplied by releasing the clip-pin. Position and align the Jockey Wheel in its place and insert the clip-pin in the holes provided. Makes swapping from one to the other a breeze and making manoeuvring your trailer or caravan a simple exercise.
Heavy duty but also light weight provides a great travel accessory in doubling up as a Jockey wheel and not just a Jack stand. It’s also designed to protect damaging hard surfaces such as driveways or pavements.
- Easy interchangeable design.
- Light weight and compact to take travelling on the road.
- Doubles as a Jockey Wheel, not just a Jack Stand.
- Have a non-stick surface, easy to clean.
- Are corrosion, oil and chemical resistant.
Specificatiions
- Wheel Diameter: 15cm
- Height: 22cm
- Weight: 17kg
- Maximum Load: 540kg
Specifications
SKU FD-1000-JW
Brand Black Jack
Product Category Jockey Wheels and Jacks
Maximum Load Capacity (kg) 1600
Weight (kg) 17
Overall Dimensions H 781 x W 216 x D 140mm
Engine / Motor Type Sealed brushless motor
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Do I need power to run my Black Jack?
Yes, you require 12V power to run your Black Jack. This can be achieved via an Andersen plug to your caravan battery or your vehicle battery through the tow connection point.
-
What is the lifting capacity of a Black Jack?
The Black Jack has a 1600kg lifting capacity, more than enough for all caravans in todays market
-
Do I require the Harness Kit?
You will only need the harness kit if you don't already have 12V power at your connection point, ie Andersen plug on tow vehicle and/or caravan battery.
-
How long is the cable that comes attached to the Black Jack?
1.3m
-
How high will the Black Jack go up?
The Black Jack has a stroke of 560mm, if you require more you can utilise the RedFoot Big Block to increase your stroke length.
-
Do I have to take off the Black Jack when travelling?
No, provided you have securely attached the Jack using the supplied clamp and the leg and foot plate is fully retracted.
-
I need new tracks for my Camper Trolley but there are two types, what is the difference and which one should I get?
The bevelled tracks are for pre 2019 trolleys and any post 2019 trolleys require the square tracks.
Reviews
Black Jack Trailer Jack
By: David Moules on3 August 2024
Great product been wanting one for a long time caravan Rv Camping services were great will buy from you again
Blackjack
By: Craig Edwards on10 June 2024
Good delivery times the electric jack was easy to install with good instructions that were easy to follow. Jack works well a bit slow but better than winding my arm up..
Blackjack
By: Craig Edwards on10 June 2024
Good delivery times the electric jack was easy to install with good instructions that were easy to follow. Jack works well a bit slow but better than winding my arm up..
Warranty
Warranty Period: 3 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
