Black Jack MAXI Electric Trailer Jack with Clamp
SKU: BJTJ-Maxi-1000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

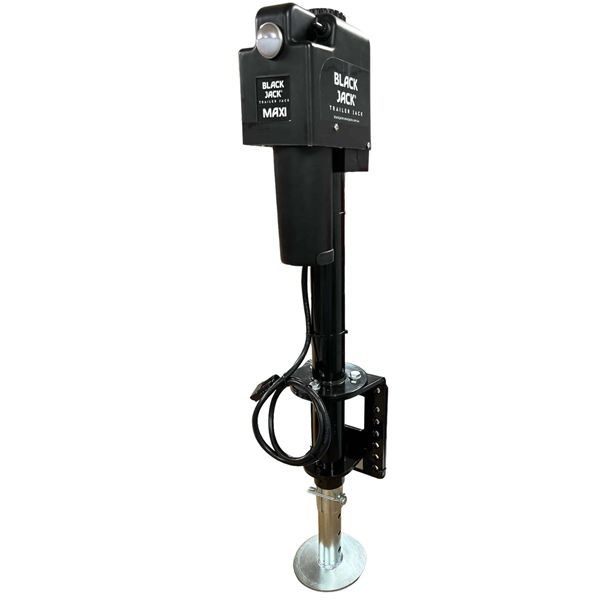

Black Jack MAXI Electric Trailer Jack with Clamp
The new generation of electric trailer jack technology. The Black Jack Maxi is a quantum leap in technology and represents the new generation of Black Jacks. Incorporating an Intelli-Brake motor that automatically cuts power to the jack at either fully retracted or fully extended. Remote control operation allows for easier hitching and unhitching and makes levelling your caravan a breeze. The new Black Jack Maxi boasts a ball bearing worm drive that is twice as efficient, faster and quieter, and generates a massive lift capacity of 2,000kg. All Black Jack Maxi’s come with a Pre-installed Anderson plug for easy “Plug and Play” connection. The kit includes-
- The new Black Jack Maxi

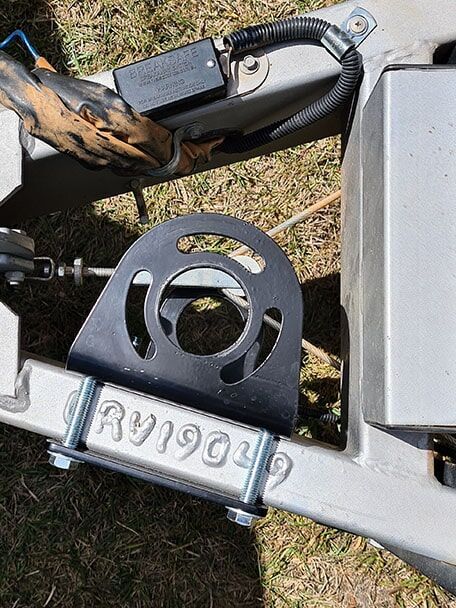

- Patented Black Jack Clamp with full bolt kit
- Folding Foot and Adjustable Foot

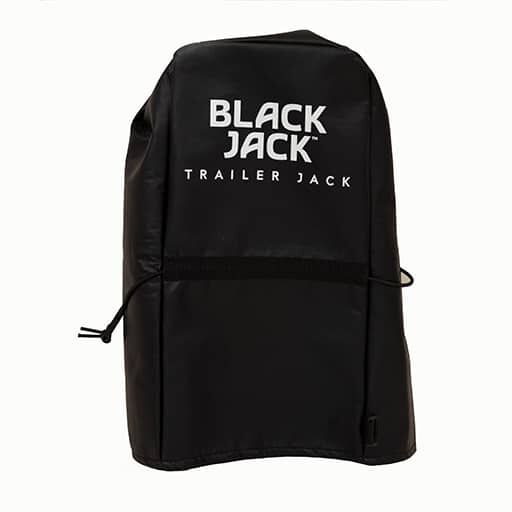

- All Weather Cover

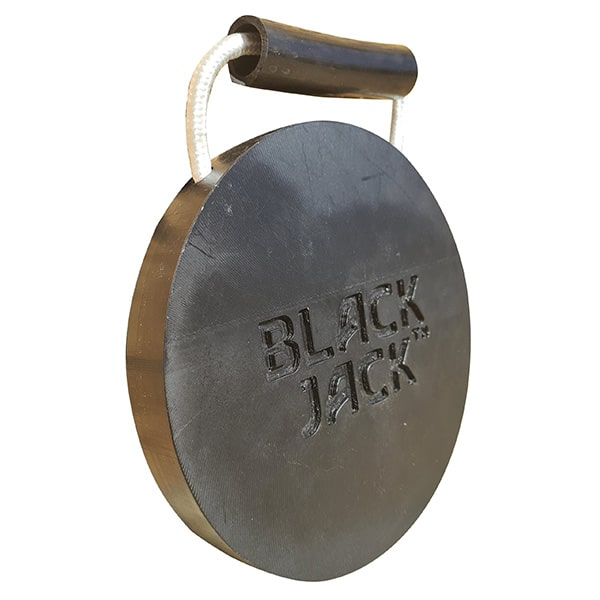

- Black Jack Soft Ground Foot Pad

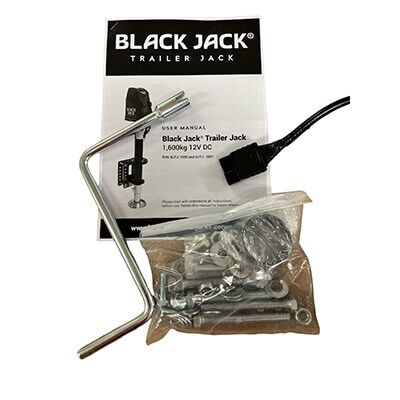

- Manual Handle
- An installation wiring harness is also included with BJTJ-Maxi-1001. This harness includes a pre-wired Andersen plug at one end, a 30amp inline fuse, and battery terminals at the other end. The 5 meters of positive and negative B&S # 8 wires are encased in a protective cover.
Features:
- 2,000 kg lifting capacity, more than enough muscle
- Auto power cut-off at full extension and full retraction
- Optional remote-control operation
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 450 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Tough powder coated finish
- Pre-wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ-Maxi-1001)
- Free all-weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg

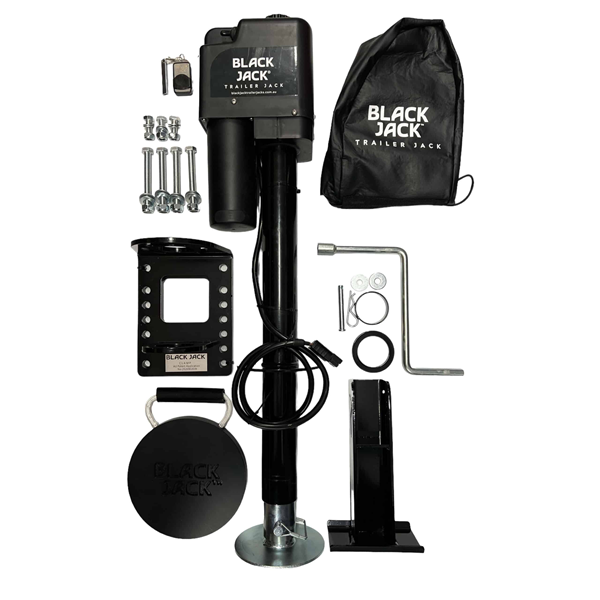

Kit Includes:
- 1x Black Jack Maxi Electric Trailer Jack

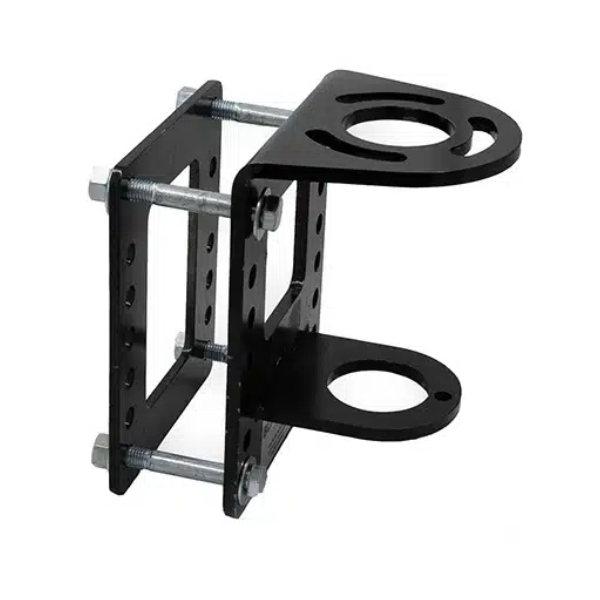

- 1x Black Jack Clamp Patented (Part No. BJTJ-BKT)

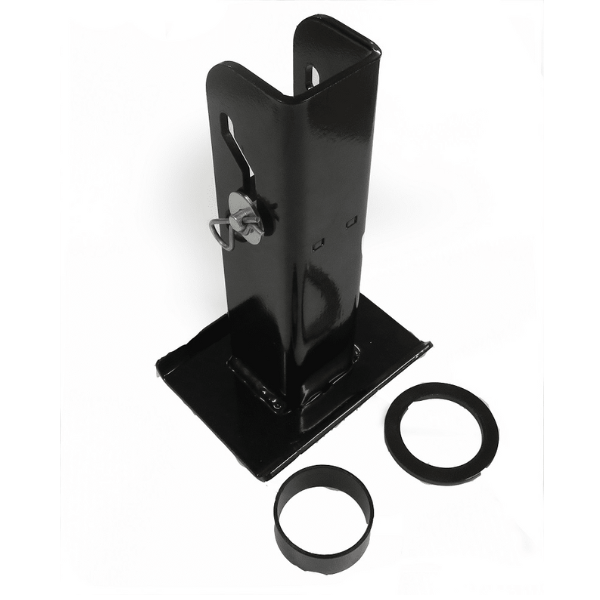

- 1x Black Jack Folding Foot (Part No. BJTJ-FF)
- 1x Black Jack Foot Pad (Part No. BJTJ-FP)
- 1x Black Jack All Weather Cover (Part No. BJTJ-Cover)
- Note: Does NOT include 5.0m wiring harness to connect the Black Jack to house battery
Specifications
SKU BJTJ-Maxi-1000
Brand Black Jack
GTIN 0726436304030
Product Category Jockey Wheels and Jacks
Weight (kg) 17
Engine Type Intelli-Brake Motor
Lifting Capacity 2000 kg

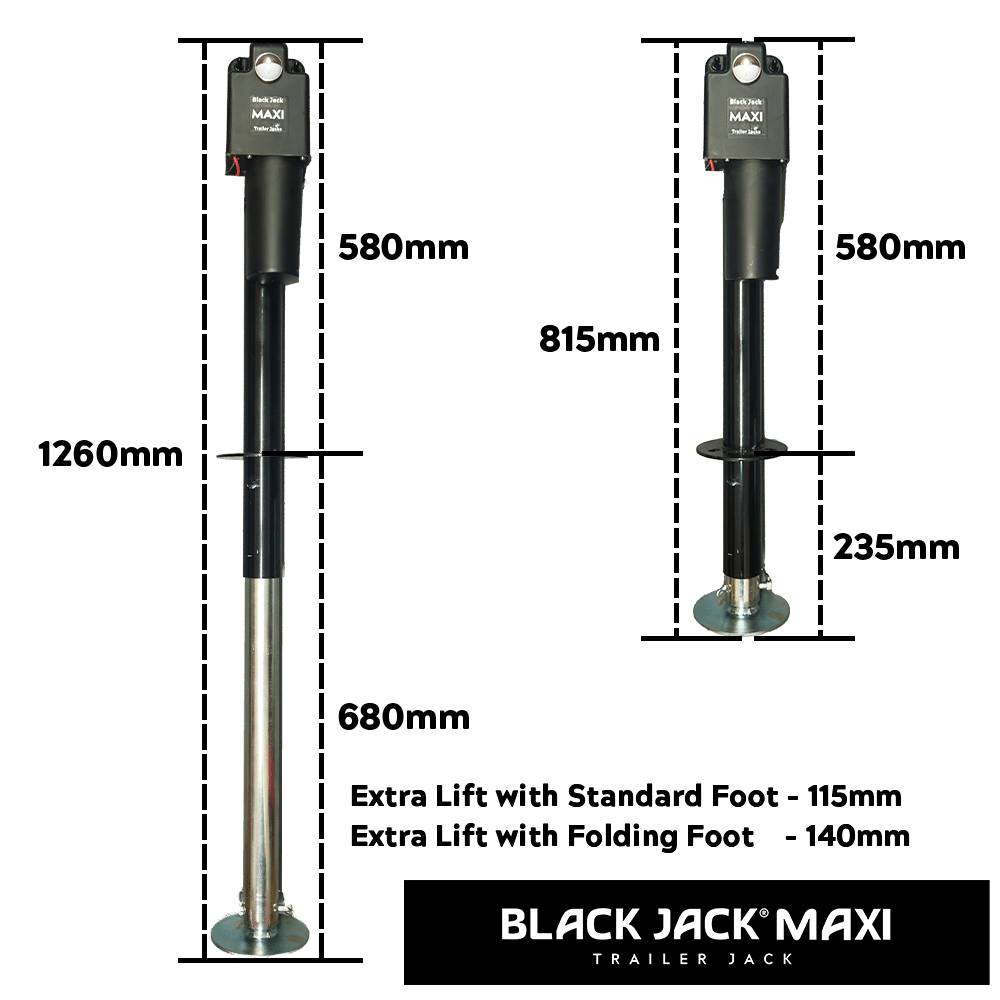

Dimensons 1260mm Length, 115mm extra lift with standard foot, 140mm extra lift with folding foot
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Will the Black Jack Maxi fit my existing Jockey Wheel Clamp?
A standard jockey wheel's diameter is 50mm, the Back Jack Maxi is more robust at 60mm. So, the Black Jack will not fit in a standard jockey wheel clamp.
-
Is the Black Jack Maxi gas compliant?
Yes the Black Jack Maxi has been tested and is fully compliant with the Australian gas standard AS/NZS 5601.2:2020 + A1:2021.
-
How is the Black Jack Maxi powered?
All Black Jacks come pre-wired to a 50A Anderson plug, and require constant 12V power to operate. If your car or caravan does not have a suitable Anderson plug, consider our wiring harness.
-
How much power does the Black Jack Maxi draw during operation?
The Black Jack will pull 6A with no load, and a maximum of 28A under the maximal load of 2000kg.
-
How much lift can the Black Jack Maxi give me?
The Black Jack Maxi can give a max lift of up to 590mm.
