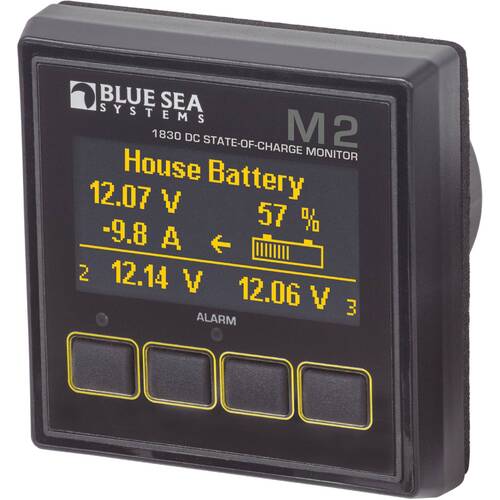

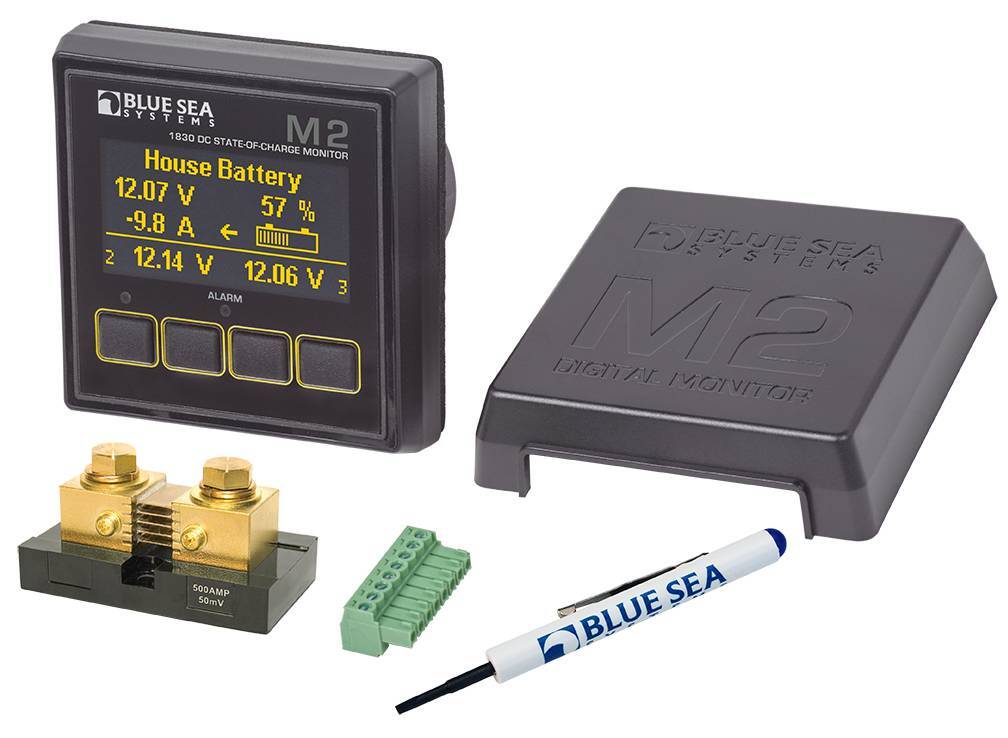

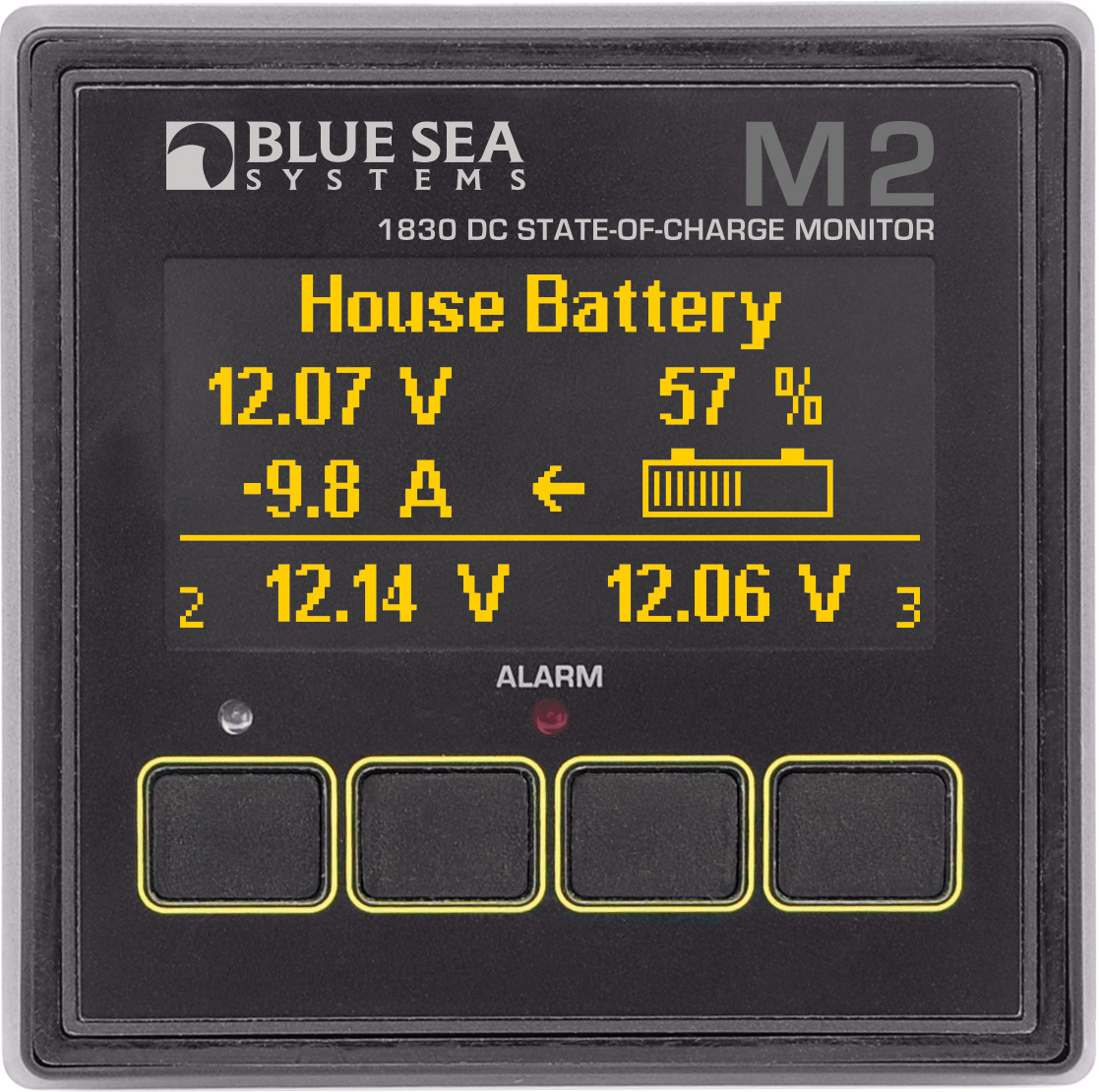

Blue Sea M2 DC OLED Multimeter Monitor with SoC
SKU: BS-1830B Learn More»
Free Shipping
$669
In StockThis product is built to order. Build time 4 weeks
$714
Description
Blue Sea M2 DC OLED Multimeter Monitor with SoC
Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.
Features:
- Accurately measures and monitors State-of-Charge of 1 bank
- Measures 3 voltages and 1 current
- Supports programmable shunt ratios
- External relay activation
Specifications:
- Meter: Current, State-of-Charge, Voltage
- Function: 8 to 70V to 5000A
- Maximum Voltage: 12V 24V 48V
- Resolution: 0.01V DC
- Input Voltage: 7-70V DC
- Alarms:High Current/ High/Low Voltage / Low Battery
- Current Range: -500 to 500A
- Display Size: 55mm x 28mm
- Maximum Power Consumption: 1.00 Watt
- Minimum Power Consumption: 0.3 Watt
- Voltage Accuracy: ± 1.0%
- Weight: 1.81 kg
Drawing Dimension
Mounting Dimension
