Bluetti AC200MAX Expandable Power Station 2048W with MP200 200W Portable Solar Panel
SKU: AC200MAX-MP200 Learn More»









Description
Bluetti AC200MAX Expandable Power Station 2048W with MP200 200W Portable Solar Panel
Includes:
- Bluetti AC200MAX Expandable Power Station 2048Wh, AC200MAX-AU-GY-BL-00

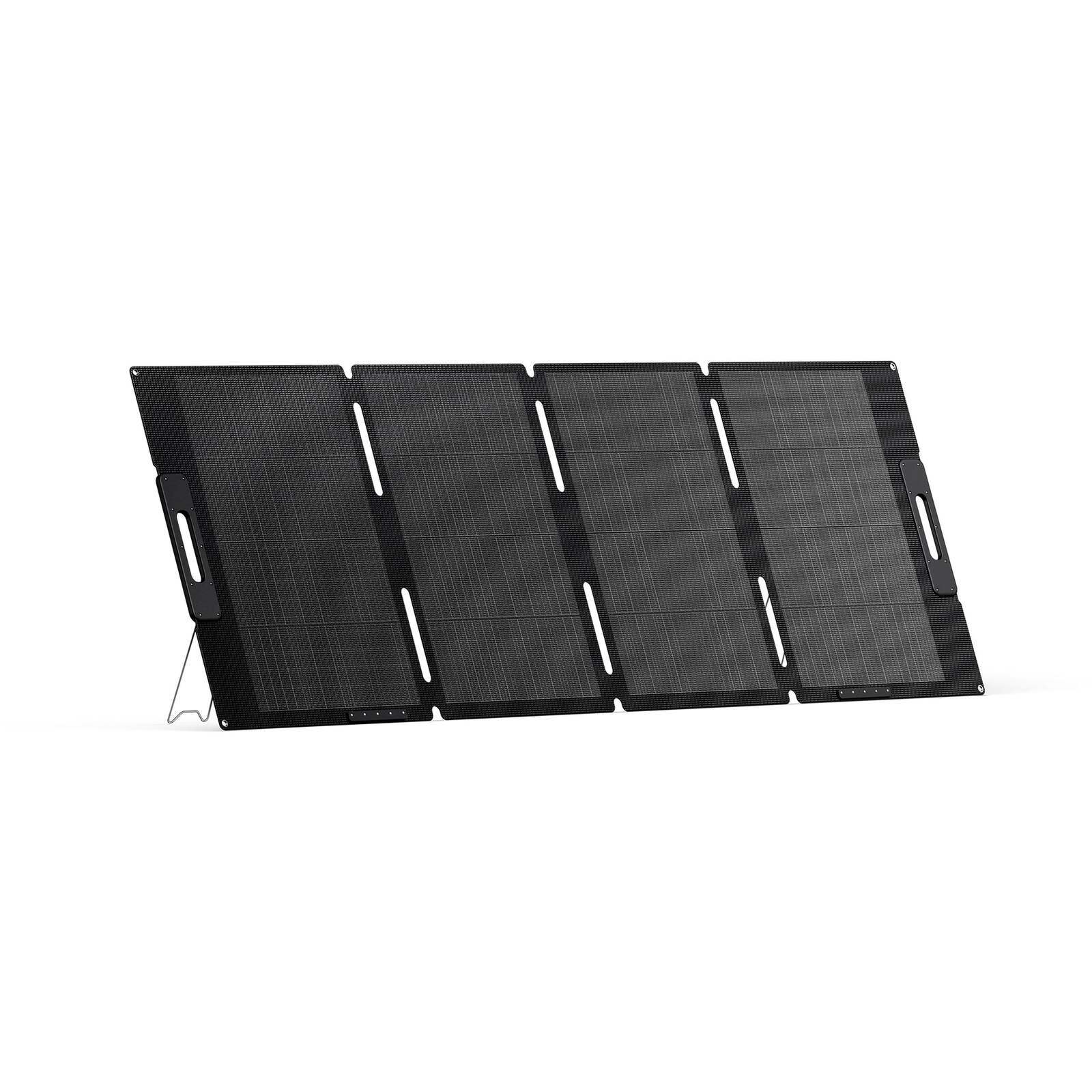

- Bluetti MP200 200W Monocrystalline Portable Solar Panel, P-MP200-EU-GY-BL-010

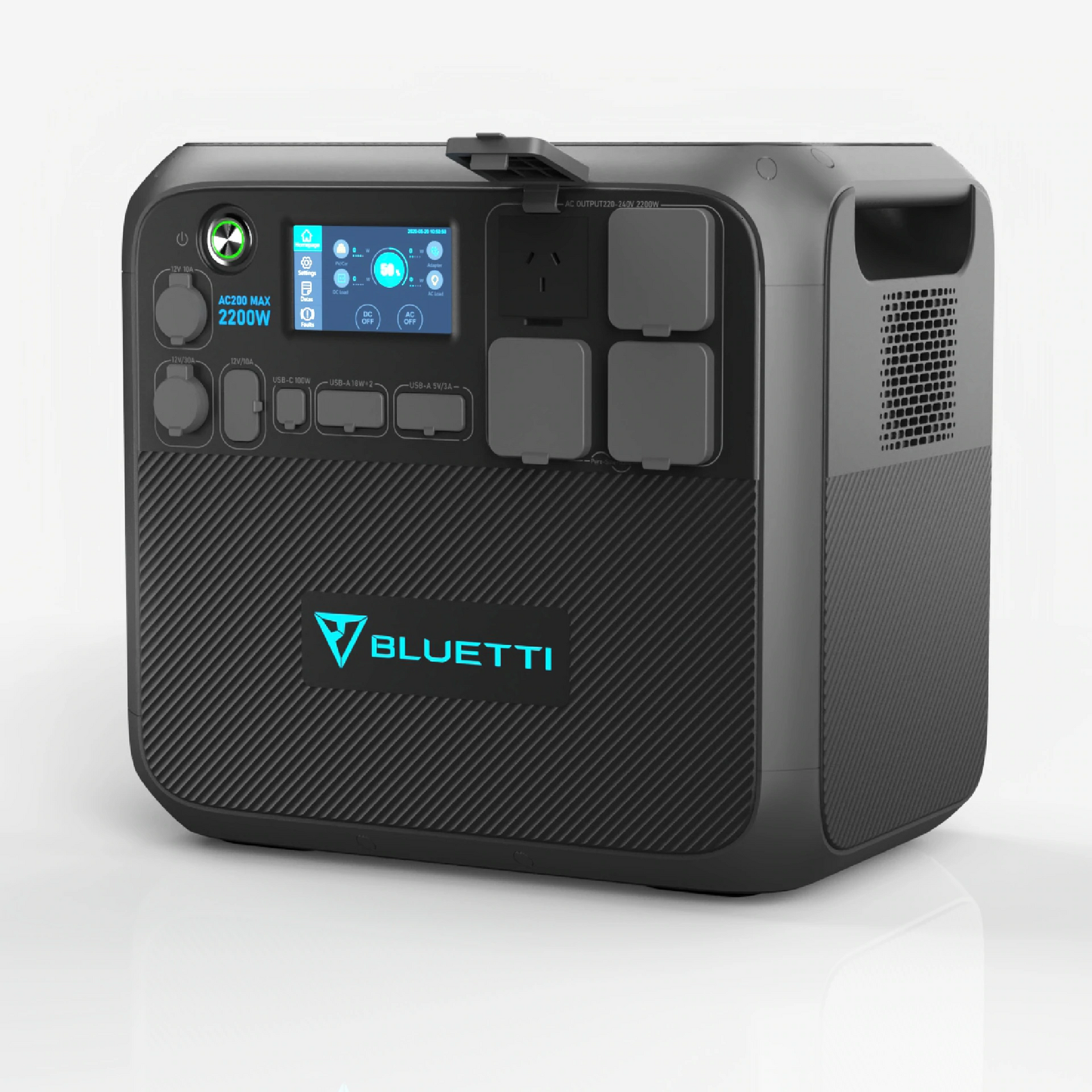

Bluetti AC200MAX Expandable Power Station 2048Wh
BLUETTI first expandable power station-AC200MAX with 2,048Wh LiFePO4 cells and 2,200W pure sine wave inverter. Your mobile power center at home or on the way.
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge).
- 2,048Wh Capacity.
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1300W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
Features:
- Capacity or Flexibility. We've got you covered! AC200MAX supports up to two B230(2,048Wh each) or B300 (3,072Wh each) battery modules for a staggering 8,192Wh! (B230 and B300 battery pack are sold separately)
- Charge the Way You Prefer. AC200MAX allows 900W solar and 400W adapter input to get a 1,300W total charging rate, charging up this power beast in less than two hours!
- Stay Connected in Real-time. With smart BLUETTI App, you can monitor, optimize your power consumption and update firmware over-the-air (OTA) from a distance.
- Incomparable Outlet Versatility. With AC200MAX’s 15 outlets, you get to run all your needs simultaneously without breaking a sweat.
- Never Run Out of Power. Suitable for various occasions
Specifications:
BATTERY INFO:
- Capacity: 2048Wh
- Amp hours (Ah) @ V: 40Ah @51.2V
- Cell Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Lifecycle: 3,500+ Cycles to 80% Original Capacity
- Shelf-life: Recharge to 80% Every 3-6 Months
- Management System: MPPT Controller, BMS, etc
OUTPUT:
- AC Output: 4 x 220V-240V,2200W In Total
- Inverter Type: Pure Sine Wave
- Surge Power: 4800W
- USB-C Port:
- 2 x 5V/3A USB-A
- 2 x 18W USB-A
- 12V DC Outlets:
- 1 x 12V/30A (RV Outlet)
- 1 x 12V/10A (Car Outlet)
- 2 x 12V/10A DC 5521 (5.5mm Outlet)
- *All Regulated.
- Wireless Charging Pad: 2 x 15W Max. (For Each)
INPUT:
- AC Adapter Input: 400W.
- Solar Input: 900W Max.OCV 10-145VDC, 15A
- Car Input: 12/24V from Cigarette Lighter Port
- Max Input: 1,300W, with AC+Solar Input
RECHARGE TIMES:
- AC Adapter (400W): ≈5.5~6 Hours
- Solar (900W): ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
- 12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours
- AC Adapter + Solar (1300W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
- Dual AC Adapters (800W): ≈3~3.5 Hours (Extra adapter is REQUIRED)
GENERAL:
- Scalability: Expandable w/ Up to 2 x B230 or 2 x B300
- Pass-through Charging: Yes
- Weight: 28.1kg
- Dimensions (LxWxD): 420 x 280 x 387mm
- Operating Usage Temperature: -4-104℉ (-20-40℃)
- Storage Temperature: 14-113℉ (-10-45℃)
- Certification: UL, CEC, DOE, FCC, CA Prop 65
- Warranty: 2 Years
Specifications
SKU AC200MAX-MP200
Brand Bluetti
Product Category Solar Bundles
Battery Voltage 12V
Watts (W) 200
Solar Panel Cell Type Monocrystalline
Solar Panel Type Solar Blanket
Dimensions (open) 2075 x 681 x 35mm (Solar Panel)
Dimensions (closed) 681 x 553 x 65mm(Solar Panel)
Dimensions (LxWxD) 420mm x 280mm x 387mm(Power Station)
Weight (kg) 8.7(Solar panel)
Amp Hours (Ah) @ V 40Ah @51.2V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can I add more than one expandable battery to the Bluetti AC200Max?
Yes, the Bluetti is expandable up to 6,144Wh with 2 x B230, or 8,192Wh with 2 x B300
-
Will this system work in my caravan?
It definitely could. The AC200Max has a generous 2048Wh capacity and a 2200w inverter, allowing you to run 240v home appliances up to 2200w and still have the ability to run 12v appliances. Otherwise you could utlise this system as a back up when required to charge your batteries.
-
How can I charge this system?
The AC200Max offers a few methods of charging. You can charge from AC, DC in the car and Solar.
