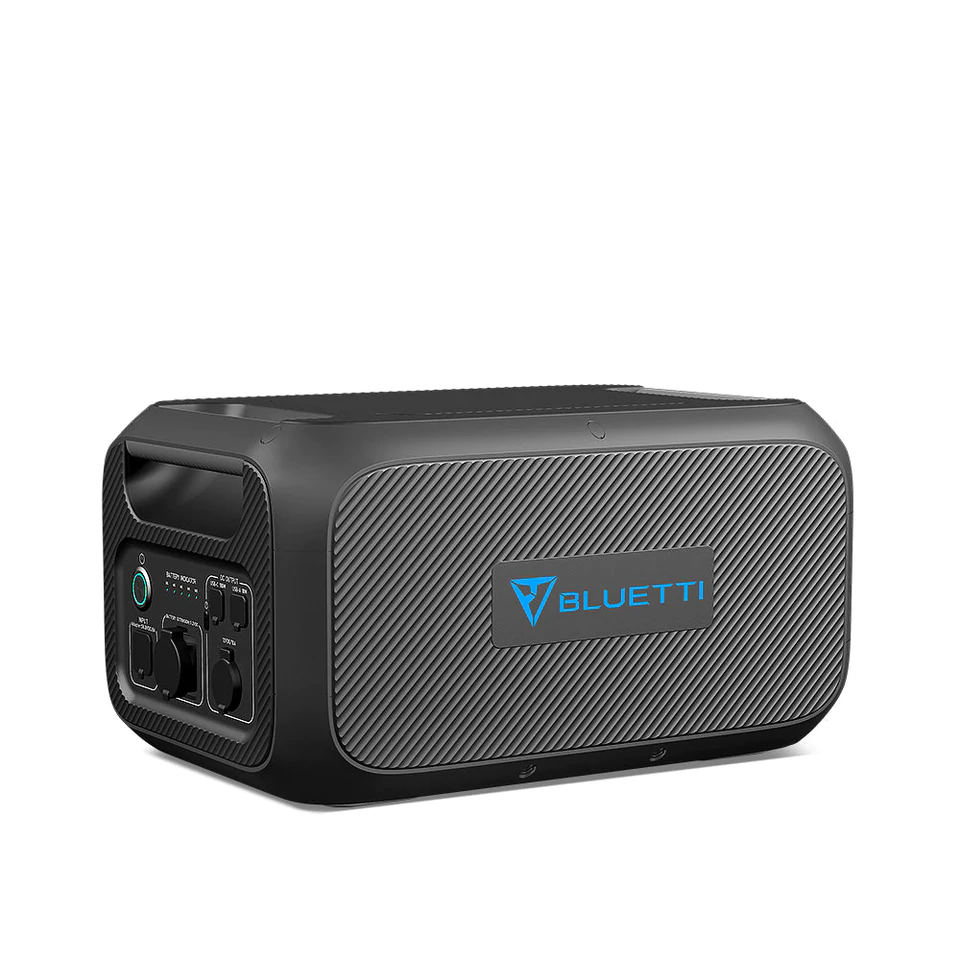

Bluetti B230 Expansion Battery 2048Wh
SKU: B230-GY-BL-00 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Bluetti B230 Expansion Battery 2048Wh
- B230 equipped with 2048Wh capacity.
- One 100W USB-C, a 12V/10A car output and a USB-A ports.
- Versatile power inputs allow you to recharge no matter where you are.
- Solar charging, car charging and lead-acid battery charging need to be realized through D050S
Features:
-
Never Run out of Power. BLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC, car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.
-
Versatile Power Source. The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.
-
Give Your Devices More Runtime. B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.
-
Home Backup and Trip Power Bank. The AC200MAX + B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.
-
Never Run Out of Power. Suitable for various occasions
Specifications
BATTERY INFO:
- Capacity: 2048Wh (51.2v,40Ah)
- Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
- Lifecycle: 3500+(to 80%); 6000+(to 50%)
- Shelf-Life: Charge Every 3-6 Months
PORTS:
- AC Input: 500W
- Solar Input: Max 10A(Via BLUETTI D050S)
- Car Input: 12/24V,8.2A(Via BLUETTI D050S)
- DC Output: 1*12V/10A Cigarette Lighter Port
- USB Output:
- 1*18W USB-A
- 1*100W USB-C
- Environmental Requirements:
- Storate Temperature: 20-40℃(-4-104℉)
- Charge Temperature: 0-40℃ (32-104℉)
- Discharge Temperature:-20-40℃(-4-104℉)
GENERAL:
- Weight: 21.8Kg
- Dimensions (LxWxD): 420mm x 280mm x 227.5mm
- Operating Usage Temperature: 0-40°C/32°F-104°F
- Certification: CEC, DOE, FCC, QC3.0, CA Prop 65
- Warranty: 2 Years
Specifications
SKU B230-GY-BL-00
Brand Bluetti
GTIN 6970991291005
Product Category Portable Power Stations
Battery Voltage 12V
Dimensions 420 x 280 x 227.5
Watt hours (Wh) 2048
Weight (kg) 21.8
Amp Hours (Ah) @ V 40Ah @50V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Which BLUETTI power stations can work with B230?
AC200MAX/AC200/AC200P/EB150/EB240/EP500Pro.
Aditional accessories are required for each power station.
AC200P: P090D to XT90 cable
EB150: P090D to DC7909 cable
EP500Pro: P090D to MC4 cable
-
How many B230 can I connect to AC200MAX?
Up to 2 B230 for 6,144Wh capacity.
-
Can I use BLUETTI B230 expansion battery alone?
Yes. It comes with a 100W USB-C, a USB-A, and a 12V car socket, providing power for phones, laptops, car refrigerators, etc.
-
Does B230 support App control?
Connect it to the AC200MAX, pair them with BLUETTI App, and you can control the system at any time from anywhere.
-
Can I use B230 alone as a UPS?
No
-
Can I use car cigaretter lighter or lead-acid battery to charge B230?
Yes, BLUETTI D050S DC Charging Enhancer* is required. * Sold separately
-
What are the charging methods for the BLUETTI B230?
B230 can be recharged by:
1) 500W AC adapter (Sold separately)
2) Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.
-
Can it charge and discharge at the same time?
Yes
-
Can I use or charge B230 in sub-zero temperatures?
Temperature ranges for B300 are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);
Storage: -20-40℃ (-4-104℉).
Technically, it can power electrical devices under such situations, but please avoid charging it.
-
How long can it run my device?
Running time = Battery capacity x DoD x η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency.
For B230, both DoD and η are 90%. If you run a 100W light bulb with it, the running time will be: 2,048Wh x 90% x 90% ÷ 100W ≈ 16.5hrs
Note: The above data is for reference ONLY.
-
Is B230 waterproof?
No. Also, please do NOT store it in a humid environment for a long time.
-
Is it possible to replace the built-in battery?
No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.
