Bluetti AC500 5000W Inverter Module Generator with B300S Expansion Battery 3072Wh
SKU: AC500-B300S Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Bluetti AC500 5000W Inverter Module Generator with B300S Expansion Battery 3072Wh
Included:
- Bluetti AC500 5000W Inverter Module Generator (B300S/B300 Required) - AC500-AU-BK-BL-00
- Bluetti B300S Expansion Battery 3072Wh (Only Works With AC500) - B300S-UN-GY-BL-00
Bluetti AC500 5000W Inverter Module Generator (B300S/B300 Required)
Features:
- Modular Solar Power System for All Needs. Compatible with B300S and B300 batteries for an expandable power system, AC500 will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.
- 5000W Pure Sine Wave Inverter. This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.
- Charge in Any Way You Like. No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2*B300S packs required). Get the system recharged before you pack up for the camping, and your power will be ready when you are.
- Power Option for Personalization. AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!
- Never Run Out of Power. AC500 powers your devices like a gas generator, but without any fuel costs, noise, and pollution, making it safe enough to use next to you whether you're at home, pitching a tent, or trying an RV road trip.
Specifications:
OUTPUT
- AC Outlets: 3 x 240V/10A Outlets | 2 x 240V/15A | 1 x 240V/32A (5,000W In Total)
- Inverter Type: Pure Sine Wave
- Surge Power: 10,000W
- USB Port: 2 x 5V/3A USB-A | 2 x 18W USB-A | 2 × USB-C 100W Max.
- DC Outlets: 1 x 12V/30A (RV Outlet) \ 1 x 24V/10A (Car Outlet) *All regulated.
- Wireless Charging Pad: 2 x 15W Max.
INPUT
- AC Input: 4,500W Max. (W/ 1*B300S) | 5,000W Max. (W/ 2 or more B300S)
- Solar Input: 3,000W Max. VOC 12-150VDC, 15A
- Car Input: 12/24V from Vehicle Cigarette Lighter Port
- Maximum Input: 6,000W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging
GENERAL
- 5,000W Rated Power (10,000W Surge)
- LiFePOâ‚„ Battery With 3,500+ Life Cycles to 80%
- 6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual charging)
- 16 Versatile Outlets for 99% Devices
- 24/7 UPS Home Backup.
- App Control: Yes, WiFi & Bluetooth Connection
- Scalability: Expandable with 6×B300S or 4×B300
- Simultaneous Charge & Discharge: Yes
- Weight: 30kg
- Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
- Operating Temperature: -4℉-104℉ (-20℃-40℃)
- Storage Temperature: -4℉-104℉ (-20℃-40℃)
- Certification: UL Standard, CEC, DOE, FCC, CA Prop 65
- Warranty: 4 Years
Included:
- AC500 Expandable Power Station
- 10A AC Charging Cable
- Solar Charging Cable (MC4 to Aviation Cable)
- Car Charging Cable (MC4 to Cigarette Lighter)
- User Manual
- Certificate Card

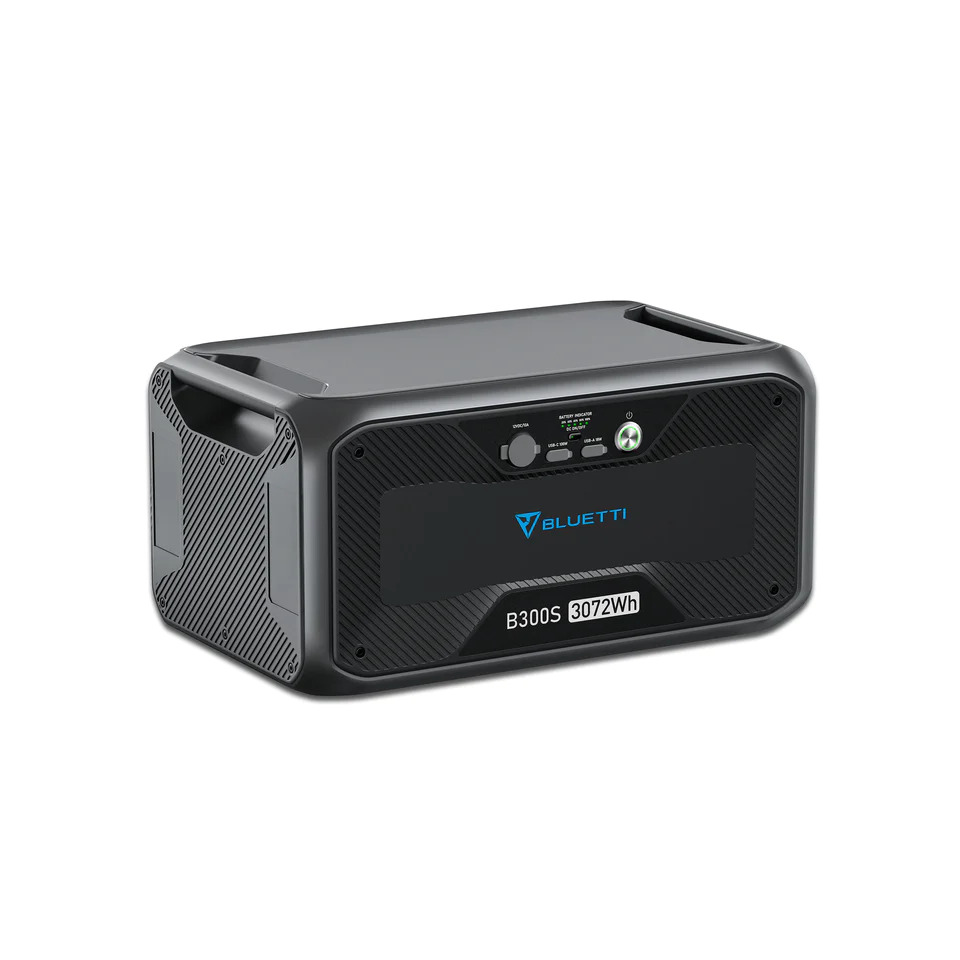

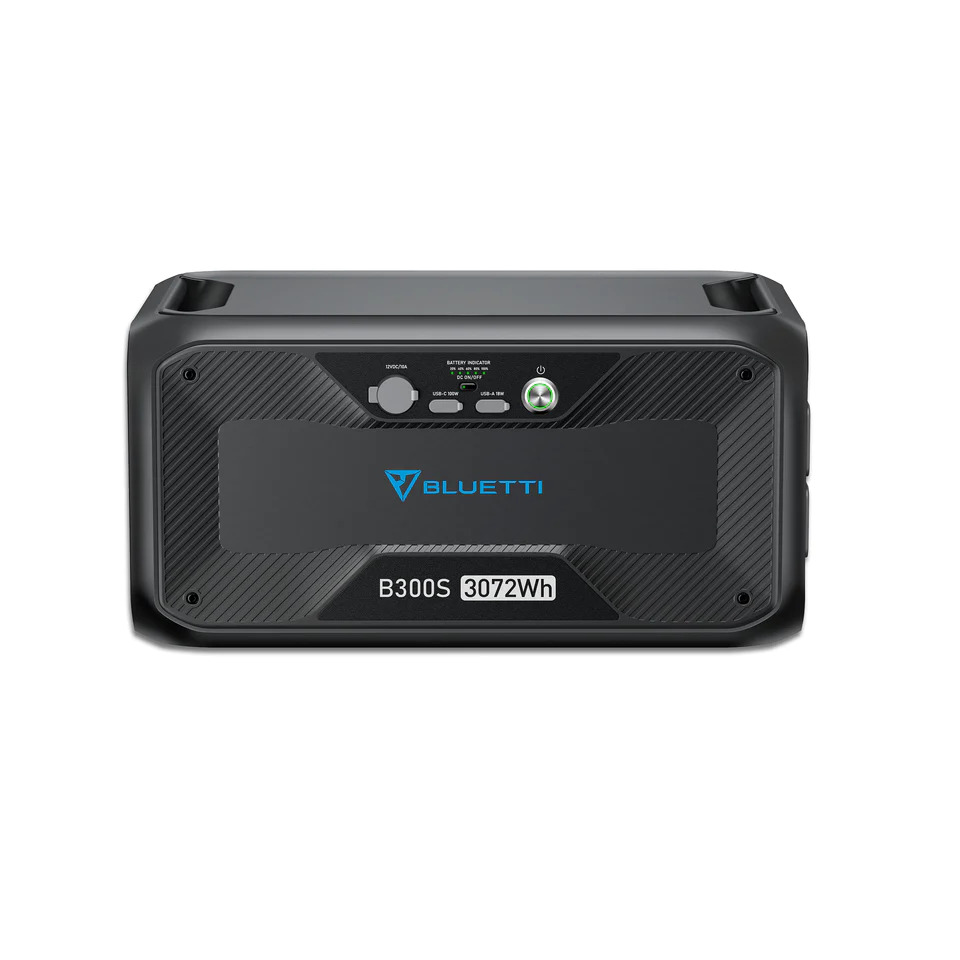

Bluetti B300S Expansion Battery 3072Wh (Only Works With AC500)
Features:
- Flexible Recharging. BLUETTI B300S takes up to 500W AC, solar, or car charging. Combine AC with solar or car input, you can top up B300S in less than 3.5-4 hours with a maximum of 1,000W* input rate. *The D050S DC charging enhancer is required.
- Versatile Power Source. You can power your smartphones, laptops, fans, lights, refrigerators and more with specific outputs-100W USB-C, 12V/10A cigarette lighter, and 18W USB-A.
- Responsive Even in Chilly Winter. Waking up electronics on a freezing day may be time-consuming. But with the Self-heating Function, B300S will automatically heat up to work actively and smoothly as usual.
- Expandable Battery Pack. As the companion battery pack to AC500, B300S has a capacity of 3,072Wh and lasts for 3,500+ cycles to 80% of its original capacity. Hook up 6*B300S with AC500, you'll get a powerhouse with 18,432Wh, enough to get you through a severe power outage.
- Never Run Out of Power. Suitable for various occasions.
Specifications:
BATTERY INFO
- Capacity: 3,072Wh (51.2V, 60Ah)
- Cell Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Life Cycles: 3,500+ Cycles to 80% Original Capacity
- Shelf-life: Recharge to 80% Every 3-6 Months
- Management System: MPPT Charge Controller, BMS, etc.
OUTPUT
- USB-C Port: 1 x 100W Max.
- USB-A Port: 1 x 18W
- DC Outlets: 1 x 12V/10A (Car Outlet) *All regulated.
INPUT
- AC Input: 500W Max.
- Solar Input: 500W Max. VOC 12-60VDC, 10A
- Car Input: 12/24V from Cigarette Lighter Port
- Maximum Input: 1,000W (AC + Solar), with D050S DC Charging Enhancer
GENERAL
- 3,072Wh LiFePO4 battery for over 3,500 life cycles to 80%.
- Standalone power station with 100W USB-C, 12V/10A car port and USB-A port.
- Flexible charging via AC, solar and car power sources.
- Responsive even in freezing days with Self-heating Function.
- Compatible with AC500 for a maximum of 18,432Wh capacity.
- Simultaneous Charge & Discharge: Yes
- Weight: 83.3lbs (38kg)
- Dimensions (LxWxD): 20.5 x 12.5 x 10.5in (52 x 32 x 26.6cm)
- Operating Temperature: -4℉-104℉ (-20℃-40℃)
- Storage Temperature: -4℉-104℉ (-20℃-40℃)
- Certification: UL Standard, CEC, DOE, FCC, CA Prop 65
- Warranty: 4 Years
Included:
- B300S Expansion Battery
- Battery Extension Cable (P150D)
- Solar Charging Cable (MC4 to Aviation Cable)
- Warranty Card
- User Manual
- Certificate Card
Specifications
SKU AC500-B300S
Brand Bluetti
Product Category Portable Power Stations
Dimensions 520 x 325 x 358mm
Watt hours (Wh) 5000
Weight (kg) 30
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
How fast can I charge the AC500 with a standard AC charging cable?
With this cable, you can charge the AC500 at a maximum input of 2400W.
-
How can I get a 5000W AC input for the AC500?
Connect 2 or more B300S units to the AC500, integrate them to the main panel of your home and you're ready to charge the AC500 at the maximum 5000W AC input. Note: The maximum AC input of AC500+B300S is 4500W.
-
How much power can I draw from the 32A AC outlet?
5000W Max. This outlet is for power-hungry appliances that require higher currents. Note: A M28 Bayonet 3-Pin Male Connector is required. Learn more. The CEE 32A outlet delivers a maximum current of 32A.
-
What is the output power of AC500?
4,500W Max. with 1*B300S
5,000W Max. with 2*B300S or more
3,000W Max. with 1*B300
5,000W Max. with 2*B300 or more.
-
How many B300 packs can be connected to AC500？
4
-
Can I use AC500 alone?
No, it's 100% modular and needs to team with B300S/B300 to get its job done.
-
What is the max charging power of AC500?
3,000W Max. with 1*B300.
5,000W Max. with 2*B300 or more.
4,500W Max. with 1*B300S (Solar + AC).
8,000W Max. with 2*B300S or more (Solar + AC).
-
Can I use other brands' batteries?
No, AC500 is compatible with B300S or B300 ONLY.
-
What is the power consumption of AC500 when it's off/on?
1. 11W when AC500 is on, AC and DC are off;
2. 30W when AC and DC are on.
-
Do I need an extra cable to connect B300 and AC500?
Yes, P150D to P090D is required, you may order it separately in BLUETTI Store
-
What is the difference between B300S and B300?
1) Current capacity: 130A for B300S while 75A for B300.
2) ONLY B300S features the automatic heating function.
3) Solar input: 500W for B300S while 200W for B300.
-
How does the heating function work?
When the temperature is below 0℃, the battery will be automatically heated once AC or PV charging is activated (input power＞400W).
-
How to connect AC500 to the main panel?
Low Voltage Area: Match the transfer switch and smart home panel to the main panel.
High Voltage Area: Match the transfer switch to the main panel.
-
What is the switching time of the UPS?
20ms.
-
Can I use third party solar panels to charge AC500?
Yes, the solar panels must meet the following conditions:
1) Total voltage: 12 - 150V
2) Total power: 3000W max.
3) With MC4 connectors.
-
Can I use rooftop solar panel to charge AC500?
Yes, but please note that your solar roof must meet:
1. No micro-inverter
2. Open circuit voltage: 12-150V
3. With MC4 connectors
Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage to achieve solar charging.* D300S Sold separately.
-
Does AC500 support charging and discharging at the same time?
Yes.
-
How long will AC500 run my device?
Running time = battery capacity x DoD x η ÷ device rated power
DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η are 90%.
If you run a 1,000W microwave oven with a AC500 + B300S combo, the running time will be 3,072Wh x 90% x 90% ÷ 1,000W ≈ 2.5 hours
Note:
1) This formula doesn't apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.
-
Is AC500 waterproof?
No, please keep it in a dry place.
-
Can I use the fusion box in high voltage areas?
No
-
How many B300S packs can be connected to AC500？
6
-
Can B300S and B300 be mixed?
Yes. 4 packs in total.
