BMPRO Management Bundle Compatible running up to 3000W Inverter

Description

BMPRO Management Bundle Compatible running up to 3000W Inverter



Pack Includes:

• BMPRO BatteryPlus35-II-HA 35A High Amp Battery Management System, BMPBP35IIGAUHA
• BMPRO RV View 2 Battery Monitor with OdysseyLink103, BMPRVVIEW2OD

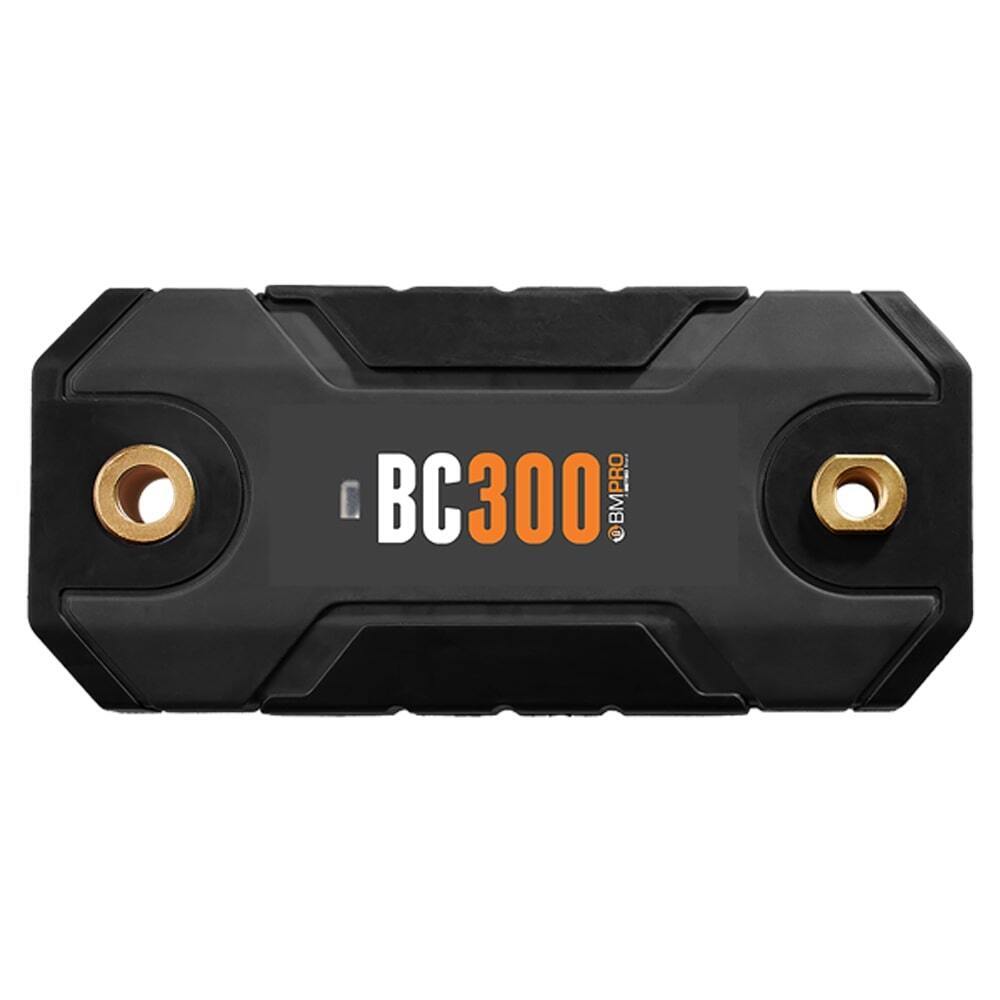

• BMPRO BC300 External Shunt and CommLink, BMPBC300+COMM
• BMPRO MiniBoostPro 12V 30A DC-DC Battery Charger with Solar Input, BMPMB1230



BMPRO BatteryPlus35-II-HA 35A High Amp Battery Management System

BatteryPlus35-II-HA is a complete high amp battery management system designed to support transition of caravans to lithium batteries. This all in one power solution combines a 35A power supply for 12V loads, 30A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features.

Connect the unit via CAN bus to the Trek battery monitor or to Odyssey touch screen via the OdysseyLink to monitor the status of your battery and to control your caravan features and functions or use it to connect to the BC300 to monitor high currents via CommLink.

BatteryPlus35-II-HA is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power – great for powered sites.

The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.

Use it to connect, for example:

• Proactive Electronic Stability Control SwayControl
• Emergency Trailer Break-Away Safety System TrailSafe
• Heaters
• Stereo memory

Designed and manufactured in Australia, the slim and sturdy BatteryPlus35-II-HA is fully equipped to charge the current generation of deep cycle batteries. Connect solar panels to the battery management system and power your adventures with renewable energy. Swap your caravan battery to the LiFePO4 deep cycle and harness the benefits of lithium. This high amp battery management system is specially designed to ensure the best performance and longevity of lithium batteries.



Features:

• Total output current 35A
• 30A multistage battery charger
• Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
• Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
• Electronic resettable fuses
• CAN bus connection for BMPRO accessories
• In-built battery management system
• Solar and Aux Blending
• Auxiliary DC input
• Load current limit
• Low voltage disconnect
• Compatible with lead acid and lithium (LiFePO4) deep cycle batteries



Specifications:

• Input Voltage Range 110-240V AC ± 10%, 50-60Hz
• Output Current 35A (Load + Batter y Current)
• Factory Set Voltage 13.65V (Float Voltage)
• Output Ripple Voltage <150mV
• Battery Current Limit max. 30A
• Low Voltage Disconnect (Lead Acid) 10.5V ± 0.2V
• Battery Connect after LVD (Lead Acid) 12.8V ± 0.2V
• Low Voltage Disconnect (LiFePO4) 12.0V ± 0.2V
• Battery Connect after LVD (LiFePO4) 13.8V ± 0.2V
• Battery Drain <15mA (when in Storage Mode)
• AC/DC Efficiency >83%
• Cooling Fan Thermally Controlled
• Solar Output Current 30A (nominal)
• Solar Start Voltage 17.5V
• Solar Input Voltage (after start-up) 15-25V
• Ambient Temperature 0-50 °C
• Communication Communication bus available
• Weight 2kg



BMPRO MiniBoostPro 30A 12V DC to DC Battery Charger with Solar Input

BMPRO’s MiniBoostPRO is a compact DC-DC charger with solar input, specially designed for the RV market. The MiniBoostPRO offers effective charging of your caravan, 4WD or camper trailer’s house battery from the towing vehicle’s electrical system. Blending both solar and auxiliary inputs, the MiniBoostPRO provides a combined charging current of up to a maximum of 30A, with a preference to solar. It features proprietary technology designed to charge from modern car alternators.



MONITOR YOUR RV BATTERY WITH A WALL MOUNTED 12V BATTERY MONITOR

The RVView2 is a wall-mounted battery monitor designed specifically to operate with BMPRO’s BatteryPlus35. The RVView2 connects to the BatteryPlus35 via the data cable. The monitor gives you vital up-to-the-minute data about your caravan’s current status using a clear back-lit display. The display shows volts and amps, battery charge and discharge status, as well as the source input for the vehicle’s 12V system.

Input Amps shows the total current going through the BatteryPlus35, while Output Amps shows the current provided to appliances. Input source indicator displays mains, solar, auxiliary, or two simultaneously present power sources, if available.

System voltage displays the voltage across the battery terminals, while the battery symbol indicates whether the battery is charging, discharging, fully loaded or not fully loaded. As a power saving feature, the display will turn off automatically 30 sec after its activation.

In addition to battery monitoring, the RVView2 enables monitoring of water levels of up to four water tanks from a sleek, wall mounted display.

The RVView2 can be connected to the OdysseyLink103 to become a part of the Odyssey system. OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.

RVView2 is designed and manufactured in Australia.

Features:

• Monitor:
  • battery voltage and charge status,
  • battery charging & discharging currents,
  • Auxiliary and solar charging currents,
  • Level indication of up to 4 water tanks
  • Battery on/off status
• Separate water tank screen
• Function to disconnect the battery from the load
• Includes OdysseyLink103 to enable SmartConnect and free Odyssey app

Specifications:

• Input Voltage: 6V-16V
• Monitored Battery Capacity: 50Ah to 600Ah
• Water Tank Monitoring: Dipper or Tank Bungs
• Visual Warning: BatteryPlus35 short-circuit
• Battery Drain: < 22mA
• Ambient Temperature: 0°C – 50°C
• Size: 140W x 80H x 15D



The table below illustrates the compatibility of the different BMPRO products and if any prerequisites apply to a combination
