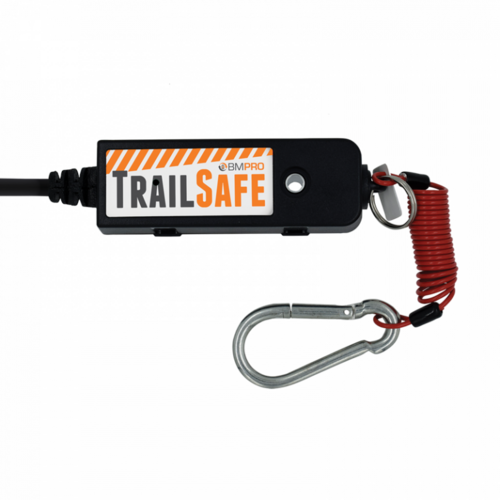

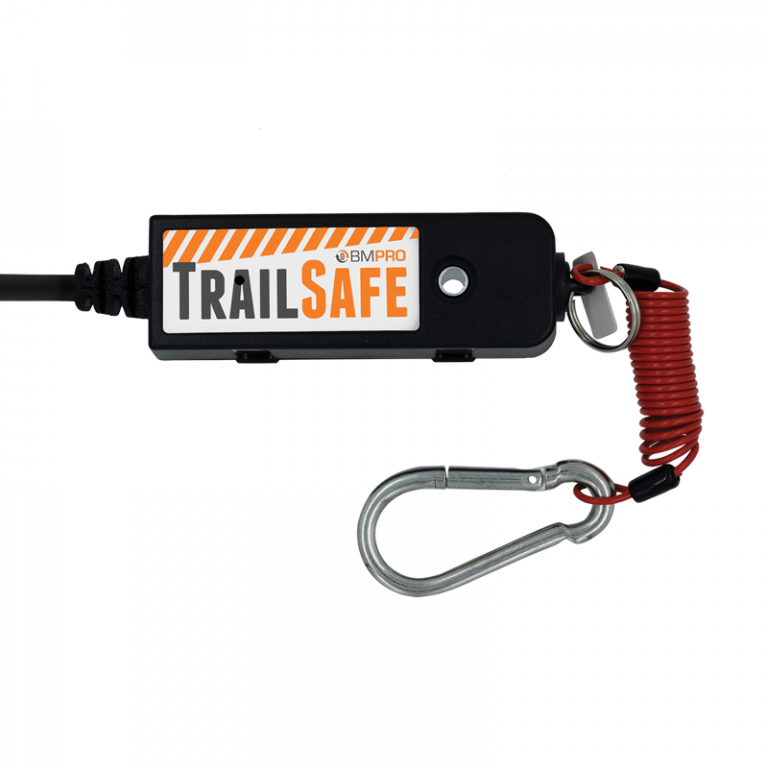

BMPRO TrailSafe Emergency Trailer Break-Away Safety System

Description

BMPRO TrailSafe Emergency Trailer Break-Away Safety System

TOW A TRAILER SAFELY AND LEGALLY
Australian Design Rule mandates that all trailers having a gross trailer mass  over 2,000 kg should utilise a break-away safety system on all wheels. Emergency braking system must also be capable of automatically activating should the trailer become detached from the tow vehicle. In such a situation the brakes must remain active for a minimum of 15 minutes. TrailSafe is a highly effective break-away safety system designed to activate the electric brakes of a trailer or a caravan in the event of a disconnection from the towing vehicle. TrailSafe takes convenience a step further by utilising the trailer’s house battery to power the brakes in a break-away situation. This means there is no need to maintain a second battery in your trailer throughout the year. TrailSafe also provides an indication of the charge status of the house battery. It also checks the condition of the pull pin and effective activation of the brakes. This is transmitted through a wire to a remote monitor, as well as by Bluetooth wireless to the optional TrailCheck. If the towing vehicle becomes separated from the trailer, mechanical pull pin is removed from TrailSafe, thus detecting disconnection. Upon disconnection, the brakes and brake lights are activated as long as charge remains in the trailer battery or until the pin is replaced.

Features:

• Bluetooth and wired connectivity options for in vehicle monitors
• Intelligent time-out to protect brakes
• Works off house battery – no additional battery required!
• LED status indicators for full-system safety check at trailer tongue
• Meets Australian regulations for break away systems on trailers over 2000kgs.
• Tests pull pin functionality as well as battery health
• Drives brake lights as well as electric brakes in the event of a break away

Specifications:

• System Voltage: 12V
• Compatible: all types of lead acid batteries with capacity greater than 50Ah; LiFePO4 batteries with capacity of 100Ah or greater
• Temperature:  -20°C to 60°C
• IP Rating: IP67
• Pull Pin Integrity – checks system wiring providing fault indication LED
• LED function: with pin removed or brakes applied:
  • GREEN when battery is good
  • ORANGE when battery condition should be checked
