Bushman DC190L-X 12/24V Black Matte Upright Fridge/Freezer 190L
SKU: DC190L-X Learn More»
Currently FREE with the Bushman DC190L-X 12/24V Black Matte Upright Fridge/Freezer 190L is:
Description

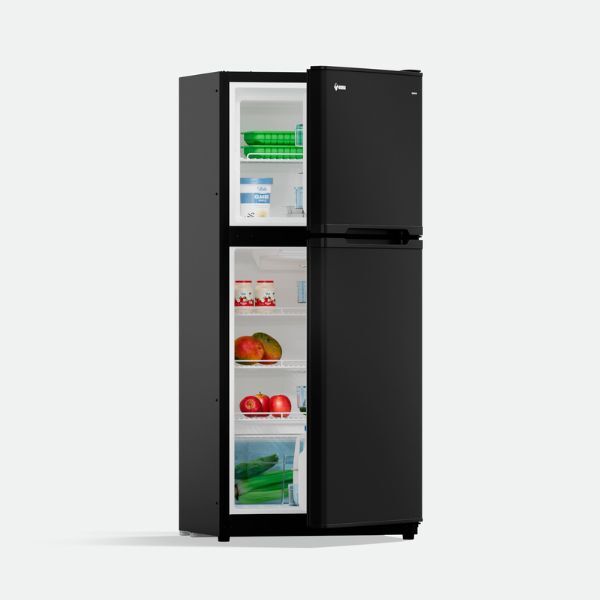

Bushman DC190L-X 12V/24V Caravan Fridge
The Bushman DC190 is a large upright fridge/freezer combo designed for Australia wide adventures in that it can handle the heat, while keeping your food and beverages cool without compromising on efficiency. Designed specifically for mobile use such as caravans, motorhomes, boats and RV's, the DC190 is also great for those who want to live off-grid using 12V/24V power. The DC190 by Bushman is visually pleasing with a beautiful matt black finish. Unlike other brands of upright fridges, you can use the DC190 free-standing or you can install it into a suitable cavity. Maintain functionality with the DC190L-X thanks to its wide door storage in order to store large bottles. The shelves are adjustable and are made of safety glass, so you can maintain the look and feel of a domestic fridge, as well as the ease of use when it comes time to clean up any spills.
This latest version of the Bushman DC190L includes updates to the cooling system, door latch and door profile. This means ultra low power consumption (2Ah per hour in normal conditions, 3Ah per hour in extreme heat) and ability to work in 43ËšC.
Currently this model comes with a Free Mounting Kit which gives a flush finish to the fridge once installed.
Features
- 12V / 24V DC Operation
- Large 45L Freezer
- Interior Light
- Adjustable safety glass shelving
- Large Door Storage
- Reversible Doors
- Tropical 'T' Rating
- Door Latch
- Full steel fridge cabinet
- Built in vertical fan assists airflow
- Includes mounting kit
- Extra thick insulation
- Use as free standing or fit in cavity
- Powder coated finish
- Battery Protection
Specifications
- Compressor: BD50 Nidec Danfoss

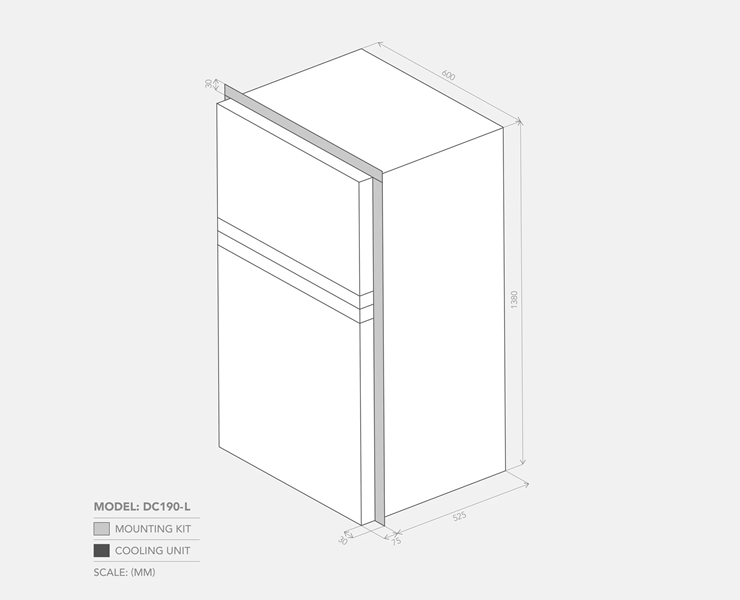

- Dimensions: 600mm (W) x 600mm (D) x 1380mm (H)
- Cut-out Dimensions: 605mm (W) x 575mm (D) x 1385mm (H) (allows 50mm gap at rear)
- Average power usage: 2.0 Ah / 24hr @ 25º ambient / 4º fridge
- Max amp draw: 4.5 amps on 12V system
- Max input voltage: 12V=17V max / 24V= 31.5V max
- Battery Protection Cut in: 22.7V
- Battery Proetction Cutout: 21.3V
- Weight: 50kg
- Colour: Black
- Rating: 'T'
- Warranty: 5 Years
User Tips
- This fridge is designed to run from a 12V DC power source such as your Caravan/Camping battery bank. Running the fridge from a 12V power source will help with the longevity and performance of this fridge. Bushman recommends that when 240V power is available, use a smart battery charger to charge your battery bank and keep your fridge running direct from the batteries. You can see a suitable range of AC to DC smart battery chargers HERE if needed.
- A small number of customers may want to use this fridge in an 'offgrid living' setup and run the fridge from 240V AC power all of the time - in which case you will need a Power Adaptor to convert AC Power to DC in order to run the fridge. You can see this optional Bushman Adaptor HERE.
Specifications
SKU DC190L-X
Brand Bushman
GTIN 797776962556
Product Category Upright RV Compressor Fridges
Fridge Voltage 12 / 24 V
Total Capacity (L) 190
Fridge Width (mm) 600
Fridge Height (mm) 1380
Fridge Depth (mm) 600
Weight (kg) 50
Cut Out Required 605 x 1385 x 575 mm (W x H x D) - allows 50mm gap at rear
Freezer Volume (L) 45
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What do I need to think about in regards of the ventilation with my Bushman compressor fridge?
As any compressor fridge, it is important to ensure that you have enough ventilation when you install your Bushman fridge.
Any of the Bushman Compressor fridges requires two vents at the rear of the fridge cavity to the outside, or to the general area where the fridge is located. It is important to place the vents at the bottom and top of the fridge cavity and ensure there is a free cross section. This cross section requires a minimum cm2 which differs depending on the size of the fridge � to ensure the correct required centimeters for your fridge models, please see the Installation Manual under the Description tab.
The cross section ensure that the fridges get enough ventilation of natural thermal air. Bushman recommends having a bigger cross section as that is required, the more ventilation the better!
-
Is a 240v adaptor necessary with this fridge?
This fridge is designed to run from a 12V DC power source such as your Caravan/Camping battery bank. Running the fridge from a 12V power source will help with the longevity and performance of this fridge.
Bushman recommends that when 240V power is available, use a smart battery charger to charge your battery bank and keep your fridge running direct from the batteries. You can see a suitable range of AC to DC smart battery chargers HERE if needed.
A small number of customers may want to use this fridge in an 'off grid living' setup and run the fridge from 240V AC power all the time - in which case you will need a Power Adaptor to convert AC Power to DC in order to run the fridge. You can see this optional Bushman Adaptor HERE.
-
What do I need to know about installing my 12v compressor fridge in my van?
Installation instructions will come with your 12V Compressor Fridge. The installation/manual document will also cover:
- Recommended ventilation
- Side and rear gap sizes for installing in your RV cavity
- Mounting
- Wiring
Depending on the model, there will also be information regarding; maintenance, cleaning, defrosting, energy saving tips, reversible doors, inserting new door panels and troubleshooting.
-
Does the fridge auto select between 12v/24v?
Hi - Yes it does!
-
Are these manufactured in Australia?
No, Bushman is an Australian company, however their products are not manufactured here.
Reviews
Bushman’s 190Ltr fridge freezer
By: Kevin Horsley on20 August 2023
I purchased the Bushman’s 190 Ltr fridge to go in my camper van conversion. In my opinion Bushman’s are the best on the market, this is the second one I’ve purchased. The size of the fridge is great and the consumption is average of 2 amps per hour. The purchase and delivery was very good if I could give a 11 out of 10 I would. Thank you
Keeping everything COLD
By: Graham Rowe on6 August 2023
Great fridge, I never thought a 12volt fridge could be that good.
Bushmans 190lt fridge
By: Valerie sager on25 May 2023
Fitted in the van great luv the size would recommend it to anyone
Bushman DC190L-X12/24v Black Matte upright fridge/
By: Gordon on3 March 2023
I spent a long time looking for a fridge/freezer that would fit into the opening left by the 3 way fridge. The fridge fit perfectly without making alterations to the cabinetry. We already have a Bushman portable fridge/freezer, so I knew the Bushman would be a good reliable fridge for the motor home.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
