Bushman 12V 30 Litre Drawer Fridge / Freezer
SKU: DF30-HD Learn More»
Description
Bushman 12V 30 Litre Drawer Fridge / Freezer
The perfect 12V drawer freezer for a 4WD canopy, 4X4 drawer system, or as a dedicated drinks fridge. Bushman is proud to be Australia's first and only company to utilise the unique Secop Danfoss Heavy Duty Series 12V compressor, and to offer Australia's first and only 7-Year 12V compressor warranty.
Designed to operate 365 days a year on Australia's harsh corrugated roads, the Bushman DF30-HD drawer fridge is the most robust and capable 12V fridge freezer Bushman has ever built.
What makes the Bushman DF30-HD drawer fridge freezer unique?
Powerful Cooling
- -18˚C deep freezing in up to 45˚C
- +4˚C refrigeration in up to 50˚C

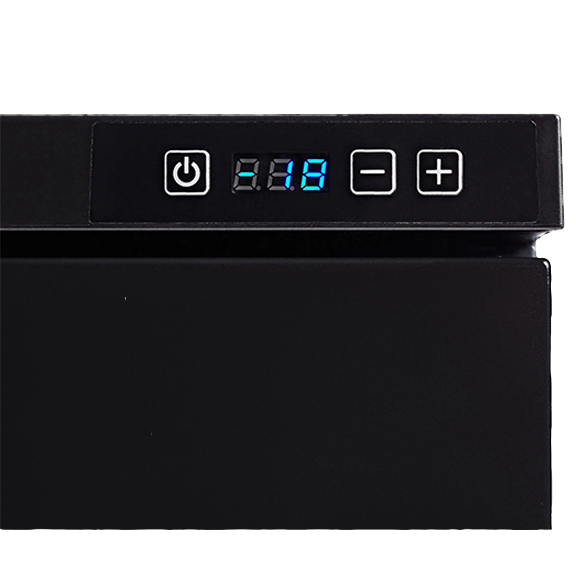

- Digital thermostat control
Bushman Quality
- Australia’s first and only 7 Year Compressor warranty on a 12V fridge
- Australia’s first and only Genuine Secop® Danfoss HD Series compressor
- Twin 120mm crossflow heat extraction fans
- Insulation up to 3 inches thick
- Full stainless steel hardware, drawer runners and steel slam latch
Efficient Power Use
- Avg 0.5Ah per hour (4˚C in 25˚C ambient)
- Avg 1.4Ah per hour (4˚C in 45˚C ambient)
- Avg 1.5Ah per hour (-18˚C in 25˚C ambient)
- Avg 3.8Ah per hour (-18˚C in 45˚C ambient)
Specifications
SKU DF30-HD
Brand Bushman
Product Category Drawer Fridges
Fridge Voltage 12 V
Total Capacity (L) 30
Fridge Width (mm) 440
Fridge Height (mm) 310
Fridge Depth (mm) 840
Temperature Range -18˚C to +6ºC
Max Current 7.5A
Weight (kg) 24
Refrigerant Type R134a
Cut Out Required 880mm, to provide a 40mm gap at the rear
Climate class (EN62552) T
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
How do I mount my Bushman DF30-HD fridge?
There are many different ways you can mount your Bushman DF30-HD drawer fridge, this includes: using the supplied L brackets, using the internal mounting sleeves or mounting with the provided m5 nut inserts on each side.
-
Can the Bushman DF30-HD fridge freezer be fitted flush?
Yes, you can fit the Bushman DF30-HD drawer fridge freezer flush to your cabinetwork.
-
Can I stand 375ml cans upright in the Bushman DF30-HD drawer fridge freezer?
Yes, 28 x 375ml cans fit perfectly upright in the Bushman DF30-HD drawer fridge freezer.
-
What are the dimensions of the internal tub in the Bushman DF30-HD drawer fridge freezer?
The internal tub of the Bushman DF30-HD drawer fridge freezer is L490mm x W300mm x H170mm.
-
What is the total internal tub volume of the Bushman DF30-HD?
The internal tub volume of the Bushman DF30-HD is 25 litres.
-
What size battery do I need for the Bushman DF30-HD drawer fridge freezer?
We recommend a 120Ah deep cycle (AGM) or 80Ah lithium battery when using the Bushman DF30-HD as a fridge. When you are using the Bushman DF30-HD as a freezer, we recommend a 300Ah deep cycle (AGM) or 240Ah lithium battery This will run the Bushman DF30-HD for approximately three days and nights in 30˚C ambient.
-
How many watts of solar do I need for the Bushman DF30-HD?
To run the Bushman DF30-HD as a fridge, you will need approximately 200W of solar paired with a 120Ah AGM or 80Ah lithium battery. To run the Bushman DF30-HD as a deep freezer, you will need approximately 500W of solar paired with a 300Ah AGM or 240Ah lithium battery.
-
What colour is the Bushman DF30-HD available in?
The Bushman DF30-HD is only available in matte black.
-
Can I run the Bushman DF30-HD from 240V power?
Yes, you could operate the Bushman DF30-HD on 240V power by using a 240V to 12V transformer, however, most of our customers choose to run their fridge from their battery bank all the time. When they have access to 240V power they plug in their smart battery charger to maintain their battery bank.
-
Can I use the Bushman DF30-HD drawer fridge freezer just as a fridge?
Yes, you can use the Bushman DF30-HD drawer fridge freezer just as a fridge by setting the thermostat to 4˚C.
-
Can I use the Bushman DF30-HD drawer fridge freezer as a deep freezer?
Yes, you can use the Bushman DF30-HD drawer fridge freezer as a proper deep freezer by setting the thermostat to -18˚C.
-
How long is the warranty on the Bushman DF30-HD drawer fridge freezer?
The Bushman DF30-HD drawer fridge freezer comes with a 7 year compressor warranty and 5 year fridge warranty.
