Bushranger Night Hawk VLI Series Wiring System

Description

Bushranger Night Hawk VLI Series Wiring System

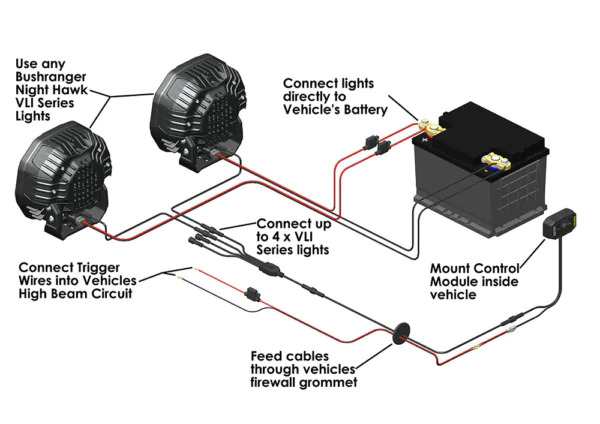

The Bushranger Night Hawk VLI Series Wiring System has been pushed to the edge by developing the first dedicated auxiliary light wiring system; incorporating relay free switching and brightness control functionality. What does this mean? Simpler wiring, easier installation, more user control and greater reliability over the traditional plug and play wiring loom. The commonly used automotive 12V relay is removed entirely and replaced with modern transistor switching, which is built into the light and the control module. Each light is powered directly from the battery, rather than through a relay, meaning there are no power restrictions for the wiring system, which is a common limitation with traditional relay-based wiring looms. Up to 4 x Bushranger Night Hawk VLI Series LED lights can be controlled by 1 wiring system and any combination of models/sizes can be used.

Product Features

• Modern electronically switched wiring system offers a simpler, more reliable and smarter alternative to regular relay-based wiring harnesses.
• ‘Plug & Play’ modular design provides versatility to suit any vehicle and reduces installation time compared to traditional wiring harness installs.
• Works with all Bushranger Night Hawk VLI Series Lights with no limitation on the power rating of each light.
• The wiring system, as supplied, controls up to 2 x lights. Capacity to control up to 4 x VLI Series lights simultaneously with the use of additional control leads (sold separately).
• PWM brightness control offers 7 x brightness settings at the turn of a dial.
• Soft Start Programming reduces eye fatigue by ramping up the brightness within the first second of operation.
• Automatic Polarity Detection simplifies connection into the high beam circuit and works on positive and negatively switched vehicles.
• Plug & Play headlight adaptors, fuse taps and additional control leads are available separately.

Specifications:

• Voltage Range: 10-30V

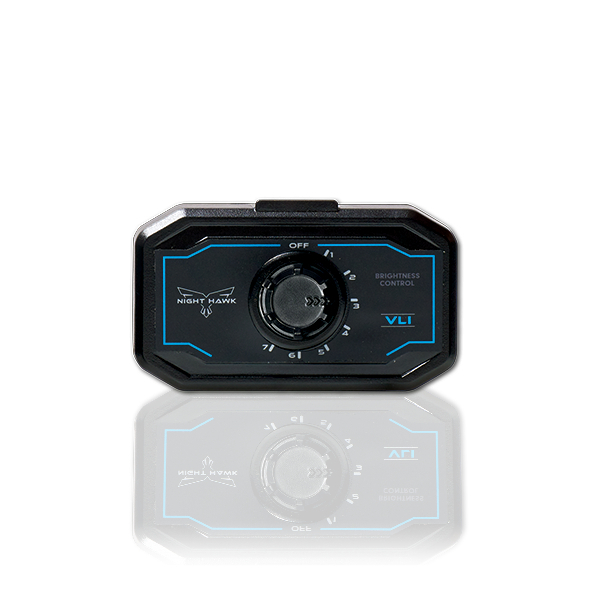

• DC Controller: Single rotary control dial & mounting cradle
• Light Intensity Control: 8 x brightness settings (0% – 100%)
• Light Capacity (as supplied): Connect and control 2x VLI Series lights simultaneously
• Light Capacity (MAX): Connect and control up to 4 x VLI Series lights simultaneously (additional lights & control leads sold separately)
