Camec 13kW Black Digital Instantaneous Gas Water Heater Bundle with Flojet 12V Triplex Water Pump

Description

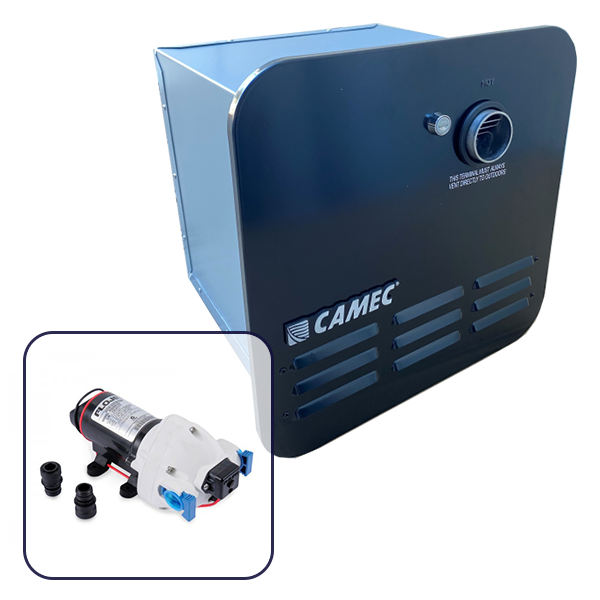

Camec 13kW Black Digital Instantaneous Gas Water Heater Bundle with Flojet 12V Triplex Water Pump

Pack Includes:

• Camec 13kW Digital Instantaneous Gas Water Heater, Black - A-051460
• Flojet 12V Triplex Pump C-Tick Quad Fittings T/S 12mm OD Tube - A-041723

Why Our Customers Love It: Upgraded to 13kW, these units are more powerful with increased performance for instant hot water.

Why buy the Gas Water Heater with a new 12V Pump?:

• The minimum pump pressure for the heater is 5 litre per minute, i.e., 0.5 bar
• While the Maximum pump pressure for the heater can't exceed 50 litre per minute, i.e., 5 bar

The Flojet Pump meets the follow requirements for the IHWS:

• The supply gas pressure is 2.75 kPa
• It is important that the water lines & fittings are in a good condition to and from the IHWS to ensure that there are no leaks. We recommend to use fittings such as John Guest type rather than 'barb' type fittings.
• It is recommended that the water is filtered prior to entry to the pump to ensure no particles interfere with the pump operation or compromise the heat exchanger in the IHWS.
• The heater is designed to produce water with a temperature rise of 37°C above ambient, at a flow rate of 5 litre per minute. Exceeding the flow rate will result in cooler water. If the ambient temperature is very low (i.e., close to freezing), the water in the supply tank will be cold, resulting in the cooler than expected water.

NOTE: The installation, commissioning and service must be performed by a licensed gas fitter, service agency, OEM or a gas supplier - If not, the warranty will be voided.

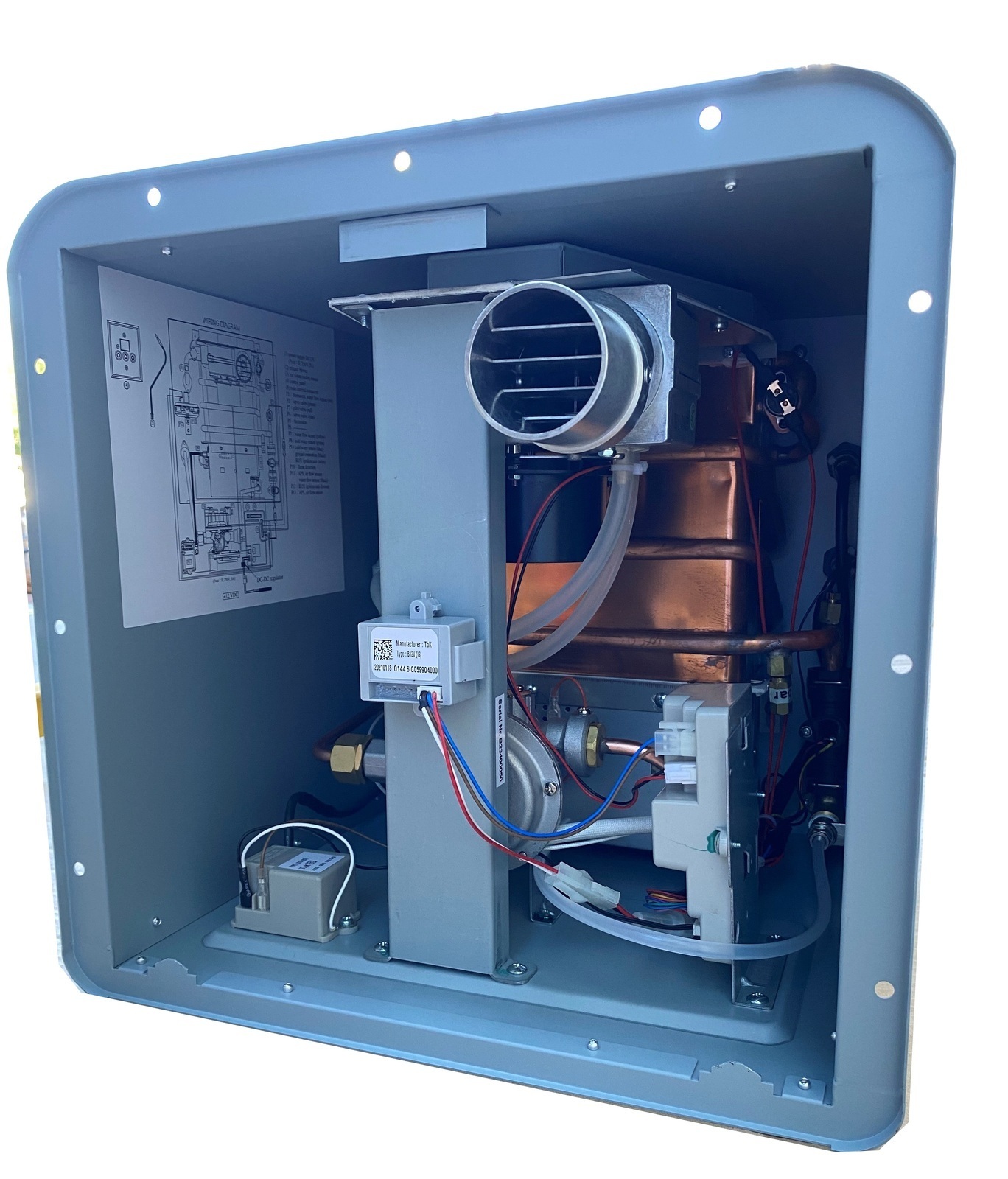

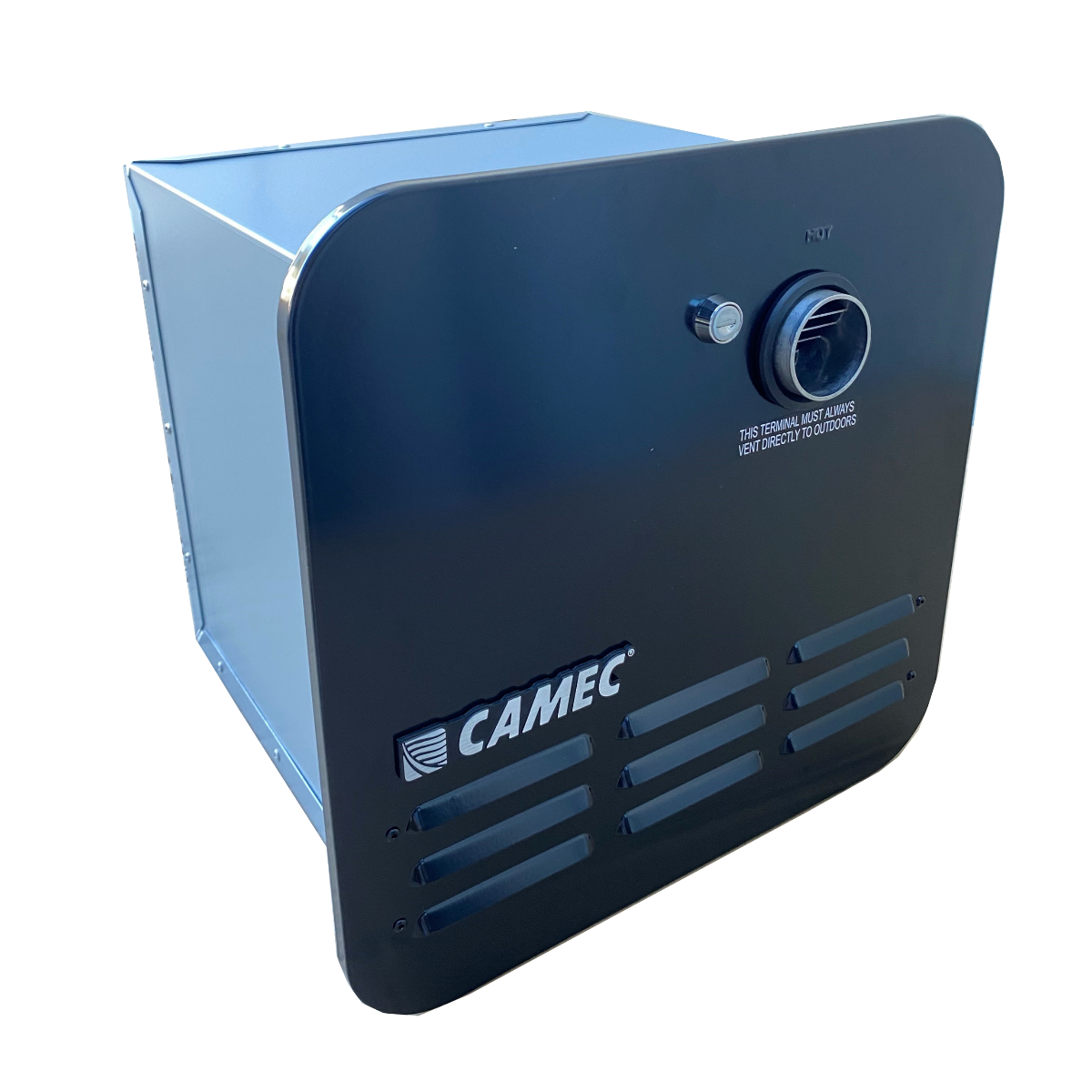

Camec 13kW Digital Instantaneous Gas Water Heater, Black

Now improved CAMEC digital instantaneous gas water heater is now available with 30% more power than the previous model. The increased performance of the instantaneous gas water heater provides continuous hot water with an increased water flow for daily use when caravanning.

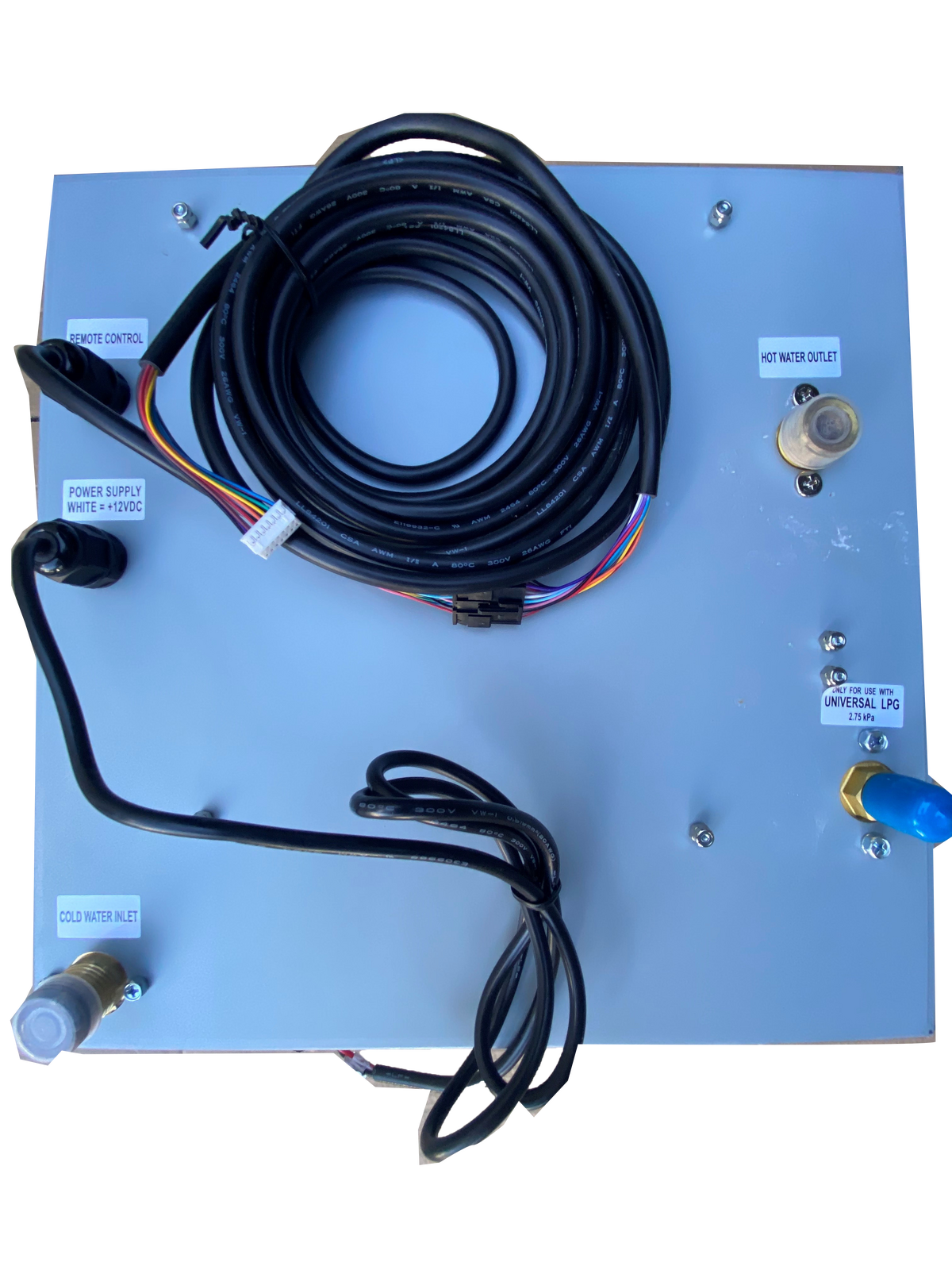

The external housing, water and gas connection points remains unchanged on the new instantaneous gas water heater. This reduces the need to do any additional installation work should an upgrade to the new instantaneous gas water heater is required.

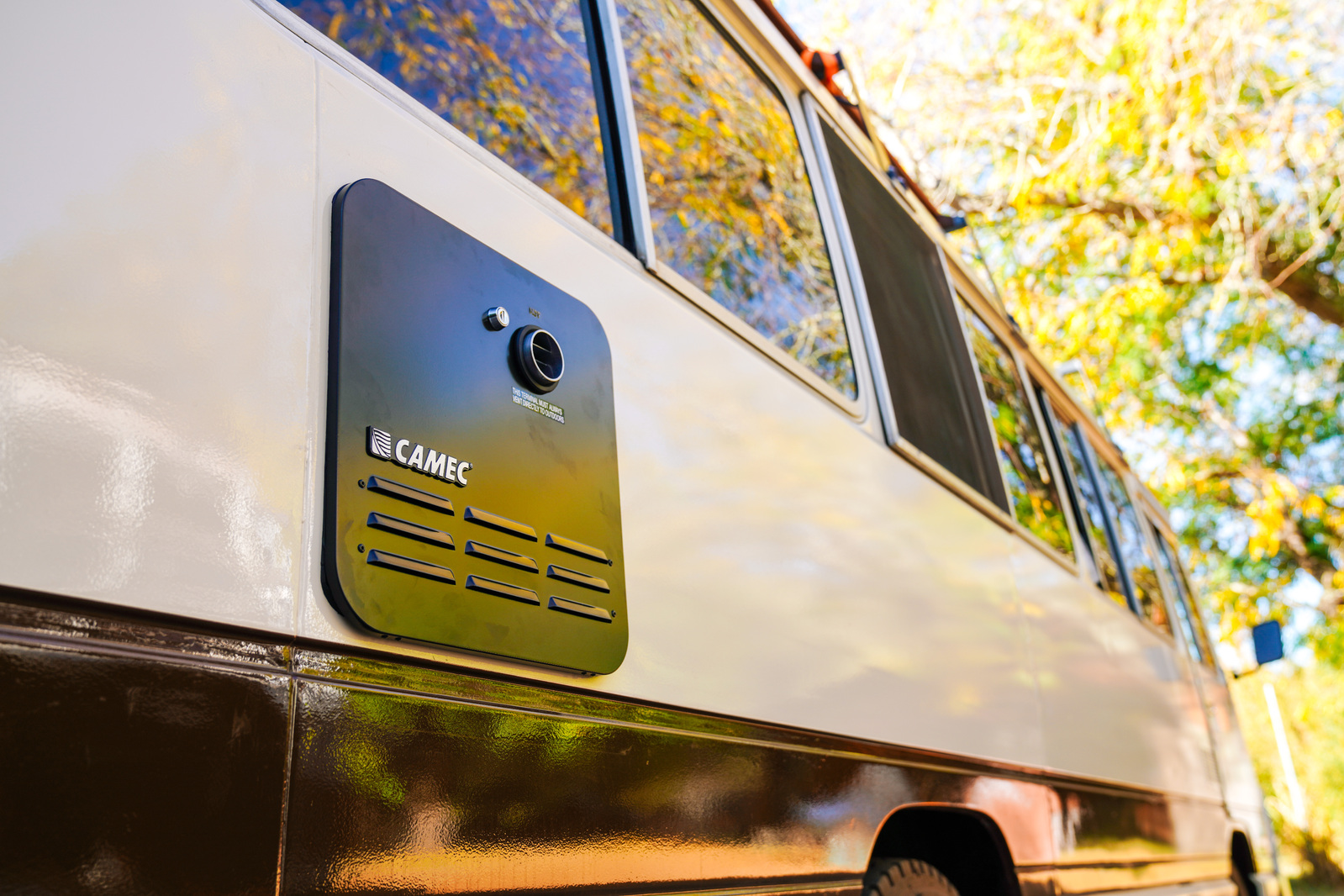

Never have to wait for your hot water to heat up again with the Camec Digital Instantaneous Hot Water Heater.  This hot water heater provides an instant and continuous supply of hot water at your selected temperature via the remote digital display.  There is no need to mix the water, so you can have peace of mind knowing that the temperature will not be too hot for children.  Instantaneous water heating provides economical benefits in both your power and gas consumption and water useage.  You can operate this hot water heater from just one 9kg gas bottle. Sized to fit most existing water heater cutouts, this Camec instantanoues water heater offers easy installation from the outside of your RV.  Being instantaneous, the gas will only flow when the tap is turned on, so you will use less gas.  the other benefit is that there is no need for a storage water tank so you will keep the weight down and can utilise  all the water in your RV water tanks.

Features:

• Black external door
• Designed specifically for RV use
• Australian Gas and Watermark Approvals
• Operates from 12V DC & Gas
• Continuous hot water flow

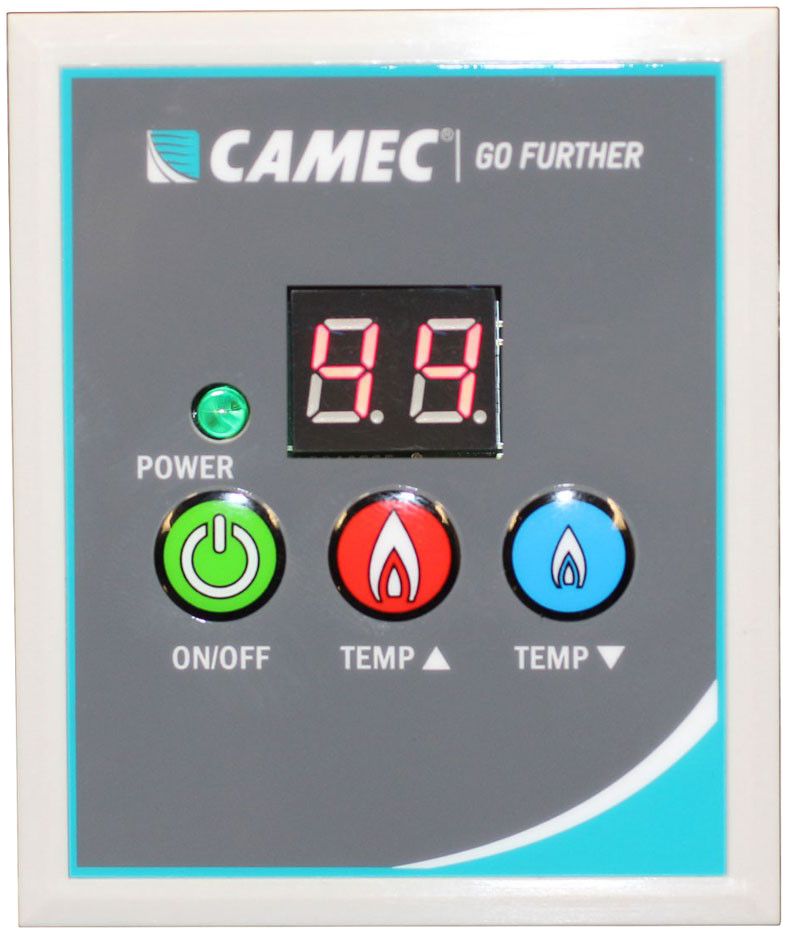

• Remote digital temperature controller with error code display and on/off switch
• Up to 60% less gas consumption than regular tank models
• No anode to replace
• Door lock compatible with Camec One Key System
• Easy to install and suits most existing water heater cut outs
• Patented rain protection exhaust
• Low power and gas usage
• System stores the last selected water temperature setting even when powered on and off.
• Digitally monitors incoming water temperature, water flow and output temperature

Specifications:

• Operates on: 12V DC & Gas
• Gas Type: Universal LPG
• Nominal Gas Consumption: 49.14 Mj/h
• Supply Gas Pressure: 2.75 kPa
• Maximum Gas Input: 13.65 kW
• Supply Voltage: 10.5-15V DC
• Max Current: 1.5A
• Minimum Water Flow Rate: 1.5 l/min
• Selectabe Water Temperature: 35-60C
• Water Heating Capacity: 5.0 l/min at 37C
• Weight: 12.1 kg
• Dimensions: 380 x 380 x 330 mm (WxHxD)
• Warranty: 2 year

Note:

• This is a gas powered product and needs to be installed and certified by a qualified and licensed gas-fitter, as improperly or illegally installed products will void the manufacturer’s warranty, and could pose a safety risk.
• Not suitable for marine application.

NOTE: This model has been updated to 051460, it used to be called 043993.

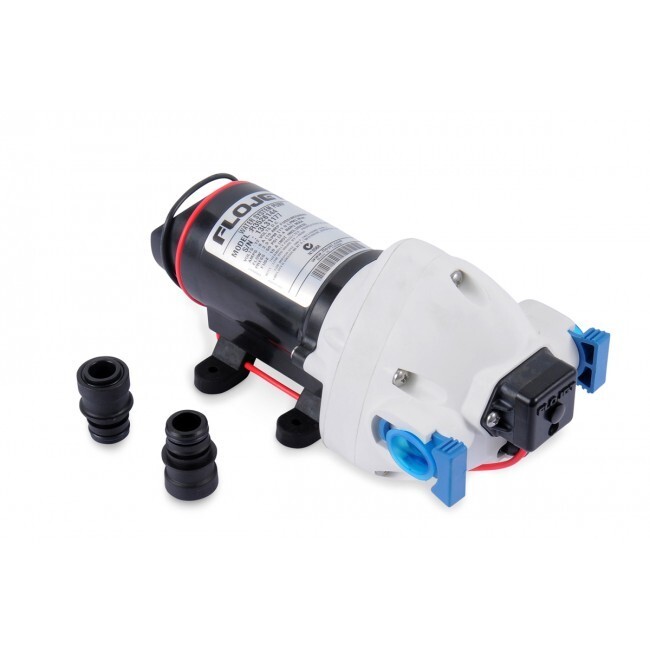

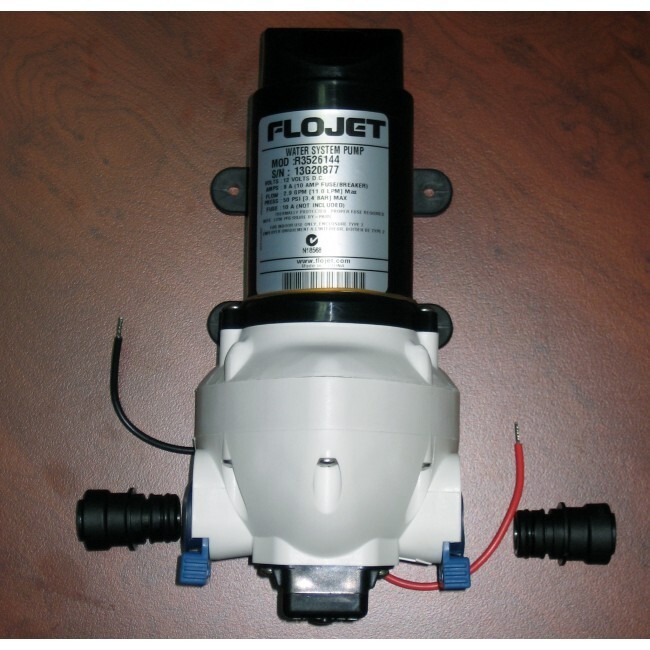

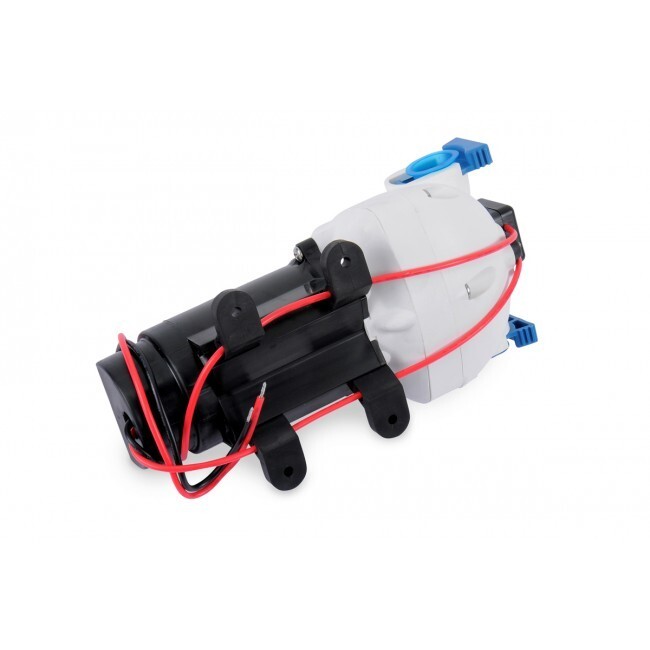

Flojet 12V Triplex Pump C-Tick Quad Fittings T/S 12mm OD Tube - A-041723

If you are looking for a high pressure pump for your caravan, the Flojet Triplex pump was engineered as the most reliable and advanced pump on the market. These pumps feature a unique three chamber design that allows the pumps to offer exceptional pressures and flow rates on demand as soon as you open a tap. This 12 volt Triplex pump pushes 11L of water per minute and has an automatic cut off of 50 psi.

Specifications

• Self-Priming up to 3 m
• Capable of handing wide range of chemicals
• 12 volt
• Pumps 11L per minute
• Quad fittings x 2 to suit 12mm hose
• Internal bypass
• Max amps: 8

Note: This product is a gas appliance that must be installed by a qualified and licenced gas fitter to the current Australian Standard. Failure to do so will void the warranty and may pose a health and safety risk.
