Canopy Load Bar Kit / 1165mm (W) - by Front Runner
SKU: KRCA007 Learn More»
Description
Canopy Load Bar Kit / 1165mm (W) - by Front Runner

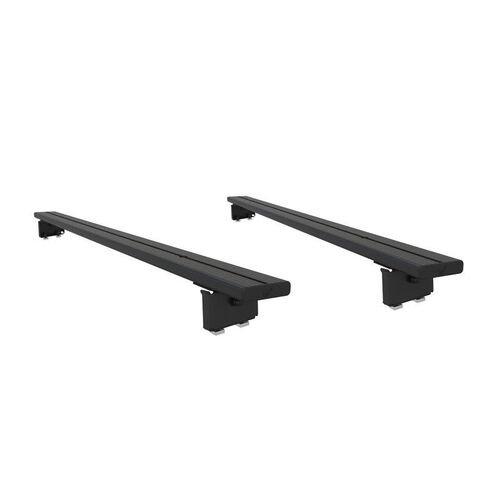

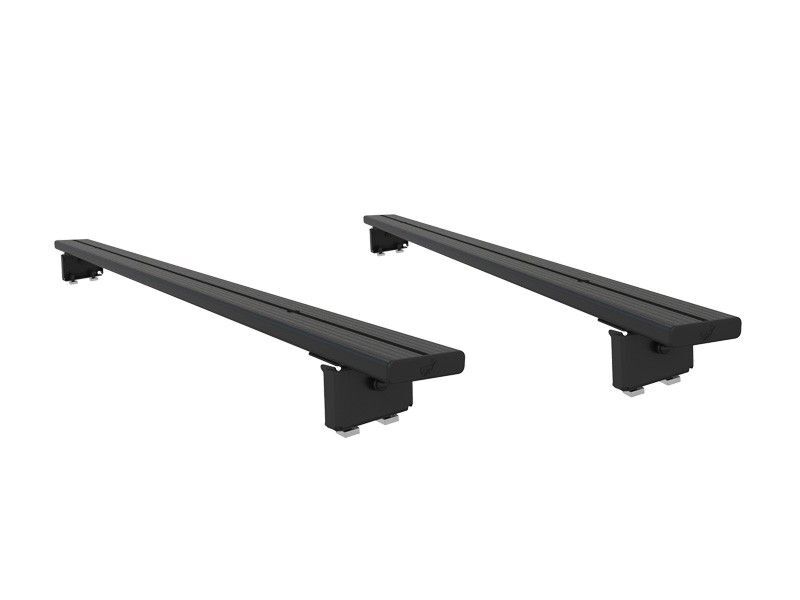

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 1150mm Canopy Tracks, and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.
You may not have the need for a full roof rack and find that you can get by using a set of Front Runner Load Bars.
These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
Front Runner has a wide range of suitable accessories for all their roof racks & load bars. In the accessories list above, you will find the most popular accessories. Please CLICK HERE to find ALL Front Runner accessories!
Consisting of:
- 2 x Foot Set / 40mm-50mm - by Front Runner
- 1 x Load Bar Pair 1165mm(W) - by Front Runner
- 1 x Canopy Tracks / 1150mm(L) - by Front Runner
Material used:
- Black epoxy powder-coated T6 aluminium
- 3CR12 Stainless Steel
Approximate Installed Weight 7kg (14lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Installation Instructions for Foot
Installation Instructions for Universal Track
Specifications
SKU KRCA007
Brand Front Runner
GTIN 6009542231976
Product Category Roof Racks and Platforms
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What is the load rating on road and off-road for the Front Runner roof racks & load bars?
Great question! Front Runner is one brand that has the same load rating for both on road and off road for all their roof racks/platforms. What you need to consider when loading the Front Runner racks & bars are:
- What is your load capacity of your car roof?
- What is the load rating of the roof rack/platform?
- What is the weight of the roof racks/platform?
- What is the weight of everything you want to add on your racks/platform?
For example:
Using a 2011 Toyota Prado 150 Series with a roof load rating of 100kg. The weight of the Front Runner Slimline II Roof Rack (KRTP011T) is 32kg. This leaves 68 kg on road and off-road load rating for you rack. You are able to add up to 68kg of gear on the roof rack.
