Century 55Ah AGM Deep Cycle Battery Bundle with eArc 100W Flexible Solar Panel

Description

Century 55Ah AGM Deep Cycle Battery Bundle with eArc 100W Flexible Solar Panel

 Pack Include:

• Century 12V 55Ah AGM Deep Cycle Battery - C12-55XDA
• eArc 100W Flexible Solar Panel - SMF100M-3x12

Century 12V 55Ah AGM Deep Cycle Battery, C12-55XDA

Century AGM Deep Cycle Batteries are the ultimate in deep cycle battery performance, designed to provide longer life and  dependable deep cycling capability in the harshest of operating conditions and environments.

The Century Deep Cycle AGM range utilises Absorbed Glass Mat (AGM) technology which absorbs the liquid electrolyte within highly porous glass fibre mat separators. This eliminates loose electrolyte whilst the sealed maintenance free design prevents acid leaks and the need for on-going maintenance. Extra strong grid designs, superior active paste material and robust internal components ensure lower self discharge, superior vibration resistance, longer cycle life and improved recharge capabilities.

Century Deep Cycle AGM batteries are ideal for use in applications where fast recharge, and superior deep cycle capabilities are required, such as recreational vehicles and accessories, dual battery systems, golf carts, electric wheel chairs, mobility scooters and marine systems.

Features:

• Spill proof - ideal for 90° side mount applications
• Fast recharging capabilities and long cycle life
• Maintenance free design

Specifications:

• Cells: 6
• Voltage: 12
• Capacity: 55Ah@20hr-rate to 1.75v per cell @ 25°C
• Operating Temperature Range: Discharge: 20°C - 60°C | Charge: 0°C - 50°C | Storage: -20°C - 60°C
• Normal Operating Temperature Range: 25°C ± 5°C
• Float Charging Voltage: 13.6 to 13.8 VDC/unit Average at 25°C
• Self Discharge: Century AGM batteries can be stored for more that 6 months at 25°C. Self-discharge rate less than 3% per month at 25°C. Please charge batteries before using.
• Weight: Approx. 18.0kg
• Max. Discharge Current: 550A (5 sec)
• Internal Resistance: Approx. 6mΩ
• Terminal: M6 Insert
• Container Material: A.B.S. (UL94-HB)
• Recommended Max. Charging - Current Limit: 16.5A
• Equalisation & Cycle Service: 14.6 to 14.8VDC/unit Average at 25°C
• Dimensions (L x W x H x TH): 229mm x 138mm x 210mm x 235mm

Note: Warranty void if mounted bonnet

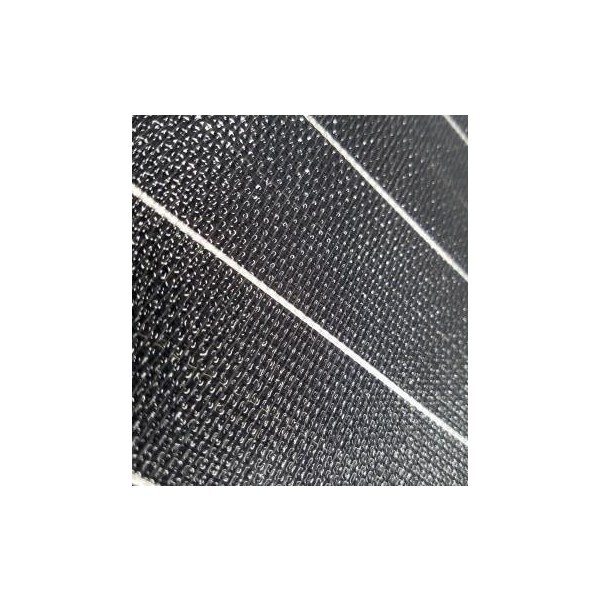

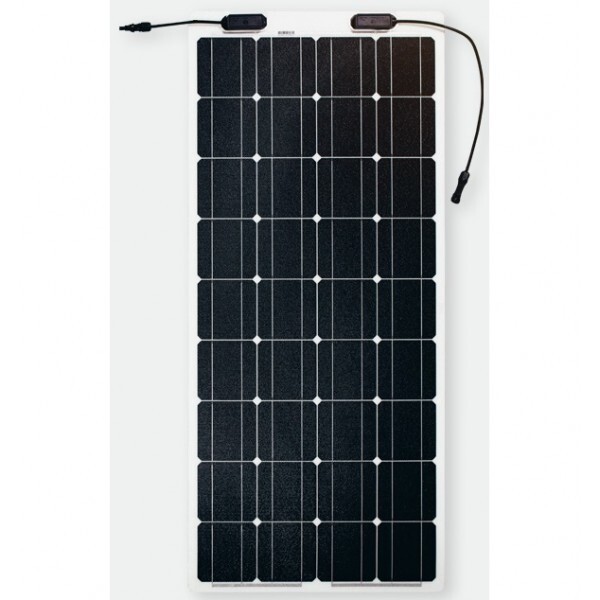

eArc 100W Flexible Solar Panel

2022 VERSION - Now even smaller footprint using the latest cut Mono-PERC cells! These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.

Made with a Patent Pending composite material similar to those used in airplane windows.  These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass.

Mounting Options:

1. The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
   - One roll of very high bond double sided adhesive tape
   - Polycarbonate strips
2. Installation via very high bond double sided adhesive tape provides a low profile secure bond.

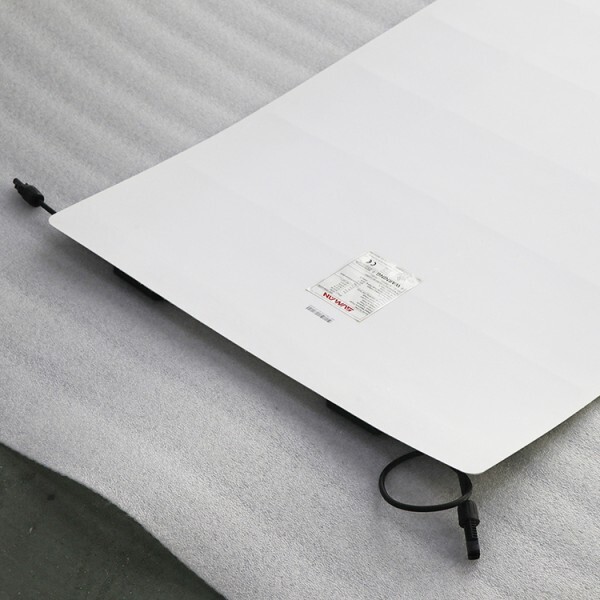

3. The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips.  Installation then becomes a simple peel and stick. Mounted in factory to panel prior to shipping. You'll need to remove thin plastic covering prior to mounting in place.
4. A structural silicone (Fix8) can be used to adhere the panel to a surface.
5. The panel can be secured using bolts or screws through eyelets in the panel. You will get the correct amount for the size of the panel.

• Please note: You will only require one mounting option! Please choose one of the mounting options in the Accessory List above.

eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.

Tougher, lighter, thinner and more durable

• Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
  • ​This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
• Light - 100W frameless is 1.8kg
• Thin - 2mm
• Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec​
• Strong - rated 2400 pascals for wind and 2400 pascals for load
• Durable - ​10 year product warranty for building and 5 years for mobile application
  • ​25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
• Output - Efficient monocrystalline cells, 25 year performance guarantee
• The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation

Specifications:

• Wattage: 100 W
• Solar cells: 36 (4x9)
• Maximum Power (Pmax): 100
• Maximum Power Voltage (Vmp): 19
• Maximum Power Current (Imp): 5.27
• Open-circuit Voltage (Voc): 23.5
• Short-circuit Current (Isc): 5.67
• Operating Temperature (°C): -40 °C to 85 °C
• Maximum System Voltage: 600 V DC (IEC)
• Maximum Series Fuse Rating: 20 A
• Application Class: Class A
• Power Tolerance: 0/+5 W
• Backsheet: White
• Junction box: IP 68 rated (each j-box has one by-pass diode)
• Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
• Connector: MC4 compatible

Note: To ensure the best outcome of your eArc solar panels, we recommend to our Victron solar charge controllers with your flexible solar panels. You can find our range of Victron Solar Charge Controllers HERE
