Dieselheat DH15 Hydronic Diesel Hot Water System with Eberspacher D5E HS3 Furnace

Description

Dieselheat DH15 Hydronic Diesel Hot Water System with Eberspacher D5E HS3 Furnace



Compact insulated diesel hot water for motorhomes, caravans, off road trucks and small to medium boats

The DH15 replaces the DH12, Dieselheat’s most popular diesel hot water system, with super fast heat up time, the DH15 will provide a sink full of hot water or a continuous shower at 2.5L/min within 9-10 min of a cold start.

The beautifully engineered D5E HS3 furnace from Eberspacher modulates it’s heat output from 1.3 to 5kW, so the DH15 works with a small coolant volume whilst avoiding excessive cycling, this also minimizes noise and power consumption.

The DH15 is sold pre assembled and tested for easy installation. The kit includes the genuine Eberspacher installation kit with wiring, fuel line, exhaust, inlet air silencer and on/off switch.  The Eberspacher Easystart Pro controller can also be purchase separately.



The DH15 has the following features:

• All 316 stainless steel, suitable for caravans and boats
• Insulated dual skin tank retains heat for efficient operation
• Compact design fits in tight spaces
• Pre assembled and tested for easy installation
• Fast heat up time, around 9-10min from cold
• Integrated air heating (optional)
• Includes Watermark approved tempering valve and plate heat exchanger to ensure hot water is always delivered at safe temperatures

Pair the DH15 with a Bricor Ultra Max low flow shower head to have super water wise showers – 0nly 2.5L/min, great for a caravan or boat where water is limited. Alternatively use the Bricor Elite shower head for a more luxurious 4-5L/min shower.

By adding in a Kalori fan head, the DH15 diesel hot water becomes an effective air heater, giving off up to 4kW of air heating from the single quiet Kalori Silencio 2 fan head.

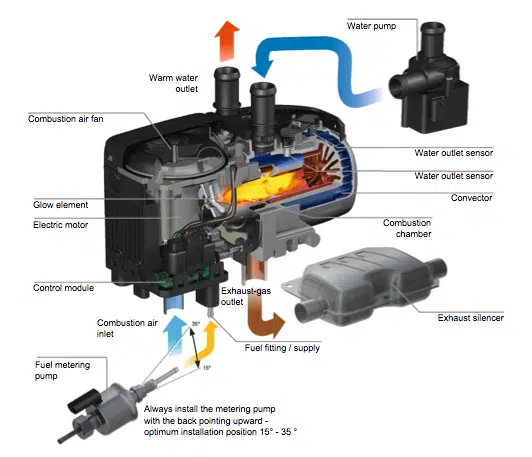

The advantages of the brand new Eberspacher D5E HS3 Furnace include:

• much quieter in terms of the combustion fan and overall noise
• uses the new Eberspacher super quiet fuel pump (no ticking sound)
• drops to low power much faster, so re-starts are much gentler and quieter
• longer service life – 3000 hours is claimed
• stepless power output from 1.3 to 5kW
• when using fan heads for air heating, as long as the fan head is dissipating over 1.3kW it won’t cycle at all, and at low power it is as quiet as an air heater
• soft start water pump that primes more easily
• improved water and dust resistance
• excellent installation kit

Kits now include the high temperature silicon floor plate to get the exhaust through the floor with a dust/water proof seal.

System Performance:

• Time to useable hot water from cold start: 9min
• Time to fully hot: 14min
• Regeneration time between showers: 7min
• Length of shower assuming 30 degree temp rise using Dieselheat shower heads:
• Bricor UltraMax 2.5L/min @ 40PSI: >15min
• Bricor Elite 4L/min @ 40PSI:   7min

Length of time the system can achieve a 30 degree temperature rise:

• 2L/min – >15min
• 3L/min – 13min
• 4L/min – 6min
• 5L/min – 3 min

These numbers are all affected by ambient temperature, installation layout and assume no concurrent air heating, so should be taken as a guide.

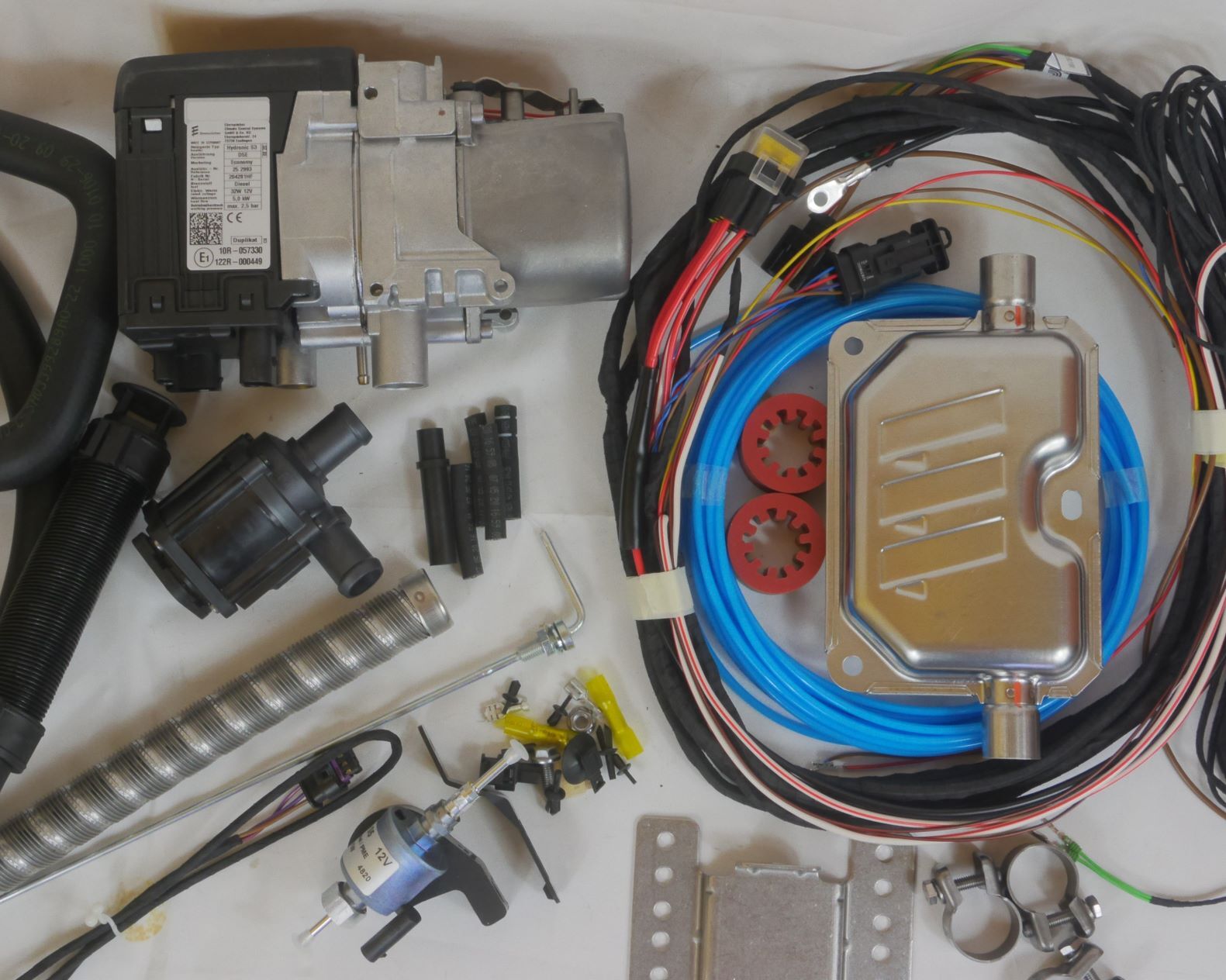

Kit Contents:

The pre-assembled and tested hot water system base kit includes:

• Insulated 15L hot coolant tank
• Eberspacher diesel hot water furnace
• Combustion air silencer
• Exhaust system
• Silicon exhaust plate
• Tempering valve
• Wiring loom
• Fuel pump and fuel line
• On/off toggle switch

Note: the system is not shipped with coolant. The purchaser is required to fill the tank using a standard automotive corrosion resisting coolant mix.



Specifications:

• Bare Tank including cap: 340W x 320H x 220D
• Tank with tempering valve installed: 400W x 320H x 220D
• Full system allowing for install brackets, furnace and plumbing fittings (required space): 450W x 320H x 340D

Eberspacher D5E HS3 Technical Manual, click here:
