Dieselheat DH9 Hydronic Diesel Hot Water System with Eberspacher D5E Furnace & 1.8kW Ducted Fan

SKU: P2DH9DF Learn More»
$4,050
In Stock1-2 Days Dispatch

EXTRA $75 OFF! Add to cart to get an instant discount
SALE ENDS:

CALCULATE SHIPPING:

Description

Dieselheat DH9 Hydronic Diesel Hot Water System with Eberspacher D5E Furnace & 1.8kW Ducted Fan

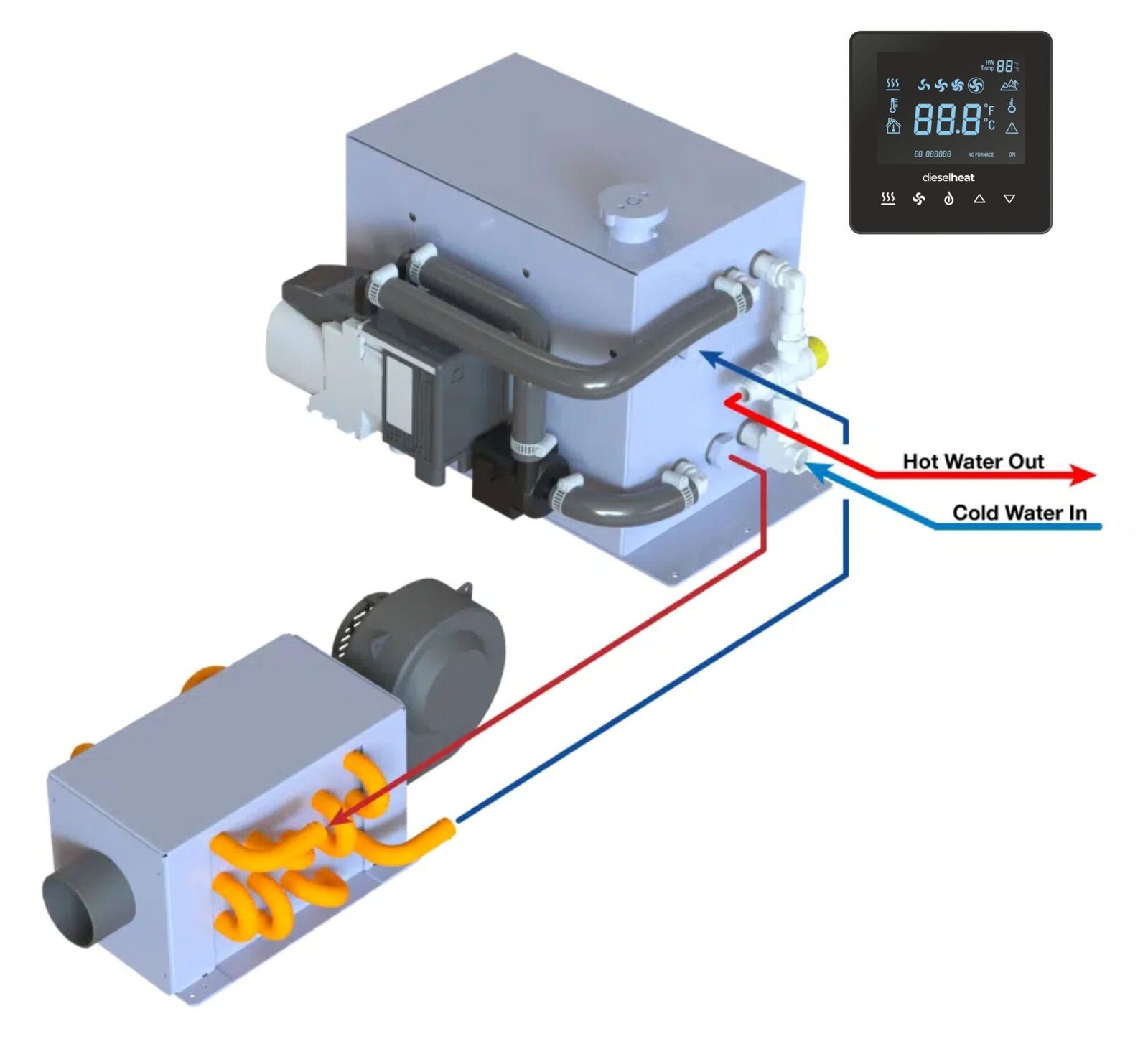

The DH9Duo combines Dieselheat’s DH9 hot water system with our own 1.8kW ducted fan and thermostat to provide a compact hot water and air heating package.



Key System Features

  • Quite, reliable German Eberspacher furance 1.3kW to 5kW output in 32 power levels
  • Easy to use thermostat to control air heating and turn hot water on/off
  • Compact, with separate air heating and hot water components allows flexible install arrangements
  • Automatic coolant shutoff to air heating when not in use (to minimise unwanted heat)
  • Fast heat and re-heat times
  • Quiet and powerful (1.8kW) air heater

See here to compare size, weights and available hot water between different DH Hydronic systems.

The DH9Duo is sold mostly pre assembled and tested for easy installation.

DH9Duo kit suits installations where the fan heater is within 1m of the hot water system and no more than 0.5m above it. For setups where the fan head is further away speak to Dieselheat about a custom kit.

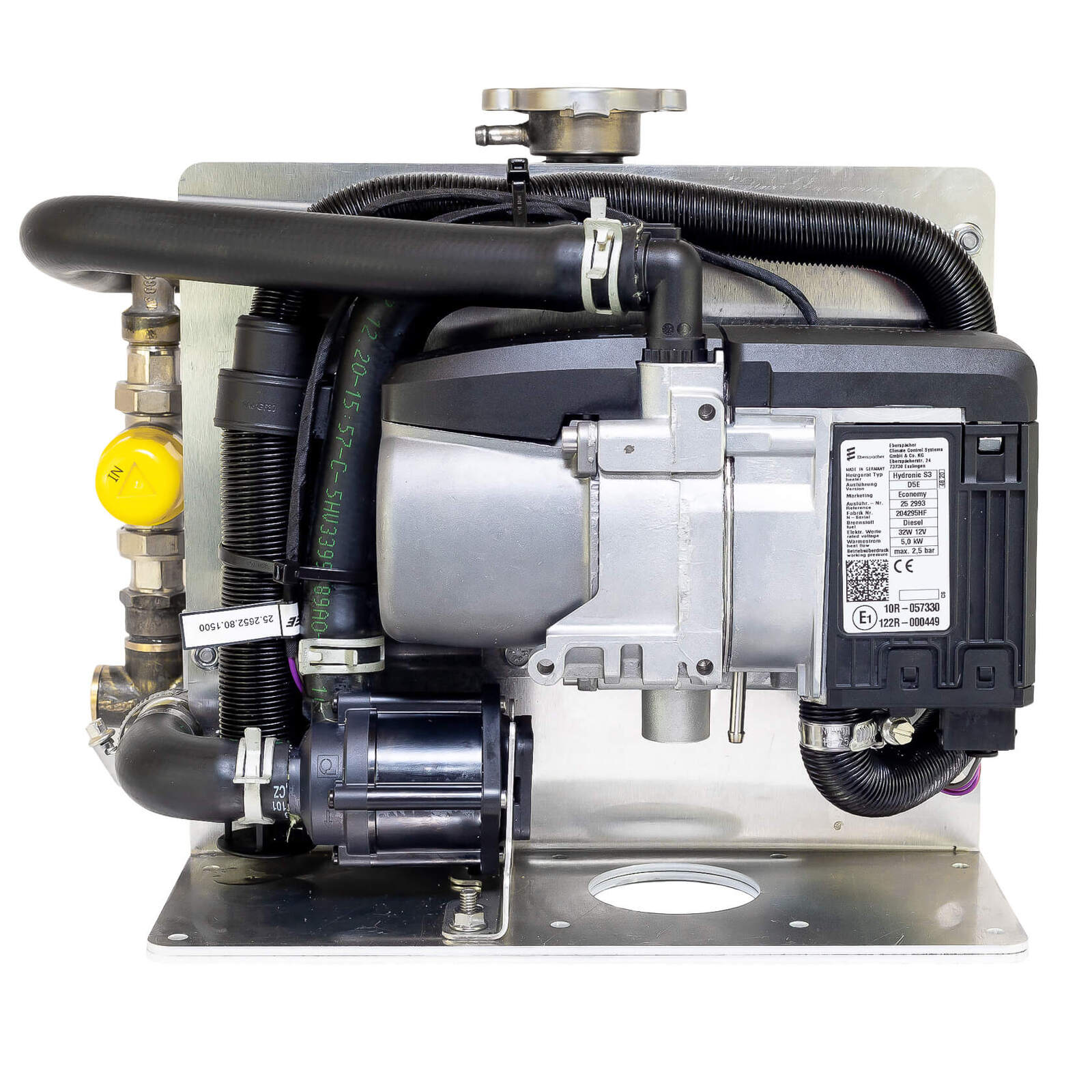

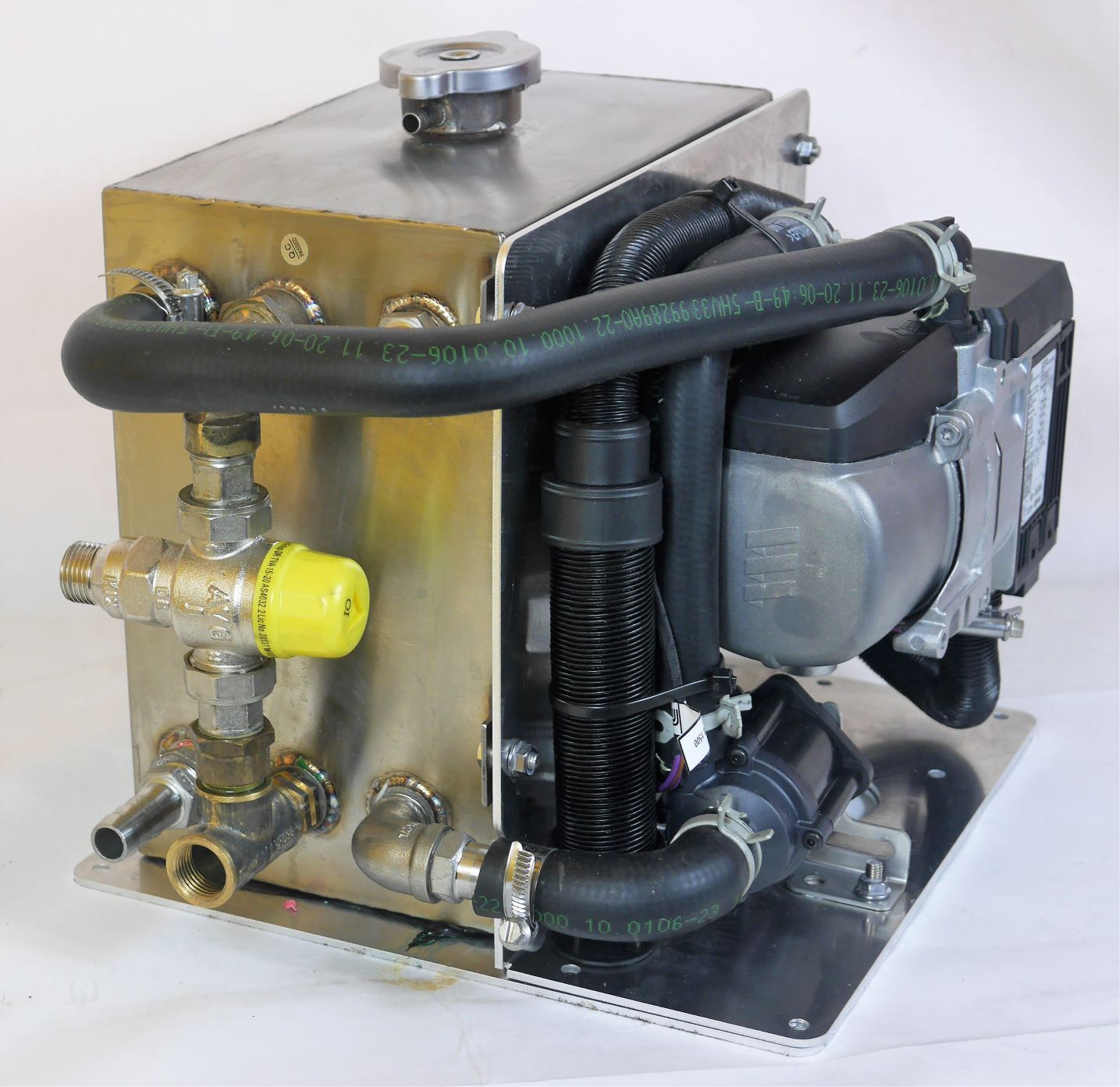

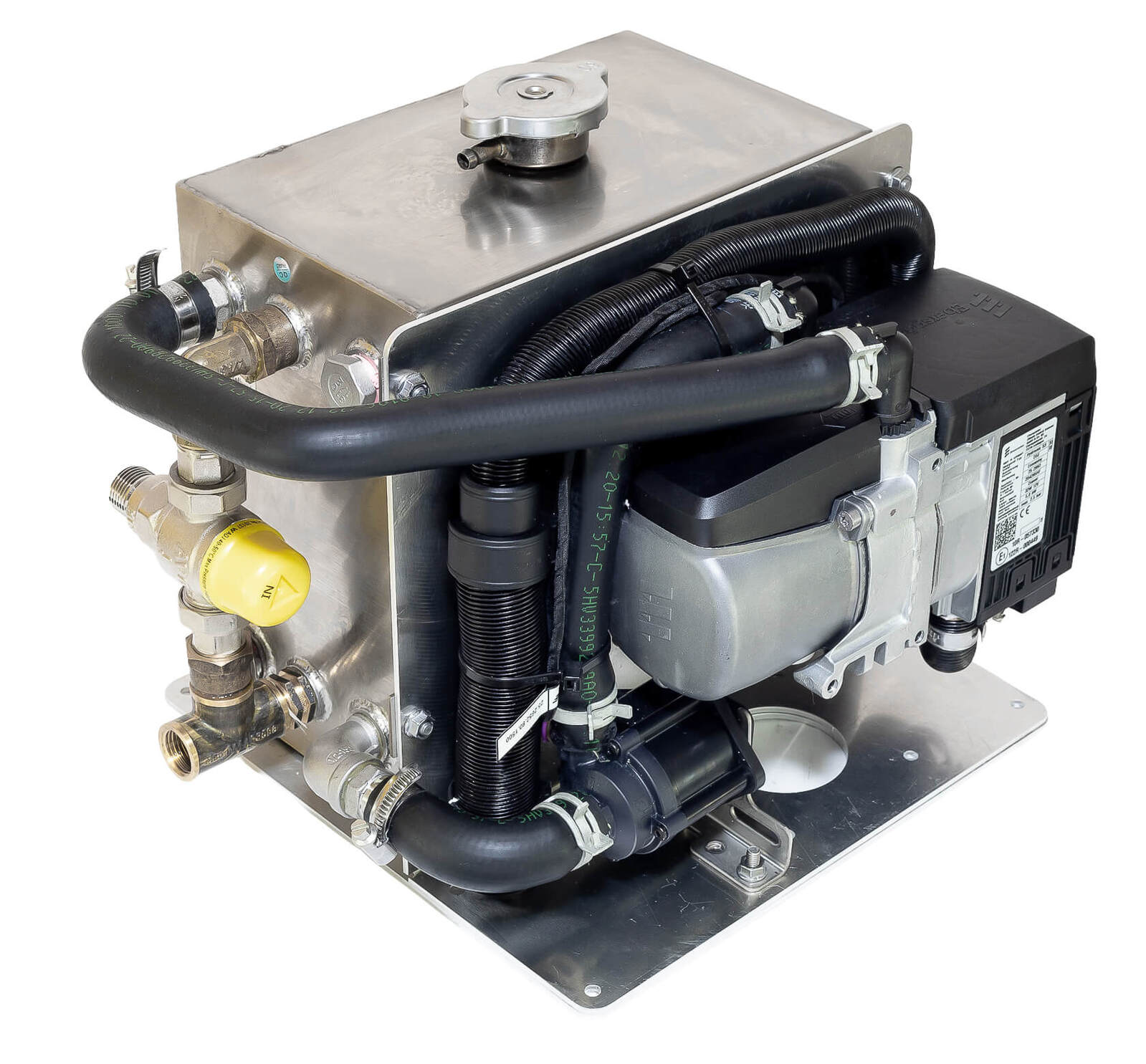

The DH9 Features

  • Reliable, quiet Eberspacher furnace is best in class with silent fuel pump and 3000h service life.
  • Stepless power output from 1.3 to 5kW
  • All 316 stainless steel, suitable for caravans and boats
  • DH9 is Pre assembled and tested for easy installation
  • Includes mounting plate and silicon floor plate to seal exhaust through the floor
  • Fast heat up time, around 7min from cold
  • Includes Watermark approved tempering valve and plate heat exchanger to ensure hot water is always delivered at safe temperatures

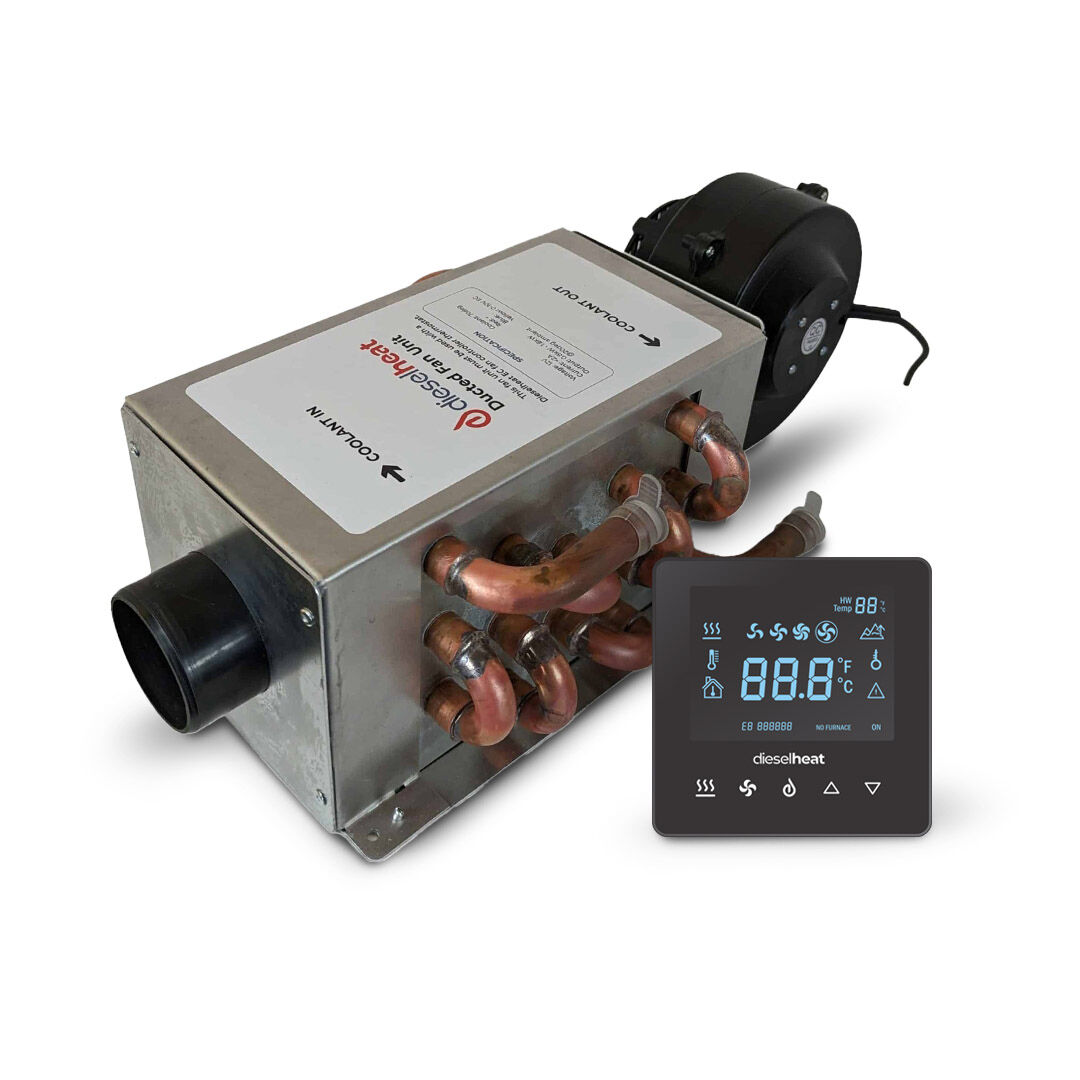

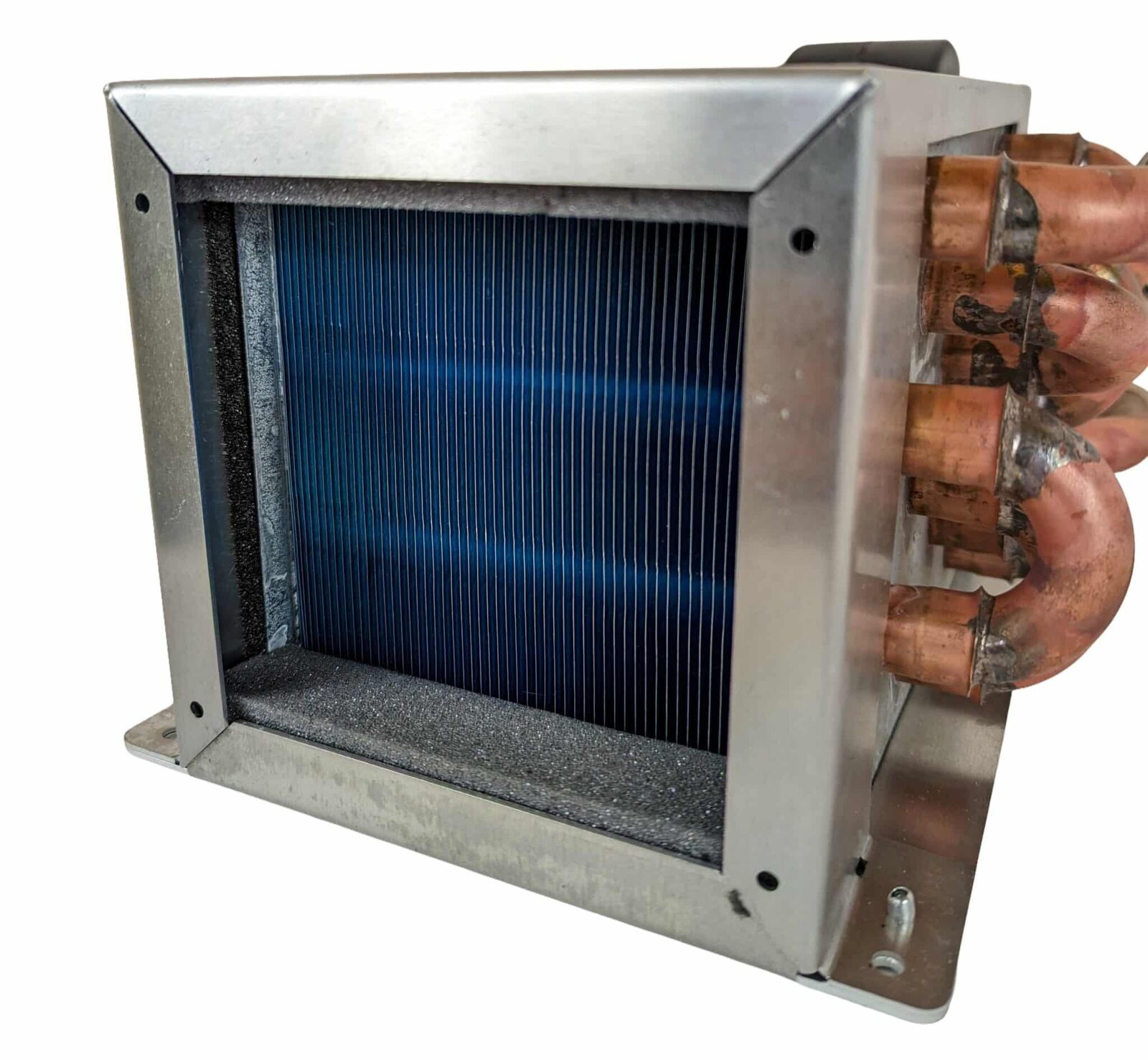

The 1.8kW Ducted Fan Features

  • High quality copper coolant pipes optimised for maximum heat output
  • Quiet electrically controlled brushless AC drum fan
  • Aluminum case lined with specialised sound absorbing foam/vinyl
  • Fan orientation can be changed for installation in tight spaces.
  • 1 x 60mm outlet
  • optional 90mm inlet duct

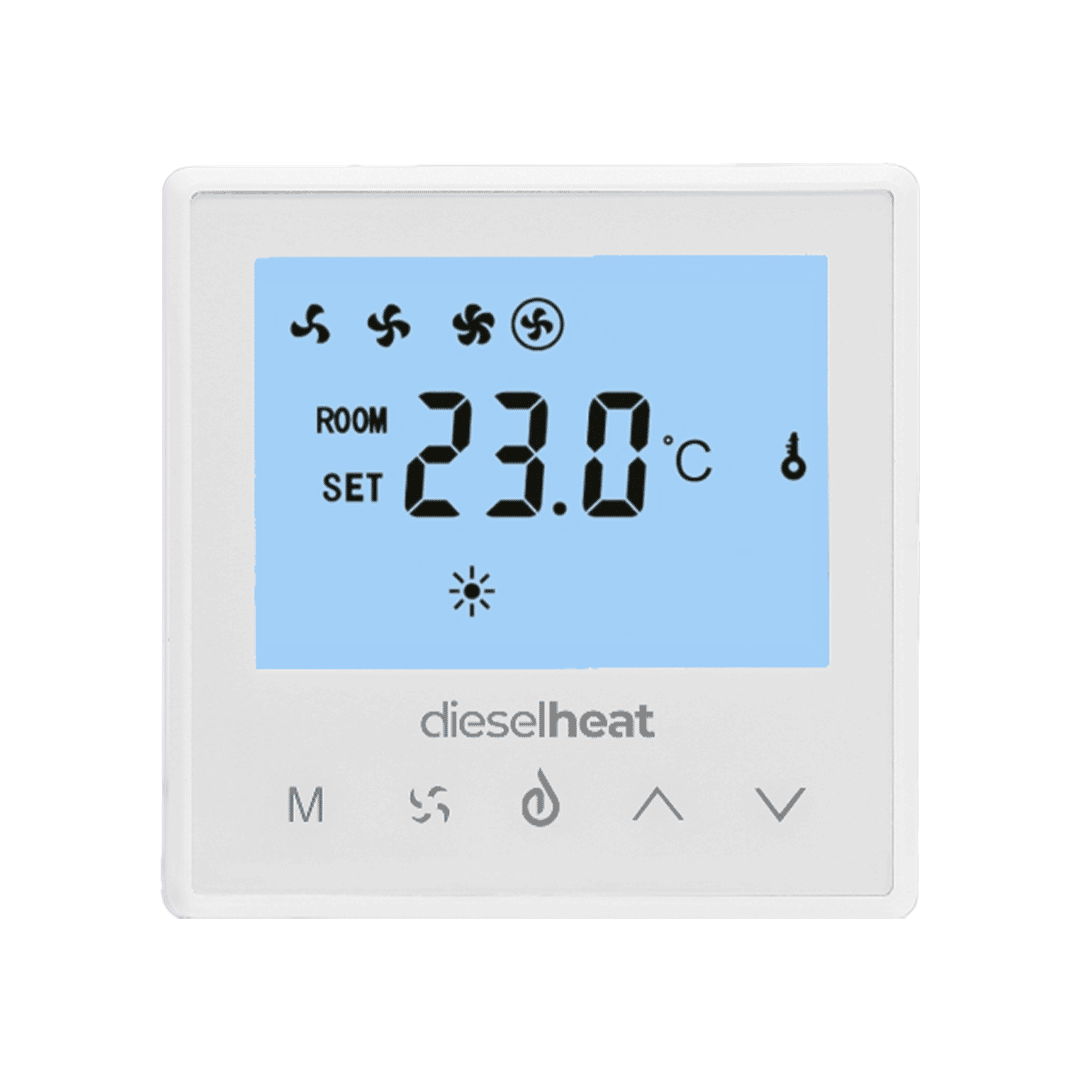

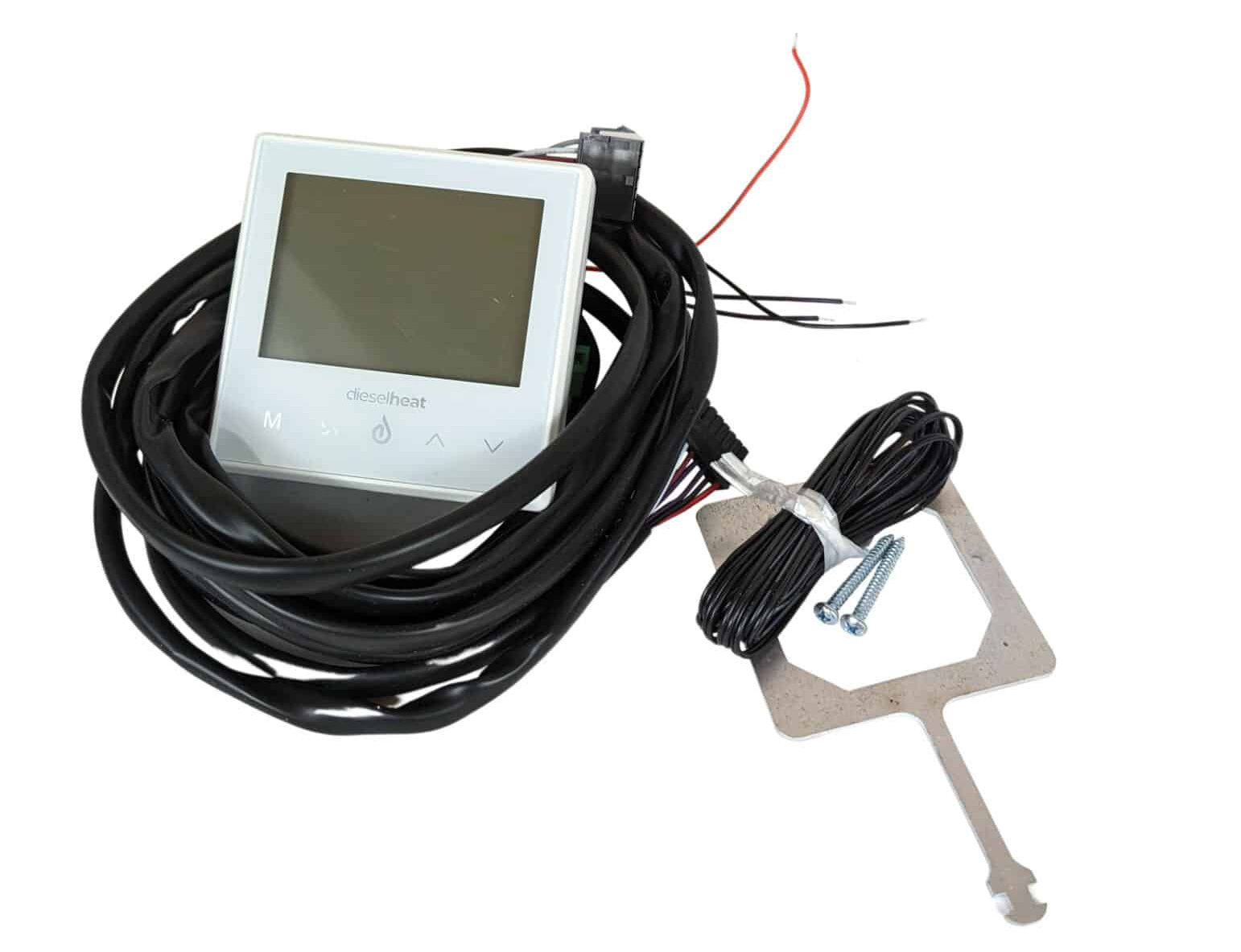

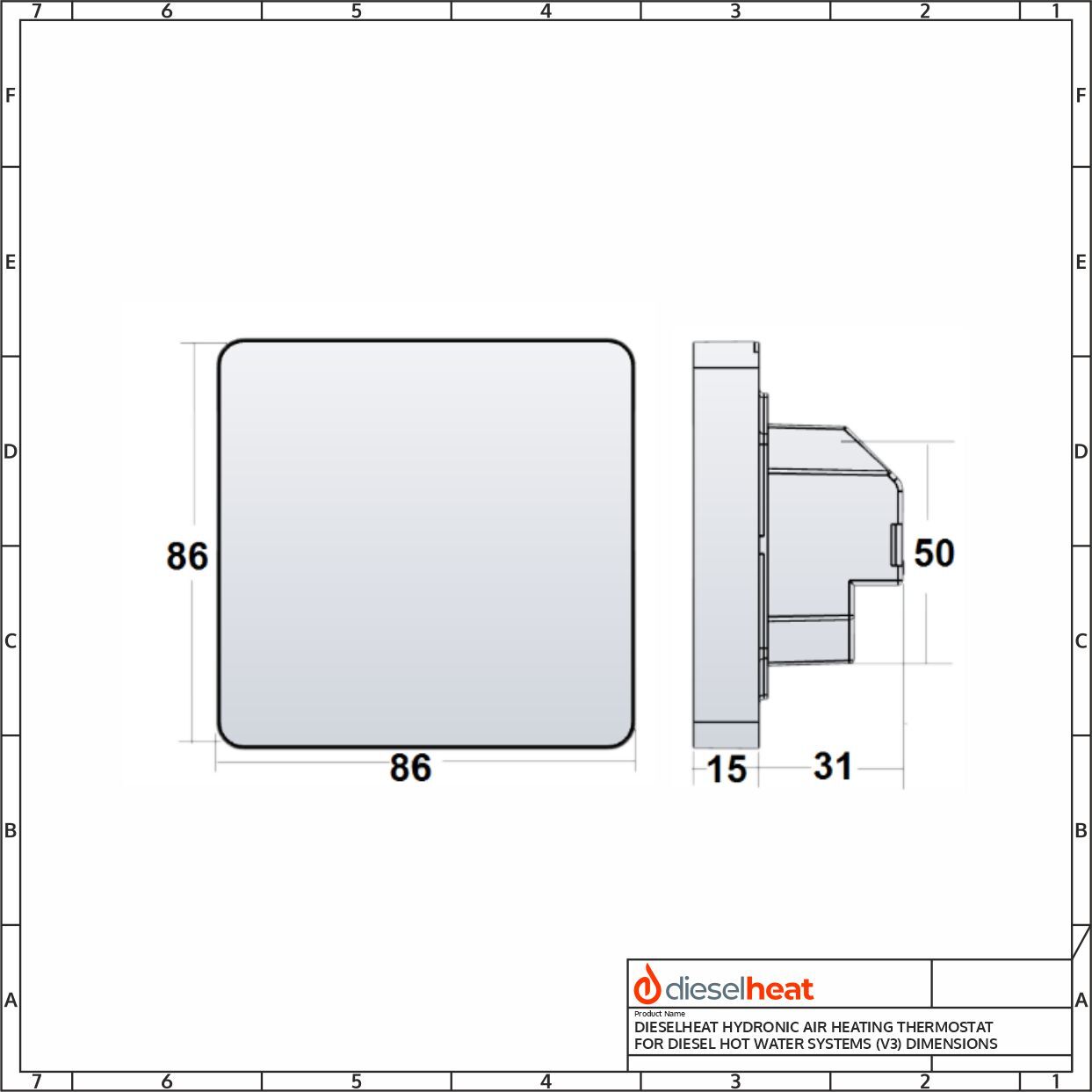

Touch Screen Thermostat Features

  • Simple operation via touch screen with backlit buttons
  • 3 manual fan speeds and automatic mode with infinitely variable fan speed
  • Optional remote temperature probe (supplied in kit)
  • Operate in either hot water only or hot water and air heating modes.
  • Diesel hot water system on/off
  • Air heating electric coolant control valve open/close
  • Programmable parameters include manual fan speeds, min and max fan speeds on auto mode, sensitivity on auto mode.

This controller does not provide any error codes or diagnostics for diesel hydronic furnaces. This function must be provided by the manufacturer’s controller. The Eberspacher Easystart Pro controller can be purchase separately.

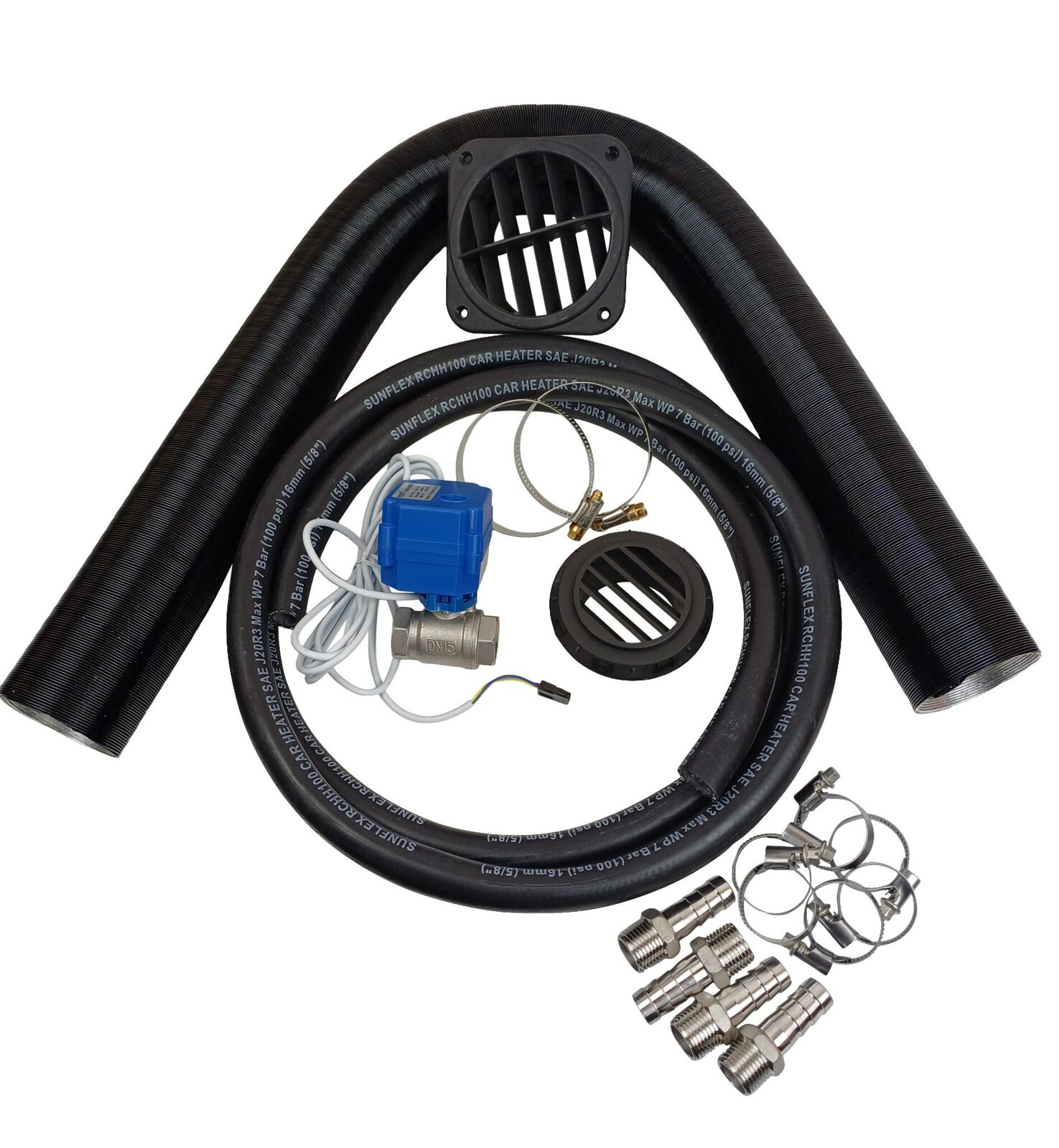

Comprehensive Installation Kit

This kit includes all mounting brackets, plug and play wiring looms, coolant pipe (for fan head up to 1m from hot water system), fuel line, exhaust system, coolant fittings etc. needed to install the system and get it up and running. All Dieselheat system also include comprehensive printed installation instructions written by the system creators in simple to understand English to assist first time installers.

Pair the DH9Duo with our range of water efficient shower heads or digital temperture mixing valves.

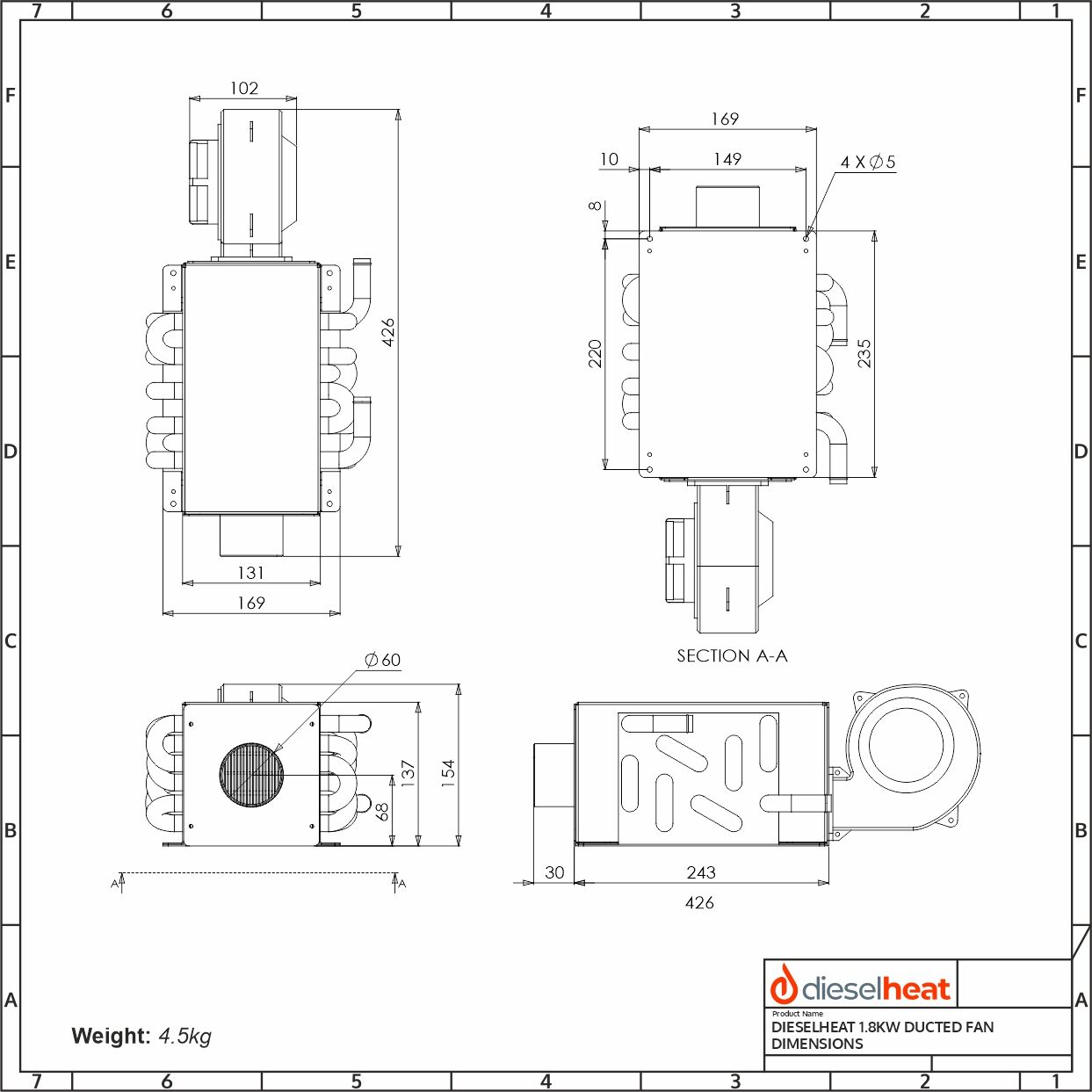

Dieselheat 1.8kW Ducted Fan Head Dimensions:

Eberspacher D5E HS3 Technical Manual, click here:

Show More

Specifications

SKU P2DH9DF

Brand Dieselheat

Product Category RV Heaters and Hot Water

Weight (kg) 13

Dimensions 220 x 155 x 390 (WxHxL) vertical | 220 x 140 x 390 (WxHxL) horizontal (Ducted Fan)

Depth (mm) 280

Fuel Type Diesel

Voltage (V) 12V

Width (mm) 300

Height (mm) 280


NOTE: see full product specifications & further product info in the section on this page.

Q & A


  • Can I mount the Diesel Heat Hot water System on its side?

    The hot water system requires coolant to be filled from the top of the unit, therefore it can not be installed on its side.
