Dometic NRX 80C 75 Litre Compressor Fridge & Freezer
SKU: 9620001868 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Currently FREE with the Dometic NRX 80C 75 Litre Compressor Fridge & Freezer is:
Description
Dometic NRX 80C 75 Litre Compressor Fridge & Freezer
Looking for a cooling solution that’s as versatile as it is efficient? The Dometic NRX refrigerator range offers exceptional flexibility, functioning as a fridge, freezer, or both simultaneously. Powered by a high-end compressor, it features three customizable operating modes accessible via an intuitive illuminated touch panel: Eco for energy-saving performance, Performance for rapid cooling, and Quiet for undisturbed rest.
Designed with elegance in mind, the refrigerator boasts a frameless dark grey door with a sleek full-width handle. Inside, you’ll find a thoughtfully organized space including a removable freezer compartment, adjustable shelves, twin crispers, a bottle holder, and spacious door storage for maximum convenience.The NRX refrigerators deliver stylish, smart cooling with superior energy efficiency. Whether you’re refrigerating or maximizing storage by removing the freezer section, these models adapt effortlessly to your lifestyle.
The Dometic NRX 80C is a refined upgrade to the popular Dometic Waeco CRX80, offering enhanced features for modern living.
Benefits with NRX Compressor Refrigerator:
- 3-in-1 cooling solution: fridge, freezer or both at the same time
- Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent)
- Frameless door with dark silver front panel and full-width handle
- Beveled rear side for maximal utilization of space on board
- Reversible door hinge – can be fitted left or right as required
- Dual function locks can also act as vents for your fridge
- Standard or flush-mount installation frame available as accessory
Features:
- Full-width door handle. Neatly integrated for easy access from every angle
- Touch control panel. Flush-mounted inside the cabinet, with nicely integrated LED light bar

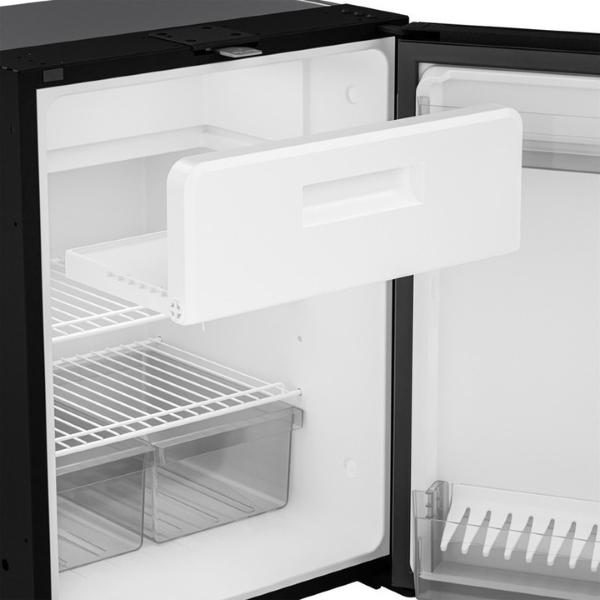

- Removable freezer. The freezer compartment can be easily removed to make room for more fridge storage
- Two crispers. For storing fruits and vegetables for optimal freshness
- Well equipped interior. Freezer, shelves, bottle holder, door tray, crispers – it’s all there
- Bonus Item(s) list above. Note: bonus item size & colour may vary depending on stock
Specifications:
- Total Volume: 75L
- Freezer Volume: 6.6L
- Power Consumption: ~1.05Amp/hr over 24hrs (25°C ambient, 5°C fridge)
- Temperature range: Refrigerator: 0 ~12°C | Freezer Compartment: -15°C ~ -5°C
- Colour: Grey
- Refrigerant Type: R134a
- Dimensions: 475mm x 537mm x 625mm (W x D x H)
- Weight: 20kg
.png)
Specifications
SKU 9620001868
Brand Dometic
GTIN 9331391010370
Product Category Upright RV Compressor Fridges
Fridge Voltage 12 / 24 / 240 V
Total Capacity (L) 75
Fridge Width (mm) 475
Fridge Height (mm) 625
Fridge Depth (mm) 537
Colour Grey
Temperature Range Refrigerator: 0 ~12°C | Freezer Compartment: -15°C ~ -5°C
Weight (kg) 20
Refrigerant Type R134a
Cut Out Required 577 x 635 x 485mm (D x H x W)
Climate class (EN62552) T
Freezer Volume (L) 6.6
Power Consumption ~1.05Amp/hr over 24hrs (25°C ambient, 5°C fridge)
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can this fridge be used as a freezer?
Yes, on the NRX80, you can remove the freezer compartment and set the fridge to freezer mode. With this compartment removed in this mode, the entire fridge can cool to -6C.
For other appliances, such as refrigerators and air conditioners, to ensure the appliances to work efficiently and last longer it is recommended to clean the condenser.
-
What do I need to think about in regards of the ventilation with my Dometic compressor fridge?
Dometic Compressor fridges work best when there is air flowing across the compressor.
For small to medium sized Dometic fridges (NRX models 50 to 80), minimum of one Medium Sized Vent is required. This should be mounted in the van wall, parallel to the compressor at the top of the fridge.
For the NRX115 and 130 models, the Larger Sized Vents are recommended.
For the larger Dometic upright ranges (i.e. RUC, RCD ranges) which are around 150 Litres and above in capacity, two of the Larger Sized Vents are required; one at the bottom and one at the top.
Vent options are:
Medium Sized Vent: Medium Sized Vent:Be sure to refer to the specific product/installation manual for full ventilation instructions.
-
What do I need to know about installing my 12v compressor fridge in my van?
Installation instructions will come with your 12V Compressor Fridge. The installation/manual document will also cover:
- Recommended ventilation
- Side and rear gap sizes for installing in your RV cavity
- Mounting
- Wiring
Depending on the model, there will also be information regarding; maintenance, cleaning, defrosting, energy saving tips, reversible doors, inserting new door panels and troubleshooting.
-
Does the fridge auto select between 12v/24v?
Hi - Yes it does!
Reviews
Dometic NRX 80c 75 Litre Fridge
By: Jon Smyth on14 November 2024
Great product. I am very confident that we have made the right choice in our camping fridge selection. Caravan RV camping were great! Best price, delivered promptly, no complaints whatsoever.
Happy owner
By: Khai Yip on4 October 2024
Upgraded from the Gecko 57 Litre fridge to the NRX 80C 75 Litre Fridge and it’s been awesome. It’s amazing how 22 litres of extra space could fit so much more, which I believe is due to the dimensional design of the NRX 80C as it fits majority of the supermarkets’ product packaging nicely, especially the crisp containers. Based on the past month’s usage, when the compressor kicks in, it draws around 3-4 amps on Eco mode at medium temp, which is what it’ advertises as. When compressor is off, it draws 0.6-0.8 amps, barely anything so super happy with this. The only improvement I’d like to see is to include the mounting frame at no extra cost (or at least reduce the price) as these fridges are usually installed in campervans/caravans, so it’s actually a necessity rather than an accessory. The freezer section could be a little deeper to fit some of the supermarkets’ larger packaging e.g. T-bone steak as currently you would have to remove the item and put in a container to fit in the freezer. Delivery time was 3 days (I’m based in Sydney) so was quick and the purchasing process was simple and easy. Overall, definitely recommend the product and Caravan RV Camping, which had the best price.
CRX80 Fridge
By: Elizabeth Cox on23 October 2023
Great Fridge, very quiet, roomy for a small fridge.
Fridge
By: Michael Keily on10 August 2023
Haven't fitted it yet but knowing your product it will be the best.
