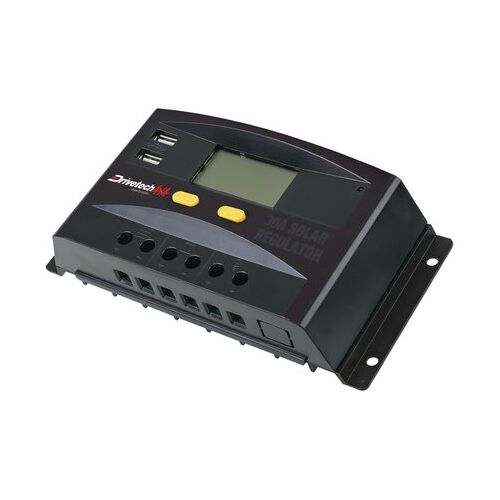

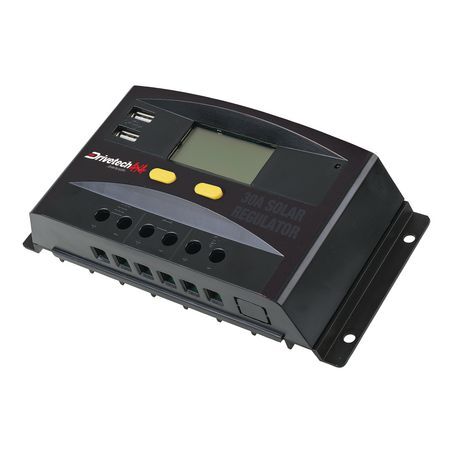

Drivetech 4x4 30A Solar Regulator

Description

Drivetech 4x4 30A Solar Regulator

Regulate the current flowing from the solar panel into the battery bank to avoid overcharging your batteries

Features:

• 12V/24V automatic detection for output
• LCD display
• Load control timer system can automatically turns loads on and off
• PWM three stage charging
• Overvoltage,short curcuit, overload, overcharge, over discharge protection funtions
• Accurate temperature compensation, correct charging and discharging voltage
• Input terminal positive and negative extreme reverse connection protection
• 50V open circuit panel voltage
• Waterproof PWM regulator and battery monitor
• Suitable for solar panels up to 360 watts

Specifications:

• Amperage: 30A
• USB Output: 5V 1A
• System Voltage: 12/24V
• Solar Open Circuit Voltage: 50V
• Standby Current: <13mA
• Low Voltage Disconnect (LVD): 10.7V (10-13.8V), 21.4V (20-27.6V)
• Low Voltage Reconnect (LVR): 12.6V (10.2-14V), 25.2V (20.4-28V)
• Floating Voltages: 13.8V (13-15V), 27.6V (26-30V)
• Battery Overcurrent Protection: 15V/30V
• Reverse Polarity: Yes
• Charge Style: Pulse Width Modulation (PWM)
• Tempreture Compensation: 24mw/°C, -48mw/°C, Relative to 12/24V systems
• Operating Temperature Range: 20°C to 55°C
• Input Terminal Size: 28-10AWG
• Environment Rating: IP32
• Product Size: 187 x 90 x47mm
• Packaging Size: 200 x 102 x 53mm
• Weight: 320g
