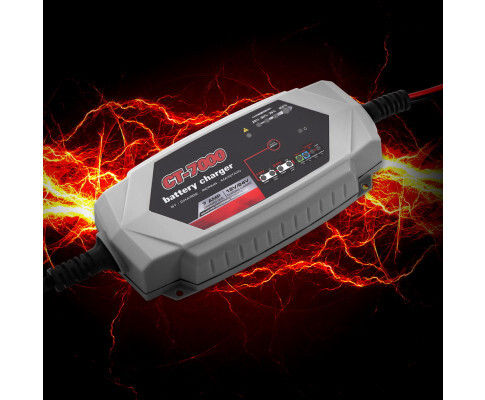

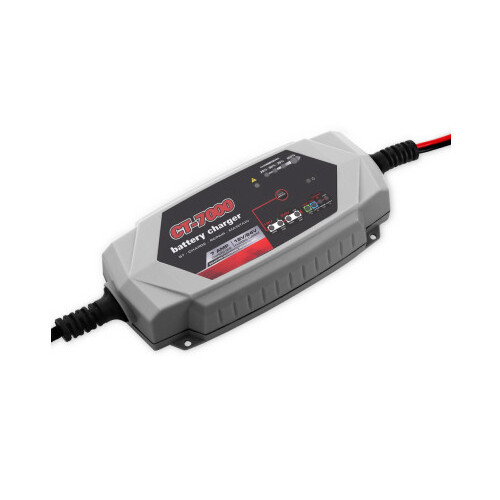

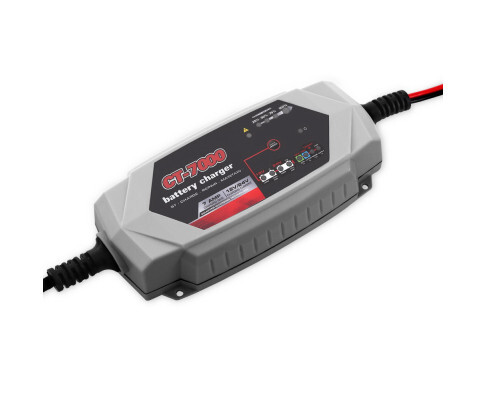

DZ 7A Smart Battery Charger

Description

DZ 7A Smart Battery Charger

Car cannot start? Pump not working? Engine conked out? And you realise that they all have a common problem. Flat battery. Now you can prepare for such unforeseen circumstances with our high-performance CT-7000, a powerful 7A Battery Charger that is compatible with all 12V and 24V lead-acid batteries (WET/MF/CA/EFB/GEL/AGM), 12V lithium-ion batteries and 12V AGM+ batteries. Fully automatic and easy to connect and use, the charger is your godsend in bringing life to dead batteries. The internal intelligent microprocessor makes charging faster, easier and safer. It provides continuous charge to batteries with an automatic floating charge mode and there is an inbuilt 6-way protection for sparks, reverse polarity, short circuits, overcurrent, overcharging and overheating to protect both use and battery. This means safe charging with total peace of mind. The charger comes with nine charging modes to suit your requirements. On SUPPLY mode, the charger becomes a secure 12V power source and can even be connected to vehicles to retain the on-board computer settings during battery repair or replacement. Portable and lightweight, the charger is equally useful to you on the road as it is in your workshop, garage or shed. If setting up in your workshop, you can easily mount the charger to your desired location using the mounting holes and included self-drilling screws. Never let your power down again as you power up with our battery charger.

Features:

• Independent selection mode for 12V/24V battery
• Built-in intelligent microprocessor
• 6-way protection: spark proof, reverse polarity, short circuit, overcurrent, overcharge, overheat

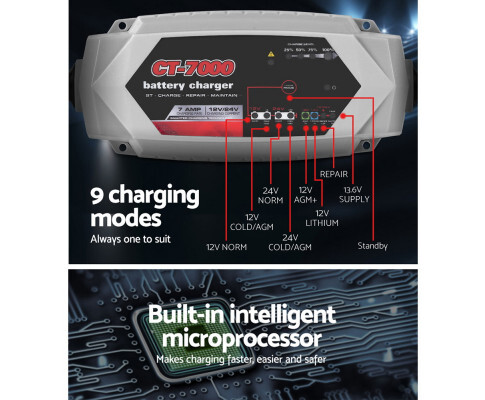

• 9 charging modes: Standby, 12V NORM, 12V COLD/AGM, 24V NORM, 24V COLD/AGM, 12V AGM+, 12V LITHIUM-ION, REPAIR, 13.6V SUPPLY
• REPAIR mode: repairing old, idle, stratified or sulphated batteries (LEAD-ACID batteries only)
• SUPPLY mode: can be used to retain a vehicle’s on-board computer settings during battery repair or replacement

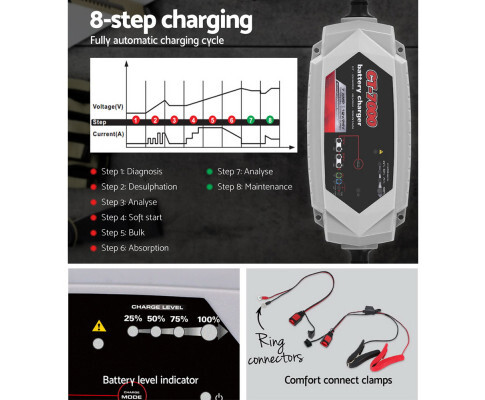

• 8 fully automatic charging steps
• Detailed error lights
• Battery level indicator
• Clamps and ring connectors
• Four external holes for mounting (screws included)
• Auto-memory: returns to last selected mode when restarted (except Standby Mode)
• Automatic switching to maintenance status once fully charged without overcharging or damaging battery
• Temperature controlled
• Lightweight and highly portable
• Tough and robust
• SAA & CE approved

Specifications:

• Model: CT-7000
• AC input: 220V-240V, 50Hz-60Hz, 1A,120W max
• DC output: 12V, 7A; 24V, 3.5A
• Ambient temperature: 0℃-40℃
• Charger type: 8 steps, fully automatic charging cycle
• Battery compatibility: All types of 12V and 24V lead-acid batteries, 12V AGM+ batteries and 12V lithium-ion batteries
• Battery capacity: 14Ah-230Ah (12V), 14Ah-115Ah (24V), Maintains All Battery Sizes
• Cold/AGM mode: YES
• Supply mode: YES, 13.6V/5A
• Housing protection: IP54

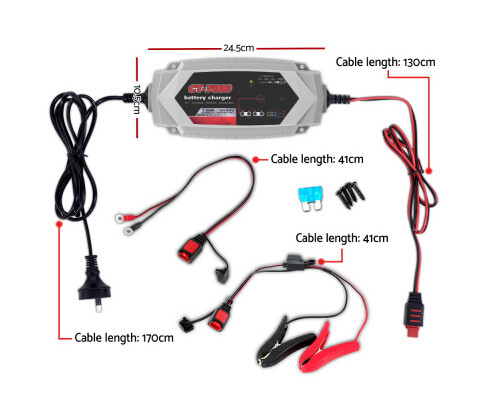

Package Contents:

• 1 x 7A Battery Charger
• 1 x User Manual
