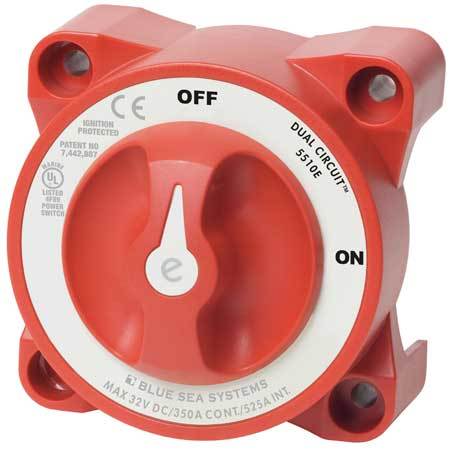

Blue Sea e-Series Dual Circuit Battery Switch
SKU: BS-5510EB Learn More»
Description
e-Series Dual Circuit Battery Switch
Simultaneously switches two isolated battery banks.
e-Series Dual Circuit Battery Switch
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
- Switch Type: Dual Circuit
- Color: Red
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 350A
- Intermittent Rating: 525A (5 min)
- Cranking Rating 10 Sec: 1000A
- Cranking Rating 1 min: 750A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4″ (M6) Screw
- Terminal Stud Size: 3/8″ – 16 (M12)
- Weight: 0.59 kg
