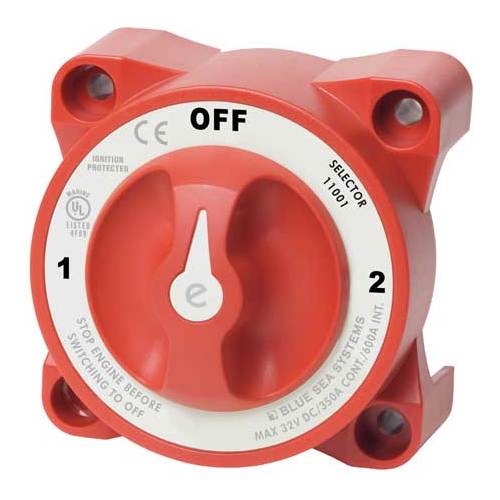

Blue Sea e-Series Selector 3 Position Battery Switch with AFD
SKU: BS-11001B Learn More»
Description
e-Series Selector 3 Position Battery Switch with AFD
Switches a single battery to a single load group
e-Series Selector 3 Position Battery Switch with AFD Line
- Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats

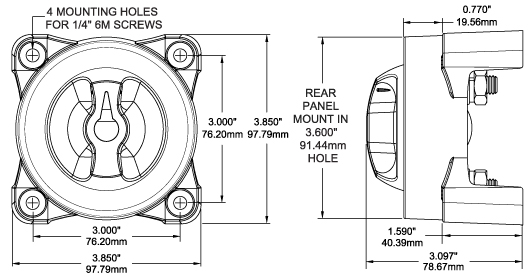

- Case design allows surface or rear panel mounting
Specifications
- Switch Type: Selector 3 Position
- Color: Red
- Switch Positions: 3
- Battery Combine: No
- Alternator Field Disconnect: Yes
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 350A
- Intermittent Rating: 600A (5 min)
- Cranking Rating 10 Sec: 2000A
- Cranking Rating 1 min: 1000A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4″ (M6) Screw
- Terminal Stud Size: 3/8″ – 16 (M12)
- Weight: 0.59 kg
Show More
Specifications
SKU BS-11001B
Brand Blue Sea
GTIN 9342616004593
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
