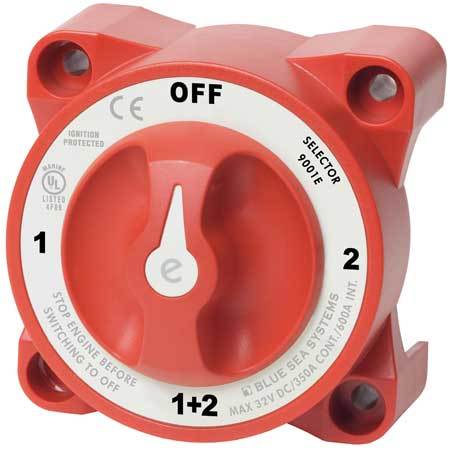

Blue Sea e-Series Selector Battery Switch

SKU: BS-9001EB Learn More»
$95
In Stock1-2 Days Dispatch

CALCULATE SHIPPING:

Description

e-Series Selector Battery Switch

Switches isolated battery banks to all loads or combines battery banks to all loads.



e-Series Selector Battery Switch

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting



Specifications

  • Switch Type: Selector 4 Position
  • Color: Red
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 350A
  • Intermittent Rating: 600A (5 min)
  • Cranking Rating 10 Sec: 2000A
  • Cranking Rating 1 min: 1000A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
  • Mounting Holes: Accept 1/4″ (M6) Screw
  • Terminal Stud Size: 3/8″ – 16 (M12)
  • Weight: 0.59 kg



Show More

Specifications

SKU BS-9001EB

Brand Blue Sea

GTIN 9342616014431

Product Category Electrical Accessories


NOTE: see full product specifications & further product info in the section on this page.
