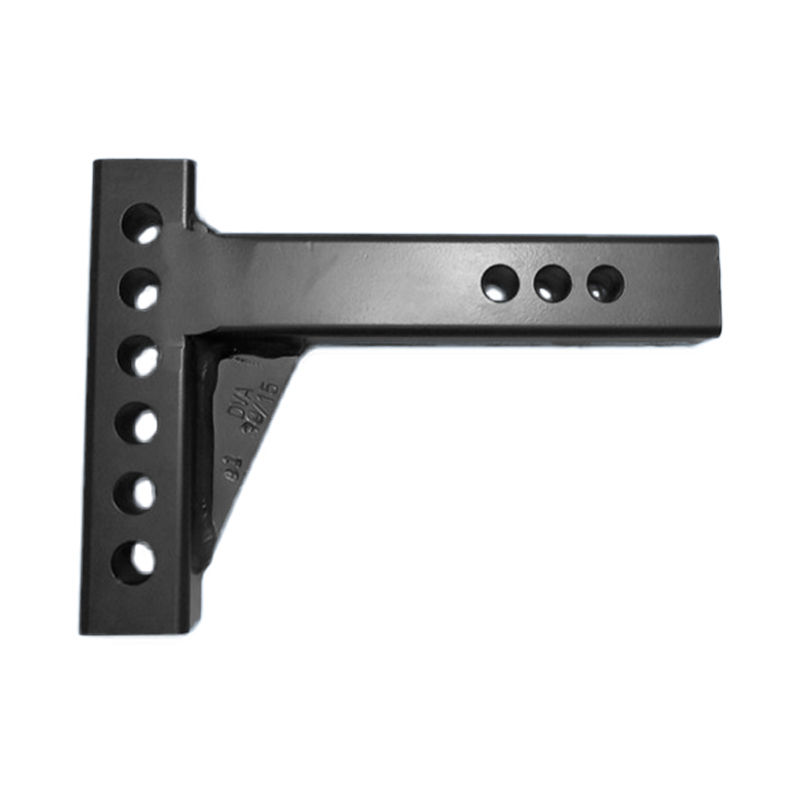

Eazlift Shank Solid Adj Hi-Low 3Holes 2"x12"L. 48154

Description

Eazlift Shank Solid Adj Hi-Low 3Holes 2"x12"L. 48154

An add-on purchase for your Eaz Lift weight distribution hitch, this high-low shank can be used to either raise or drop the tow ball height to match the height of the coupler and has variable postioning along the shank for added clearance behind the vehicle. It fits the standard 2” x 2” receiver, and can be used to tailor your caravan or camper trailer setup to suit a variety of vehicle heights and installation scenarios.

It offers a choice of six different heights for the tow ball mount, and three different length positions along the shank. The shank has an overall length of 12 inches (305mm) and its multiple retaining pin holes along the shank provide a clearance of 95mm,115mm or 145mm out from the centre of your tow bar receiver retaining pin hole. The Eaz Lift Extra high-low shank positioned 'turned down' offers top of the tow ball height positioning of +40 to +135mm and 'turned up' a rise of between +1355mm to +225mm in relation to the height of the receiver pin hole centre line. If your tow ball receiver to coupling heights do not fall with in this range, then an alternative shank may be required. Note: This is the most commonly used shank to suit most conventional setups.

This shank is fashioned in high quality materials and features precise and consistent workmanship. It is accompanied by the quality assurance characteristic of all products from the Eaz Lift towing selection by Camco, an industry leader in high quality caravanning and towing equipment and supplies. Please measure the height difference between your tow ball receiver retaining pin hole and the highest point inside the coupler, in order to purchase the shank most appropriate for your towing setup.

Features

• Suitable for all Eaz Lift weight distribution hitches
• Raises or lowers the height of the tow ball to match the height of the coupler
• Offers a tow ball height of +40 to +135mm or +135mm to +225mm in relation to your reciver pin hole centre line.
• Offers six different mounting heights
• Offers a generous clearance of 95mm,115mm and 145mmmm, thanks to its multi hole design with an overall length of 12 inches (305mm)
• Compatible with standard 2” x 2” receivers
• High quality product, featuring superior grade materials and workmanship

Specifications

• Fits 2" x 2" receiver. (50mm x 50mm)
• The retaining pin holes provide 95mm, 115mm or 145mm clearance
• Tow Ball mount centreline height difference when Low mounted: + 40mm lift to +135mm lift
• Tow Ball mount centreline height difference when High mounted: + 135mm lift to + 225mm lift
• 12" (305mm) Shank refers to overall length 10" + 2".

Paul's Tips

• If the height difference between your receiver pin hole and the highest point inside your coupling is not between +40mm and +225mm (which is generally more common) then an EXTRA hi-low shank may be required. SKU: 350-05724
• Please measure the height difference between your tow ball receiver retaining pin hole and the highest point inside the coupler, in order to purchase the shank most appropriate for your towing setup.
