Eberspacher Airtronic AS3 D2L Diesel Air Heater Bundle with 10 L Diesel Fuel Tank
SKU: KIT-AS3-10LTRTB Learn More»
AS3 D2L SINGLE 12V E/PRO
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Eberspacher Airtronic AS3 D2L Diesel Air Heater Bundle with 10 Litre Diesel Fuel Tank
Bundle includes:
- Eberspacher Airtronic AS3 D2L Diesel Air Heater Kit, 12Volt, Single Outlet with ePro - 29.2113.00.0019
- Eberspacher 10L Diesel Tank - 002000019-OF

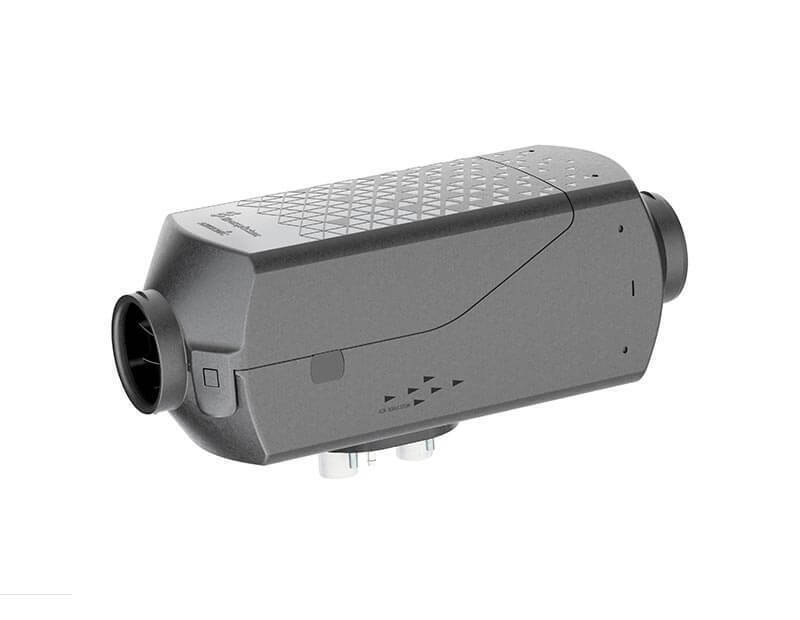

The Eberspacher Airtronic 3 is a third-generation diesel air heater for commercial and consumer applications that can be installed in boats, trucks, agricultural and contracting equipment, and recreational vehicles.
Eberspächer has completely revolutionised this product family to provide a unique combination of high heating performance and compact design. The Airtronic 3 features quiet operation, automatic altitude adjustment up to 5,500 m and flexible installation options, making it the ideal choice for any vehicle.
The Eberspächer EasyStart Pro and EasyStart Web control units offer convenient and user-friendly operation of this Airtronic diesel heater. Compatible with all other control units, the Airtronic 3 is the perfect choice for those who want a heating system that is easy to use and operate.
Boasting a new combustion chamber concept, a new casing design, and many other features and enhancements from previous generations, the Airtronic 3 offers customers the latest and greatest in diesel air heating technology.
The ideal choice for anyone looking for a high-performance, compact, and quiet diesel air heater, try the Eberspacher Airtronic 3 today and see for yourself why it is one of the best diesel heaters on the market.
Heater Kit includes:
- 1 x Air Tronic D2L AS3 Diesel Heater & mounting plate
- 1 x Fuel metering pump including pump holder
- 1 x 6 meters of fuel line
- 1 x Easystart Pro Controller
- 1 x wiring harness (plug & play) & 6m twin core power supply cable.
- 1 x 2 meters stainless exhaust & exhaust silencer
- 1 x 0.5 meter air intake tube
- 2 x 60mm vent flange & flat vent cover
- 1 x 2 meters 60mm ducting
- 1 x miscellany, screws & washers,clamps,p-clips,zip ties, fuel line joiners, warranty card including, QR code for digital manual.
Features:
- Fully electronic microprocessor control
- Continuous monitoring
- Power stage to cut heating times
- Smooth automatic room temperature control with a temperature pre-set facility
- Low fuel and power consumption, suitable for longer periods of operation
- More comfort thanks to wide control range and quiet night-time operation
- Diagnostic system
Advantages:
- High heating power, yet compact design
- Automatic altitude adjustment up to 5,500 m*
- Flexible installation with 90° tilt possible to either
- side
- New S3 gasoline heater for camping vehicles
- Stepless heating performance control ensures quiet
- operation
Additional Features
- Patented housing design for improved plagiarism protection
- Lifetime of up to 5,000 operating hours due to brushless motor
- Backward compatibility through carry-over connections
- Sensor-controlled, optimized start-up sequences through measurement of environmental parameters
- Optimized heat air flow due to improved heat
- exchanger
- Maximum control with EasyStart Pro and EasyStart Web
- Compatibility with all other control units
- Diagnostics and parameter assignment via EasyScan
- Can also be integrated into on-board systems via CAN
- (12/24V), LIN (12V), S+(12/24V) interfaces
The compact 10 Litre Diesel Fuel tank is suitable for the use with RV Airtronic Diesel Heaters. This diesel tank is required when you aren't able to connect your diesel heater directly to your vehicle diesel fuel tank.
It has an screw cap opening at the top, plus the outlet to allow the tank to be placed in either direction, complete with 3 bolting points to avoid spillage (essential when going off-road).
Additional tank for fuels or other liquids, robust and convenient; it is normally used to power diesel or petrol vehicle heating system independentyly of the vehicle engine supply line
The tank is attached to a vertical wall (typically the outer wall of a cabin or passenger compartment) via the three holes on the back. The installation can take place by protruding the loading nozzle to the right or left, indifferently; for this purpose, the tank is equipped with two interchangeable fittings. The tank is built of high-density polythylene (HDPE). The gasket on the fittings are made of Viton, the sealing gasket of the filling cap is made of NBR. In both versions, a nylon filter is installed on the liquid outlet fitting or faucet.
.png)
Specifications
SKU KIT-AS3-10LTRTB
Brand Eberspacher
Product Category RV Heaters and Hot Water
Voltage 12V
-Weight 2.5kg
Dimensions (D x H x W) 310 x 122 x 155 mm
Fuel Type Diesel
Heating Capacity (W) Max 2200 - Min 850
Fuel Consumption (Litres/hour) Max. 0.27 - Min. 0.1
Heating Capacity (kW) 2.2
Fual Tank Dimensions 410 x 410 x 80 mm
Fuel Tank Capacity (L) 10
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can I install my diesel heater under the bed?
Yes, you can. Just note that there will be some noise due to the intake of the heater as well as a ticking sound from the fuel pump. Therefore, it is probably best to install the heater away from the bedroom.
-
How does the size of the area to be heated affect which diesel heater to purchase?
A larger area might require a twin outlet or a more powerful heater.
- A 2kW diesel heater will be sufficient for a vehicle around 4-6 metres
- If the layout affect the heat flow or the area is a bit larger, a twin outlet is recommended
- With a large motorhome or fifth wheeler, it is best to opt for a 4kW diesel heater
-
Does the diesel heater come with a fuel tank?
No, a fuel tank is not included with the purchase of a diesel heater. You will need to add a fuel tank to your order. However, if the vehicle runs on diesel, you will be able to plumb into the vehicle's fuel tank.
-
Can I use biodiesel or kerosene to fuel the diesel heater?
No, it is recommended that you only use high grade diesel, and not biodiesel or kerosene.
-
What is the difference between the rotary and digital controllers for diesel heaters?
- Rotary controllers do not have a thermostat and consist of a dial that is based on feel and you will need to turn it up or down until you are satisfied with the temperature. The heat will remain constant once set to a specific dial position.
- Digital controllers have a thermostat and you are able to digitally select a temperature. These controllers also have a timer that can be set if you only want to run the heater for a certain amount of time.
- It is recommended the digital controller be installed at waist height as a result of heat rising. It will reach its temperature too soon if installed too high or will have to work too hard if the thermostat is too low.
-
Should I buy a gas or diesel heater?
It depends on your personal requirements. Please see the pros and cons of both below:
Gas
- Pros
- Most caravans already have gas appliances so adding a gas heater is relatively straightforward
- Purchase cost is lower than a diesel heater
- Noise is lower than diesel heater
- Cons
- A number of regulatory requirements apply for installation: a gas heater flue cannot be installed too close to a window, door or other gas appliance inlet or outlet, or under an enclosed annex
- A licensed gas fitter is required to connect the gas heater and provide a compliance certificate
- In temperatures of two degrees and under, the heater won�t function
- Produces a wet heat resulting in unwanted humidity and condensation
Diesel
- Pros
- You don�t need a licence for installation
- Superior heating performance compared to a gas heater
- Produces a clean dry heat as opposed to the wet heat produced by a gas heater
- Cons
- More expensive to buy than a gas heater
- Generally noisier than a gas heater
- You need a clear space below the heater for the exhaust
- Extra diesel tank needed
- Pros
Reviews
Eberspacher diesel heater
By: John Henshall on31 May 2024
Purchase, delivery and pack aging were all very easy and efficient. The printed instructions were very minimal and the dvd instructions wouldn’t play on my TV/dvd equipment , but after watching some tripinavan YouTube tutorials I worked it out.if you’re not experienced with using hand tools and savvy about brackets and mounting hardware then you might need to hav the unit fitted by a professional. All the parts were well made, the fuel pump is probably the star of the show, it’s super quiet and once connected up to the controller it is self maintained.and will shut down if overheating occurs or if the full runs out, Care must be taken to assemble the fuel lines and mount the pump facing 30 degrees upwards so no bubbles form, and to position the intake and hot air tubes in a safe position, I also purchased the 10 litre fuel tank and chose to mount it inside the front storage box on my van to allow it to be locked and out of sight and protected from stone damage and dust. The heater control unit is easy to use and very intuitive. . If possible, mount the unit under your bed and face the warm air outlet directly towards the rear of your living space, then the warm air will fill your van and finally make it’s way back to your bedside controller which is also the temperature reader. Make sure there’s no chance that anything can move or obstruct the unit under the bed, I built a devider to isolate the unit from any bedding/clothes that gets stored under there. Its a great product and well built. It runs for weeks on 20 litres and heats a 21 foot van easily. It’s five times more expensive than some Chinese made heaters, something to consider. I’m very satisfied with this diesel heater.
