EcoFlow 160W Monocrystalline Folding Solar Blanket
SKU: EFSOLAR160W Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
.png)
Description

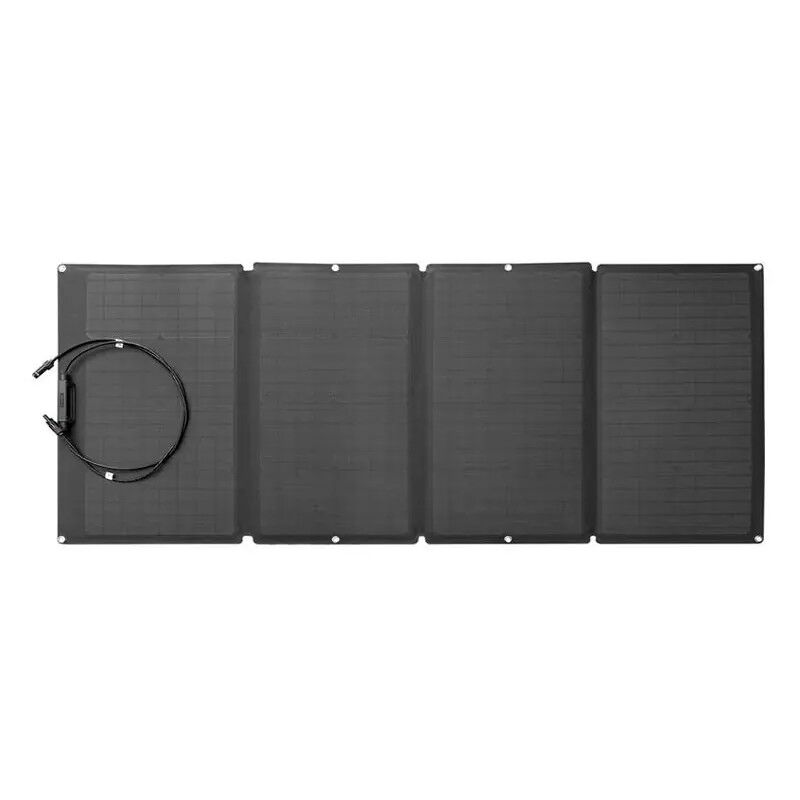

EcoFlow 160W Monocrystalline Folding Solar Blanket
This 160W panel is designed to be connected with compatible EcoFlow Power Stations:
- EcoFlow River600 Portable Power Station (24Ah@12V) - EFRIVER600
- EcoFlow River600 PRO Portable Power Station (60Ah@12V) - EFRIVERPRO
- EcoFlow DELTA Portable Power Station (105Ah@12V) - EFDELTA13
- EcoFlow DELTA MAX 2000 Portable Power Station (168Ah@12V) - EFDELTAMAX
- EcoFlow River 2 PRO Portable Power Station (64Ah@12V - EFRIVER2PRO
Please note that the open circuit voltage (VOC) for this panel is 21.4V. If you are planning on connecting this solar panel to a standard battery via a regulator, please take the high voltage into consideration.
The EcoFlow 160W solar panel is portable, foldable, and compact, weighing 5.6kg. From camping to outdoor activities, unfold the solar panel and start capturing solar power in seconds.
Portable & Foldable: The EcoFlow 160W Solar Panel is portable, foldable, and compact, weighing just 5.6kg. From camping to outdoor activities, unfold the solar panel and start capturing solar power in seconds.
Intelligent Solar Power: The EcoFlow 160W Solar Panel is designed to produce maximum power at any time of the day when paired with an EcoFlow power station. The solar panel has a high conversion efficiency up to 25%, and the EcoFlow MPPT power station algorithm delivers improved performance in cold and cloudy environments within the operation range.
Integrated Solar Guide: The solar panel includes an integrated solar guide designed to assist in aligning it with the sunlight for optimal energy production.
Durable, Dust & Water Resistant: The EcoFlow 160W Solar Panel has IP68 rated dust and water resistance, which is thanks to a seamless, one-piece design, making it ideal for outdoor activities like camping and hiking. An ETFE film provides extra protection against ultraviolet light, prolonging the lifespan of the product.
Kickstand Case: Provides protection for the solar panel during transportation. The carrying case also doubles up as a kickstand, which enables you to position the solar power in any direction or orientation, allowing multiple solar panels to be connected together without any obstructions.
Specifications:
- Product Weight: 5.6kg
- Product Unfolded Dimensions (L x W x H): 60 × 16.1 × 2.5 cm
- Product Folded Dimensions(L x W x H): 60 × 57.2 × 3.2 cm
- Rated Power: 160W (±5W)*
- Efficiency: 25%
- Connector Type: MC4
- Open Circuit Voltage: 21.3V (Vmp 18.6V)
- Short Circuit Current: 9.1A (Imp 8.6A)
- Cell Type: TOPCon monocrystalline silicon
- Operating & Storage Temperature: -20°C - 85°C
- Waterproof IP Ratings: IP68
- * Rated Power is tested under Standard Test Conditions: 1000W/m2, AM1.5, 25°C
What's in the box:
- 160W Portable Solar Panel
- Solar to XT60i Charging Cable
- 160W Portable Solar Panel Bag
- Quick Start Guide, Safety Instructions and Warranty Card
Specifications
SKU EFSOLAR160W
Brand EcoFlow
GTIN 4895251615006
Product Category Solar Panels
Watts (W) 160
Solar Panel Cell Type Monocrystalline
Solar Panel Type Solar Blanket
Dimensions (open) 600 x 161 x 25mm
Dimensions (closed) 600 x 572 x 32mm
Weight (kg) 5.6
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
How do I get the most solar power?
Increase the efficiency of your solar panel by facing it directly at the sun without any obstructions. Remember to be careful when handling your solar panel because damaged cells provide less power.
-
Does it charge if it's inside?
Yes, if the only thing between it and the sun is transparent, but it won’t charge as well compared to being outside. You can compare the difference by looking at the input section of your power station’s LCD screen.
-
Can I charge my regular deep cycle battery with the EcoFlow 160W solar blanket?:
You can use this solar panel to connect to other regular deep cycle batteries. You will need to ensure you have a solar regulator that can accept VOC (open circuit Volatge) and Max Current of the 160W panel. Voc(V) 21.4V Max Current 9.6A.
This 160W panel is compatible with EcoFlow Power Stations:
- EcoFlow DELTA
- EcoFlow DELTA Max
- EcoFlow DELTA Mini
- EcoFlow River
- EcoFlow River Max
- EcoFlow River Mini
These power stations all have a built in solar regulator, so the connection is plug and play.
