Enerdrive 150W Squat Solar Panel with Installation Kit
SKU: K-SOLAR-150SQ-KIT Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Enerdrive 150W Squat Solar Panel with Installation Kit
Pack Includes:
- Enerdrive 150W Mono Crystalline Squat Fixed Solar Panel - SP-EN150SQ
- Enerdrive ePOWER PWM 30A Solar Charge Controller - EN43030

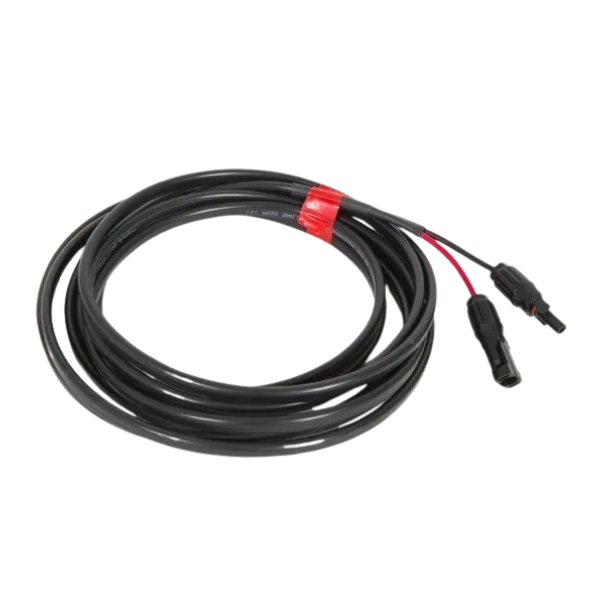

- Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs - SP-SC10
- Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp - EN-RCB30
- Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth x4 - 4 x EN-LUG-6-8
Enerdrive 150W Mono Crystalline Squat Fixed Solar Panel
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
Some Basic Tips:
- Keep your panel in direct sunlight as much as possible.
- Secure your Folding Solar Kit from theft around your work or campsite.
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Specifications:
- Max Power Pm(W): 150
- Power Tolerance %: ± 3%
- Max Power Voltage Vm(V): 18.5
- Max Power Current Im(A): 8.11
- Open Circuit Voltage Voc(V): 22.5
- Short Circuit Current Isc(A): 8.8
- Max System Voltage (VDC): 1000
- Dimensions (mm): 1210 x 808 x 35
- Weight (kg): 11.5
- Test Conditions: 1000W/m² , AM1.5 , 25°C
Enerdrive ePOWER PWM 30A Solar Charge Controller
For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.
Specifications:
- Amps 30.0
- Operating Temperature Range -25ËšC+55ËšC | -20ËšC+70ËšC (LCD)
- Humidity 95% N.C
- Output 5VDC/2.4A (USB, Total)
- Open Circuit Voltage 12V - 25 VOC / 24V - 50 VOC
- Enclosure Class IP30
- Nominal Voltage 12/24 VDC
- Charge Voltage Absorption Sealed 14.4V / Gel 14.2V / Flooded 14.6V
- Charge Voltage Float 13.8V (Sealed / Gel / Flooded)
- Input Voltage 9V - 32V
- Warranty 5 Years
Features:
- Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
- Selectable battery type Sealed, Flooded & Gel
- 2 x USB Outputs 2.4A
- Full output operation up to 55oC
- Temperature compensation
- High precision on voltage set point
- Wall mountable
- Protects battery from overcharge and discharge
- 12/24V auto detect
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12/24V batteries in a fully charged state
Specifications
SKU K-SOLAR-150SQ-KIT
Brand Enerdrive
GTIN 9342616028131
Product Category Solar Bundles
Watts (W) 150
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 11.5 Kg
Dimensions 1210 x 808 x 35 mm
NOTE: see full product specifications & further product info in the Description section on this page.
