Enerdrive 190W Solar Panel with Installation Kit

Description

Enerdrive 190W Solar Panel with Installation Kit

Pack Includes:

• Enerdrive 190W Fixed Solar Panel - SP-EN190W
• Enerdrive ePOWER PWM 30A Solar Charge Controller - EN43030

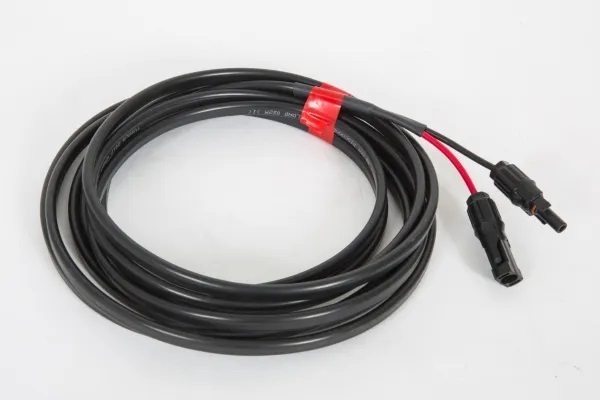

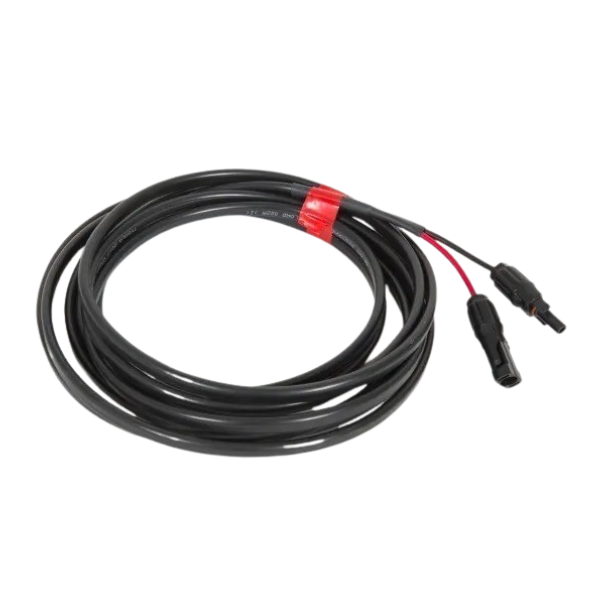

• Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs - SP-SC10
• Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp - EN-RCB30
• Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth x4 - 4 x ENC-LUG-6-8

Please Note; This Enerdrive bundle used include a SP-EN180W. Enerdrive have upgrade this to the SP-EN190W.

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Some Basic Tips:

1. Keep your panel in direct sunlight as much as possible
2. Secure your Folding Solar Kit from theft around your work or campsite
3. Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage

Specifications:

• Maximum Power(Pmax): 190W
• Optimum Operating Voltage(Vmp): 19.80V
• Optimum Operating Current(Imp): 9.10A
• Open Circuit Voltage(Voc): 24.10V
• Short Circuit Current(Isc): 9.85A
• Module Efficiency: 17.86%
• Operating Module Temperature: 40oC to +85oC
• Maximum System Voltage: 1000V DC (IEC)
• Power Tolerance: 0~+5W
•  STC: lrradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used

Enerdrive ePOWER PWM 30A Solar Charge Controller

For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.

Specifications:

• Amps 30.0
• Operating Temperature Range -25˚C+55˚C | -20˚C+70˚C (LCD)
• Humidity 95% N.C
• Output 5VDC/2.4A (USB, Total)
• Open Circuit Voltage 12V - 25 VOC / 24V - 50 VOC
• Enclosure Class IP30
• Nominal Voltage 12/24 VDC
• Charge Voltage Absorption Sealed 14.4V / Gel 14.2V / Flooded 14.6V
• Charge Voltage Float 13.8V (Sealed / Gel / Flooded)
• Input Voltage 9V - 32V
• Warranty 5 Years

Features:

• Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
• Selectable battery type Sealed, Flooded & Gel
• 2 x USB Outputs 2.4A
• Full output operation up to 55oC
• Temperature compensation
• High precision on voltage set point
• Wall mountable
• Protects battery from overcharge and discharge
• 12/24V auto detect
• Handles up to 30 Amps of Array Current
• Handles up to 450 Watts of solar power
• Maintenance free protection of your solar panel and batteries
• Maintains battery voltage
• Maintain 12/24V batteries in a fully charged state

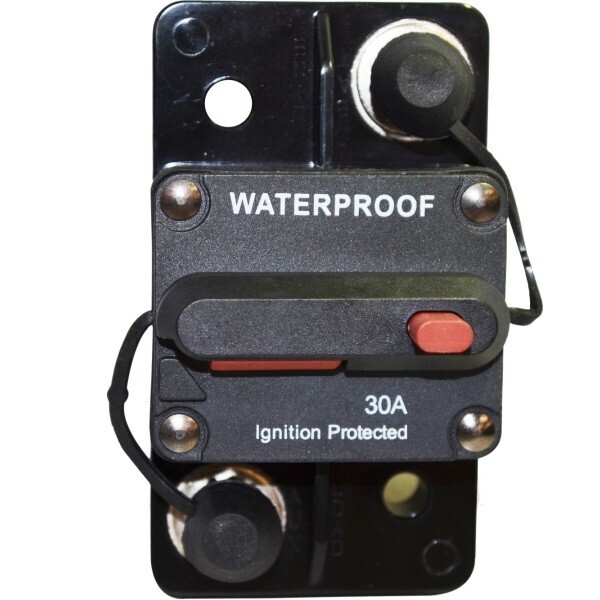

Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp

Enerdrive have released an affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect. Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Specifications:

• Storage Temperature Range -34°C to 149°C
• Operating Temperature Range -32°C to 82°C
• Weight 0.1 kg
• Voltage Up to 48VDC
• Amps 30

Note: Please check the Enerdrive Battery Charger Manual for the recommended Breaker & Cable sizing.
