Enerdrive 2 x 150W Squat Solar Panel with Installation Kit
SKU: K-SOLAR-300SQ-KIT Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Enerdrive 2 x 150W Squat Solar Panel with Installation Kit
Pack Includes:
- Enerdrive 150W Mono Crystalline Squat Fixed Solar Panel - 2 x SP-EN150SQ
- Enerdrive ePOWER PWM 30A Solar Charge Controller - EN43030

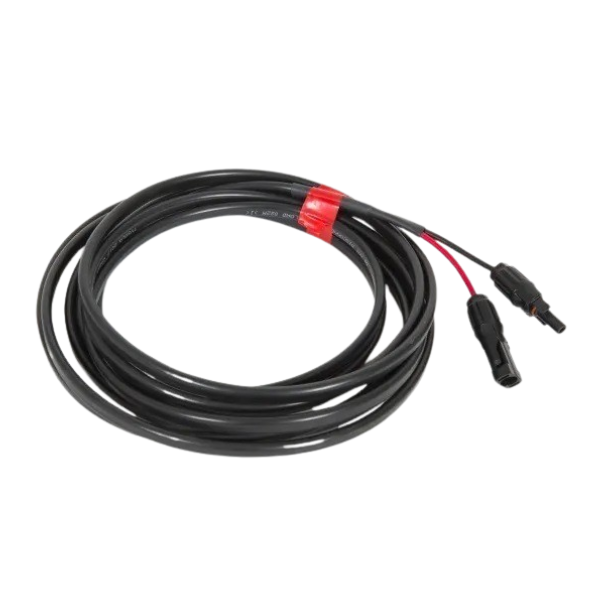

- Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs - SP-SC10
- Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp - EN-RCB30
- Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth x4 - 4 x EN-LUG-6-8
Enerdrive 2 x 150W Mono Crystalline Squat Fixed Solar Panel
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
Some Basic Tips:
- Keep your panel in direct sunlight as much as possible.
- Secure your Folding Solar Kit from theft around your work or campsite.
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Specifications:
- Max Power Pm(W): 150
- Power Tolerance %: ± 3%
- Max Power Voltage Vm(V): 18.5
- Max Power Current Im(A): 8.11
- Open Circuit Voltage Voc(V): 22.5
- Short Circuit Current Isc(A): 8.8
- Max System Voltage (VDC): 1000
- Dimensions (mm): 1210 x 808 x 35
- Weight (kg): 11.5
- Test Conditions: 1000W/m² , AM1.5 , 25°C
.png)
Specifications
SKU K-SOLAR-300SQ-KIT
Brand Enerdrive
GTIN 9342616028155
Product Category Solar Bundles
Watts (W) 300
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
Dimensions 1210 x 808 x 35 mm
Weight (kg) 23 Kg
