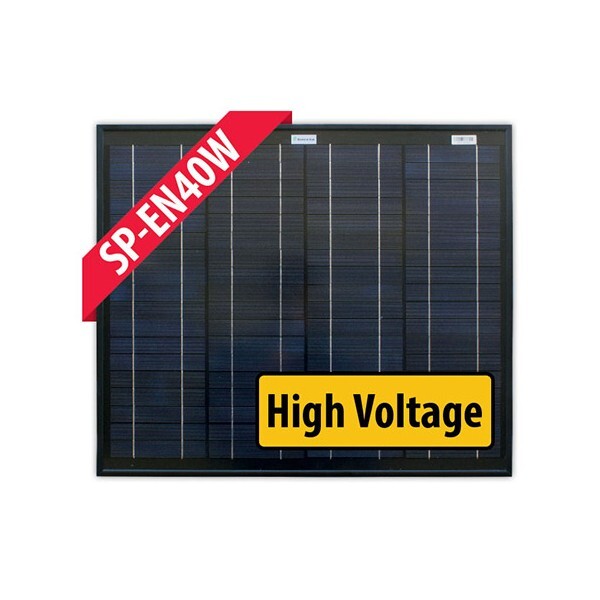

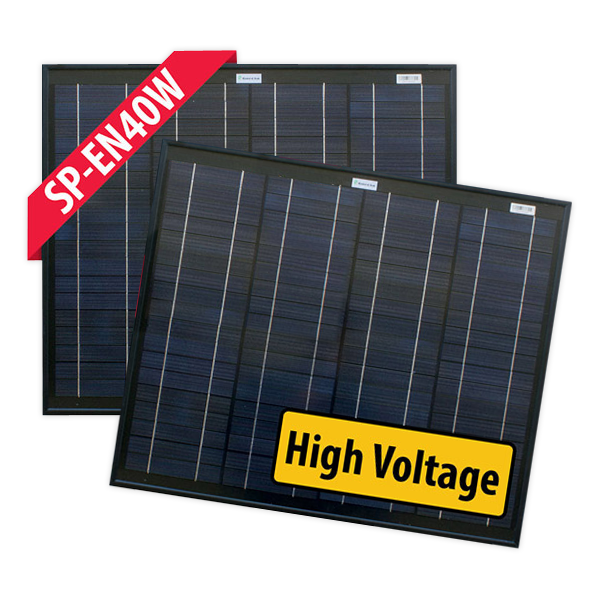

Enerdrive 2 x 40W 24V Fixed Solar Panel Twin Pack
SKU: SP-EN40W-24V-TWIN-PACK Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Enerdrive 2 x 40W 24V Fixed Solar Panel Twin Pack
567 x 670 x 35 mm
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
Some Basic Tips:
- Keep your panel in direct sunlight as much as possible
- Secure your Folding Solar Kit from theft around your work or campsite
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Specifications:
- Max Power Pm(W) 40 (Solar Panel)
- Power Tolerance 0% ∼ 3%
- Max Power Voltage Vm(V) 35.5
- Max Power Current Im(A) 1.13
- Open Circuit Voltage Voc(V) 43.1
- Short Circuit Current Isc(A) 1.85
- Max System Voltage (VDC) 1000
- Weight (kg) 4.6 (per Solar Panel)
- Test Conditions 1000W/m² , AM1.5 , 25°C
*Note: the SP-EN40W is suitable for Charging 24V Battery System when using a PWM Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
Specifications
SKU SP-EN40W-24V-TWIN-PACK
Brand Enerdrive
Product Category Solar Panels
Watts (W) 40
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 9.8 Kg
Dimensions 670 x 567 x 35 mm
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
Be The First To Review This Product!
Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
