Enerdrive 2 x 190W Fixed Solar Panel Black, Twin Pack
SKU: SP-EN190W-B-TWIN-PACK Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

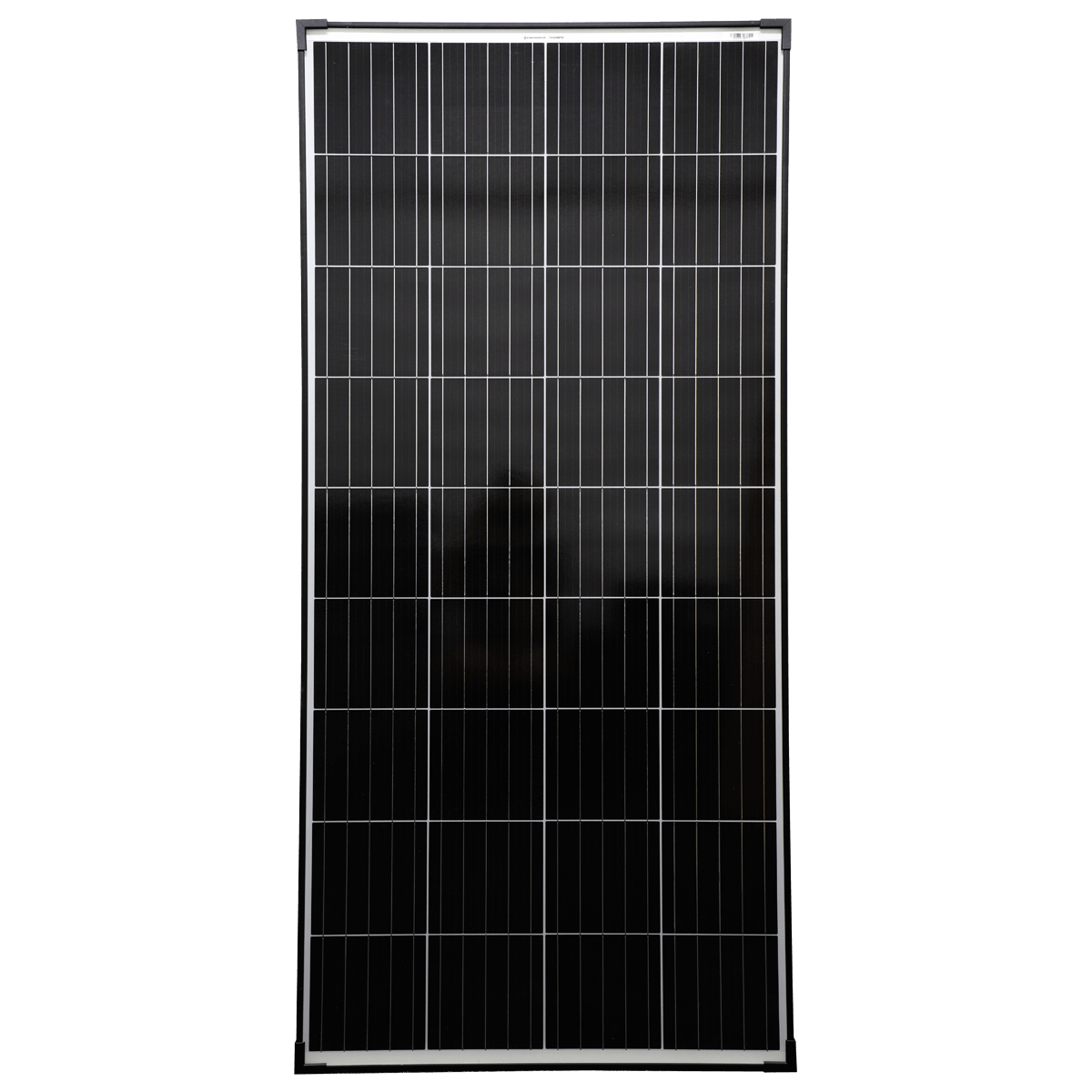

Enerdrive 2 x 190W Fixed Solar Panel Black, Twin Pack
1500 x 680 x 35 mm
Enerdrive is an Australian company that provide quality power solutions for caravan, camping and boating applications both domestic and commercial. This Solar Panel Twin pack of 2 x 190W solar panels comes in at a amazing price for a quality fixed solar panels with a grand total of 360W.
These solar panels come with a 5 year warranty. You will have peace of mind that you are buying a quality product with nation wide service agent support.
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Feature:
- High Conversion Efficiency. Module efficiency up to 17.86% achieved through advanced cell technology and manufacturing capabilities
- Positive Tolerance. Positive tolerance of up to 0~+5W delivers higher output reliability
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors
Some Basic Tips:
- Keep your panel in direct sunlight as much as possible
- Secure your Folding Solar Kit from theft around your work or campsite
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Specifications:
- Max Power Pm(W) 190 each
- Power Tolerance -1% - ±3%
- Max Power Voltage Vm(V) 19.3
- Max Power Current Im(A) 9.33
- Open Circuit Voltage Voc(V) 24.2
- Short Circuit Current Isc(A) 9.98
- Max System Voltage (VDC) 1000
- Weight (kg) 11.7000
- Test Conditions 1000W/m² , AM1.5 , 25°C
- Warranty 5 Years
Specifications
SKU SP-EN190W-B-TWIN-PACK
Brand Enerdrive
Product Category Solar Panels
Watts (W) 380
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 12kg each
Dimensions 1500 x 680 x 35 mm
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What are the lengths of the cables coming off the junction box?
These cables are 900mm long.
-
How many of these panels can I run in parallel through my Enerdrive 40a DC2DC?
You can run up to 4x of these panels in parallel.
-
Does this panel have any connectors on the cables?
Yes, it will have MC4 connectors.
-
What is the recommended solar controller for these panels?
Reviews
Enerdrive Fixed Solar Panels
By: Joel Peet on5 September 2024
Arrived in great time and are exactly as described. My auto electricial fitted these to the top of my caravan and had no issues at all.
