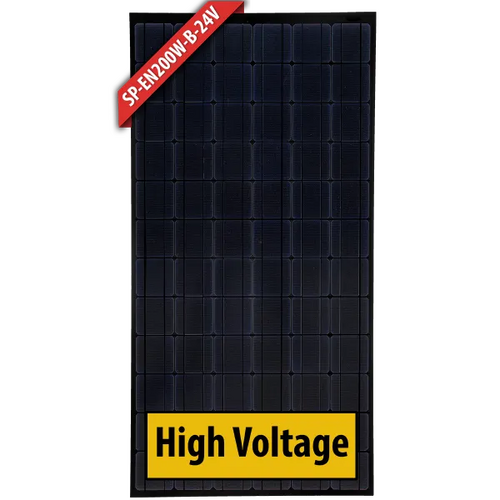

Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black
SKU: SP-EN200W-B-24V Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black
1580 x 808 x 40mm
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Key Features:
- High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.
Specifications:
- Max Power Pm(W) 200
- Power Tolerance -1% ~ + 3%
- Max Power Voltage Vm(V) 37.3
- Max Power Current Im(A) 5.37
- Open Circuit Voltage Voc(V) 43.7
- Short Circuit Current Isc(A) 6.05
- Max System Voltage (VDC) 1000
- Weight (kg) 15
- Test Conditions 1000W/m² , AM1.5 , 25°C
.png)
PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
Specifications
SKU SP-EN200W-B-24V
Brand Enerdrive
GTIN 9342616020340
Product Category Solar Panels
Watts (W) 200
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 15 kg
Dimensions 808 x 1580 x 40 mm
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What’s the advantage of the 2 x 24 Volt 200 watt solar panels that can be used with the MPPT controller for my 12 volt battery system as opposed to the 2 x 12v 180 watt solar panels that are cheaper?
The 24V panels have a slight advantage in low light conditions, ie early morning and late arvo (a few amp hours extra charge per day) You will also have 80W more in total (800W vs 720W).
Reviews
Be The First To Review This Product!
Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
